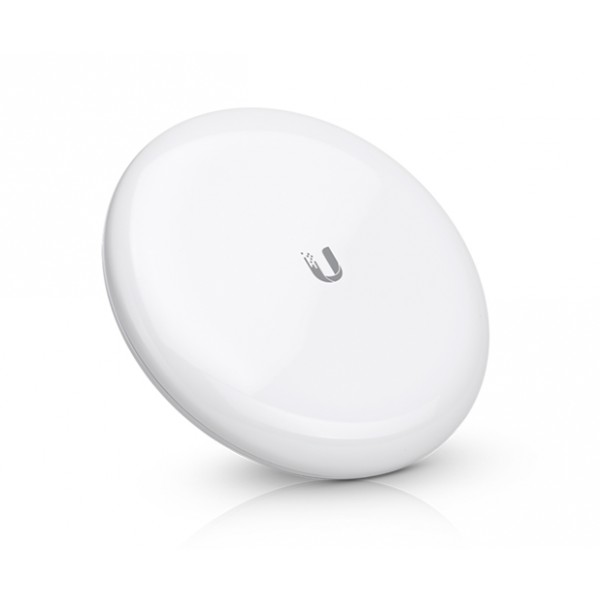

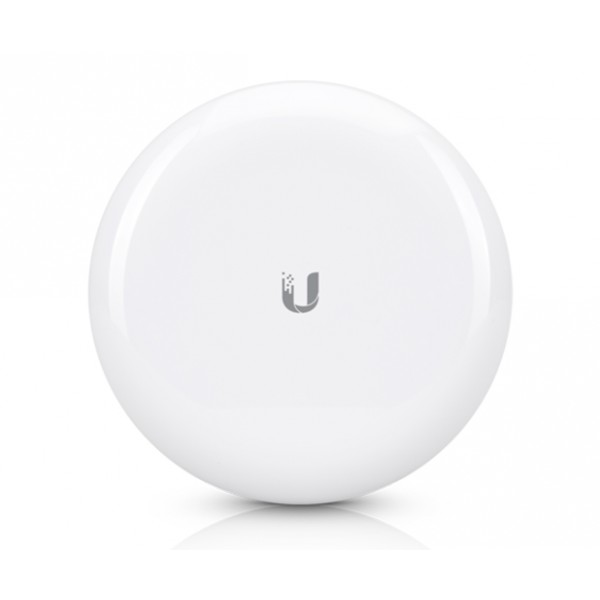

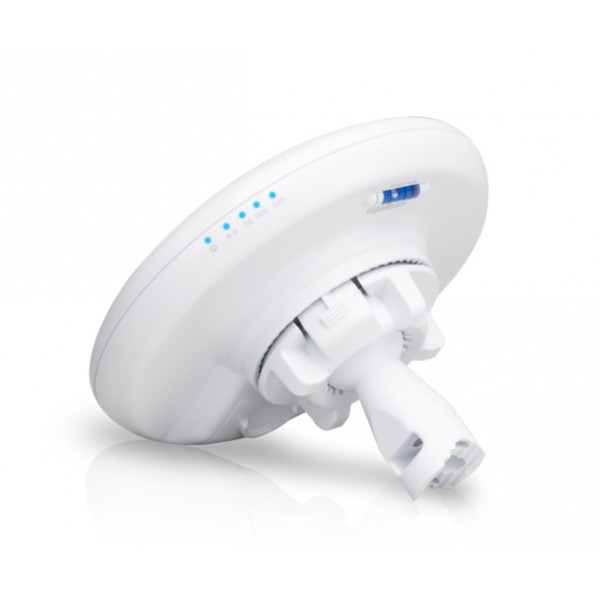

Ubiquiti GigaBeam
Ubiquiti GigaBeam
airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput
The GigaBeam is a 60 GHz radio designed for low-interference and
high-throughput connectivity. It includes a 5 GHz radio for failover. For the
60 GHz link, the GigaBeam supports full bandwidth use of 2.16 GHz. The
dedicated management radio allows easy setup via Wi-Fi.
Features:
60 GHz radio with 5 GHz radio backup
Low-interference 60 GHz spectrum
Up to 1+ Gbps with low latency
2.4 GHz management radio
Full bandwidth support: 2.16 GHz
Specifications:
Enclosure UV-Resistant Polycarbonate
Gain
5 GHz
60 GHz
10 dBi
17.2 dBi
Networking Interface 10/100/1000 Ethernet Port
Wi-Fi for Management
Max. Power Consumption 11W
Power Method Passive PoE (Pairs 4, 5+; 7, 😎
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications
CE, FCC, IC
Max. Conducted TX Power
5/60 GHz Combined
25 dBm
Channel Bandwidth
60 GHz
5 GHz
2160 MHz
20/40/80 MHz
Opearating Frequency
Worldwide 5.180 – 5.875
57 – 66
