MikroTik  LDF 2 Kenya | +254100720022

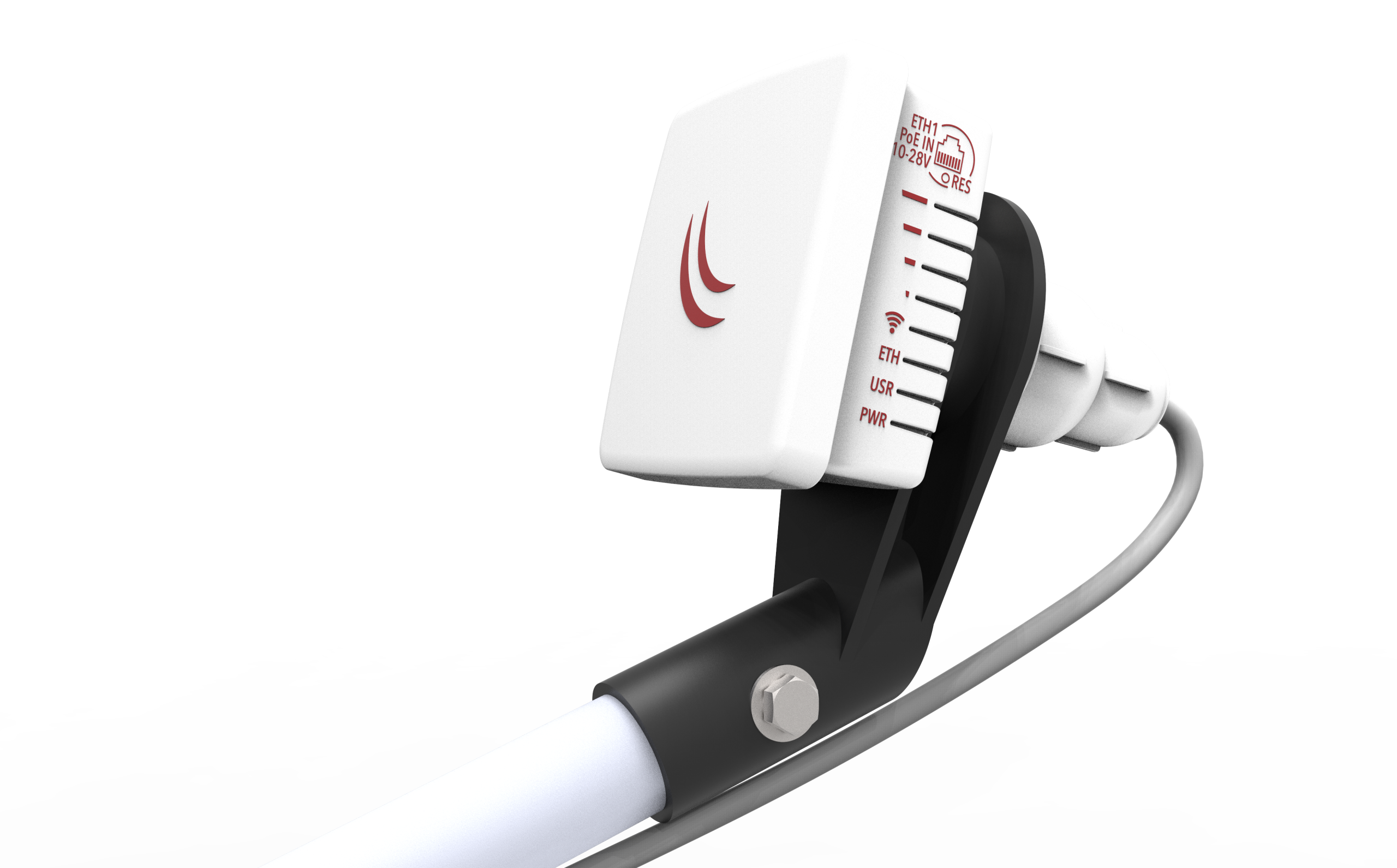

The LDF (Lite dish feed) is an outdoor
wireless system with a built in antenna, meant to be installed on satellite
offset dish antennas. The dish will act as a reflector, amplifying the
signal.

This means you can use any available satellite TV dish with an offset mount
to quickly deploy powerful long range wireless links. The offset mount is
universal at 40 mm diameter, and the LDF can easily be placed inside it.
Since the LDF itself is a tiny little package, it makes shipping and deployment
simple and low cost.

Using large enough dishes, it is possible to obtain antenna amplification
of 30 dBi or more. All it takes is to find a spare satellite dish with an
offset mount, and put your LDF device. Please refer to the user manual for
the antenna list that is approved for use. The device comes preinstalled with
RouterOS and is ready to use.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBLDF-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 84mm x 84mm x 115mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $39.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 10
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -93
6MBit/s 28 -94
54MBit/s 24 -78
MCS0 28 -94
MCS7 23 -75
Included parts

24V 0.38A power adapter

PoE injector

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
