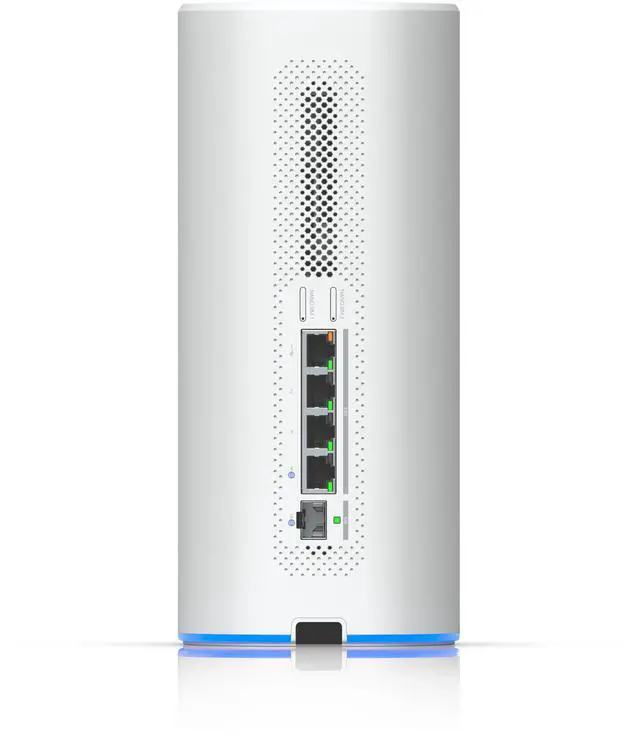

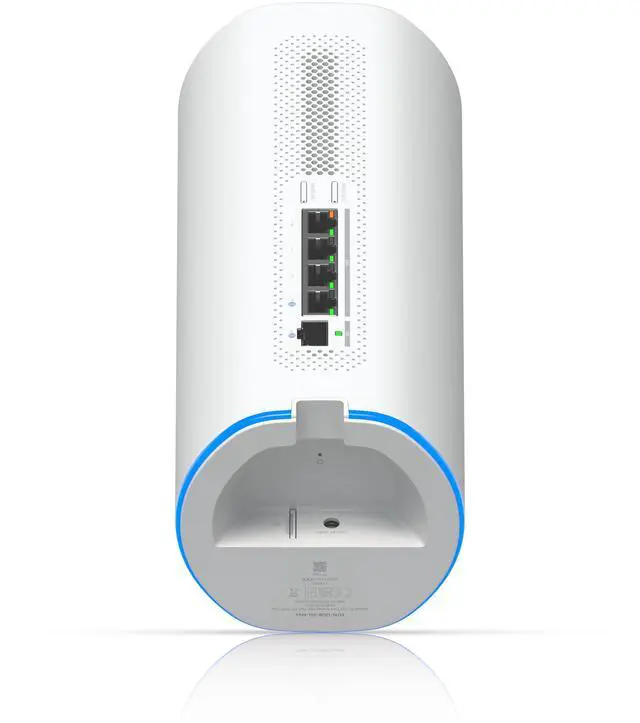

Ubiquiti UniFi UDR 5G MAX Dream Router Wifi UDR-5G-MAX-US

Overview
Dimensions: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8″)
UniFi Application Suite:
Network:
Protect:
Access:
Talk:
Connect:
Managed UniFi Devices: 30+
Managed Cameras: (5) HD, (2) 2K, (1) 4K
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45
Port Layout:
2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
10G SFP+: 1 (10G/1G)
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Desktop
Coverage Area: 160 m? (1,750 ft?)
Security
Stateful Firewall:
Application-Aware Layer 7 Firewall:
DPI & Traffic Identification:
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps):
Content Filtering:
Intrusion Prevention (IPS/IDS):
Ad Blocking:
IDS/IPS Signatures: 20,000+ with CyberSecure
VPN & SD-WAN
License-Free SD-WAN:
Site-to-Site VPN:
Site Magic:
IPsec:
OpenVPN:
VPN Server:
Identity Endpoint One-Click VPN:
Teleport Zero-Configuration VPN:
WireGuard:
OpenVPN:
L2TP:
VPN Client:
OpenVPN:
WireGuard:
Site-to-Site VPN Single Tunnel Throughput:
Site Magic: 20
VPN Client Single Tunnel Throughput:
WireGuard: 8
OpenVPN: 8
Networking
Multi-WAN Load Balancing:
Dynamic Routing:
OSPF:
Advanced QoS:
Multicast DNS (mDNS):
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT):
Integrated RADIUS Server:
RADIUS over TLS (RadSec):
Additional Internet Failover with UniFi LTE Backup:
Internet Quality and Outage Reporting:
MAC Address Table Size: 2,000
Virtual Network Override:
Integrated WiFi
WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput:
6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO:
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain:
6 GHz: 8 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power:
6 GHz: 22 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs: 4 per Radio
Supported Data Rates:
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
802.11n: 6.5 Mbps to 300 Mbps
802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
Cellular
5G NR:
Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm
4G LTE:
Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm
3G UMTS:
Frequency Bands: B1, B2, B4, B5, B8, B19
Peak Data Speed:
5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps
5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps
4G LTE: Downlink 1.6 Gbps / Uplink 210 Mbps
Antenna Gain:
617-960 MHz: 3 dBi
1710-2700 MHz: 7 dBi
3300-5000 MHz: 8 dBi
5150-5925 MHz: 8 dBi
SIM: (2) Nano SIM, (1) Nano-SIM or eSIM
Hardware
NVR Storage: Pre-installed 64 GB microSD for NVR
Expansion Slot: MicroSD Card
PoE Budget: 15.4W
Max. PoE Wattage per Port by PSE: 15.4W (PoE)
Voltage Range PoE Mode: 44-57V
Max. Power Consumption: 34.5W (Excluding PoE output)
Power Method: DC jack (54V DC/1.1A)
Power Supply: 54V DC/1.1A (Adapter included)
Supported Voltage Range: 100-240V AC
Heat Dissipation: 115 BTU/hr (Excluding PoE output)
Processor: Quad-core ARM? Cortex?-A53 at 1.5 GHz
System Memory: 3 GB
Weight: 1.4 kg (3.1 lb)
Enclosure Material: Polycarbonate
LCM Display: 4.7″ touchscreen
Management: Ethernet, Bluetooth
LEDs: Ethernet (), SFP+ (), System ()
Button: (1) Factory reset
ESD/EMP Protection: Air: ? 8kV, contact: ? 4kV
Ambient Operating Temperature: 0 to 40? C (32 to 104? F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant:
Certifications: FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance?
Software
Application Requirements:
Mobile App: UniFi iOS: Version 10.33.0 and later, UniFi Android: Version 10.36.1 and later
