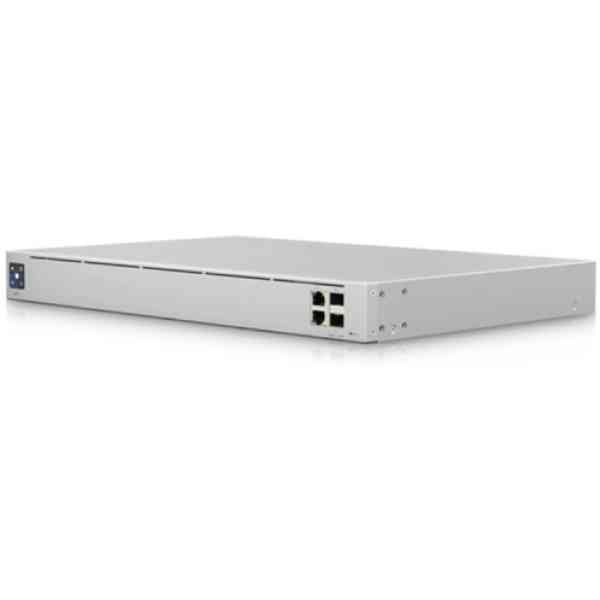

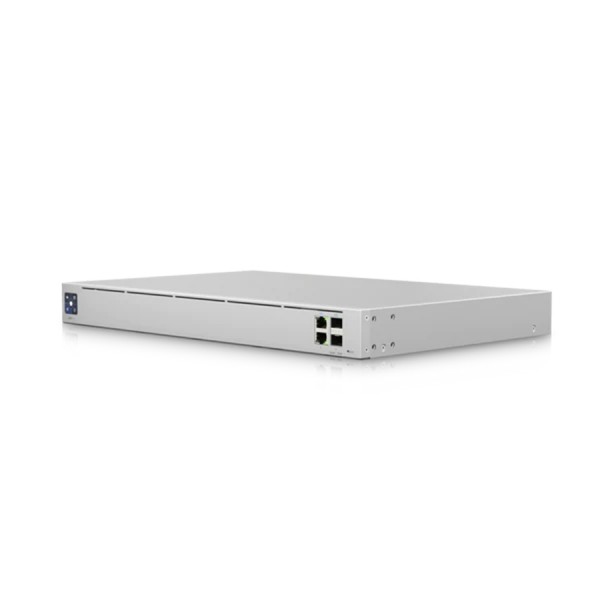

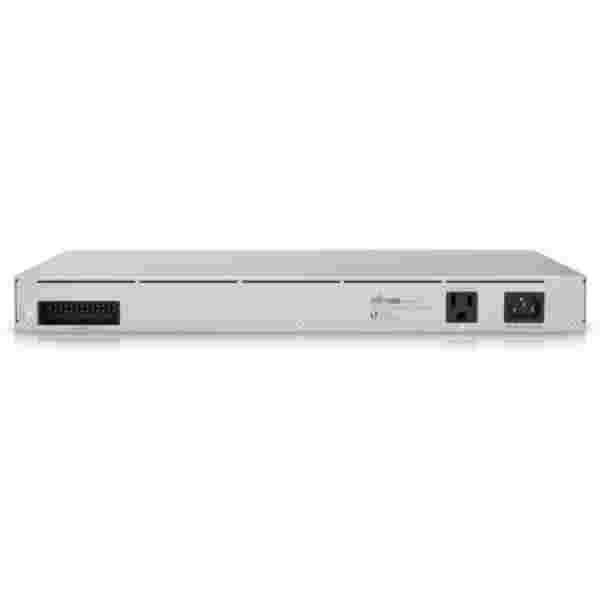

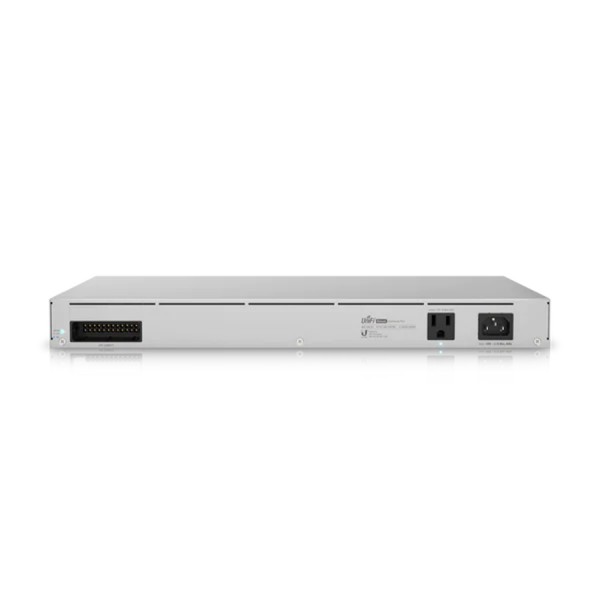

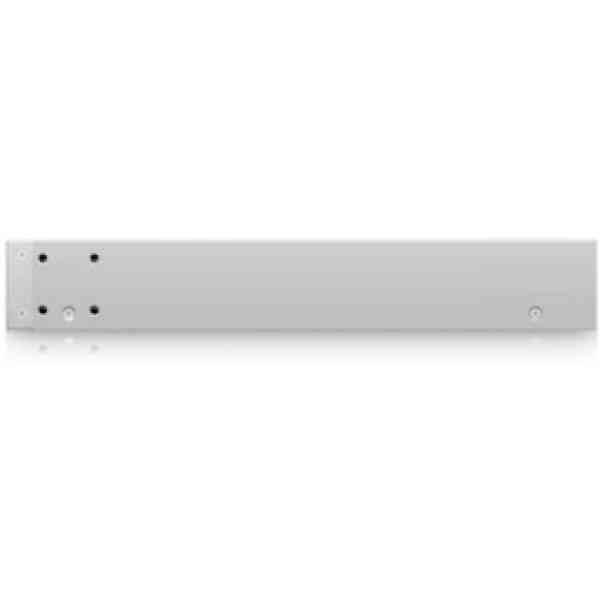

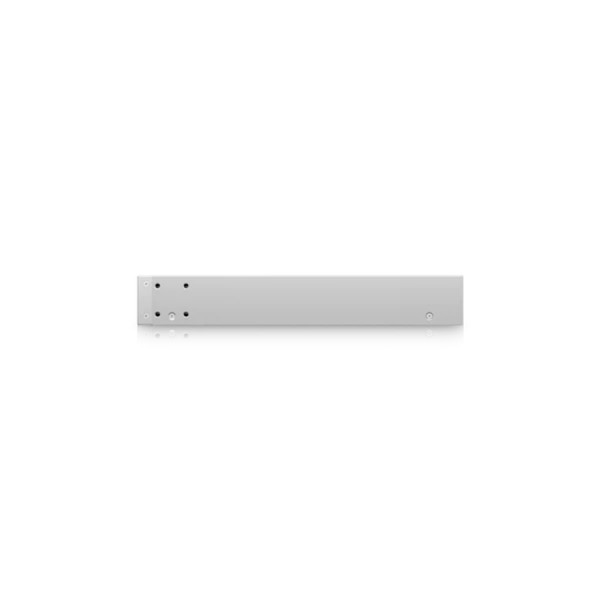

Ubiquiti Next-Generation Gateway Pro
Dual-WAN security gateway designed to
protect medium to large-sized networks with enterprise-class firewall
configuration and threat management features.
The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security
gateway that delivers a versatile networking interface and enterprise-class
threat management functionality to medium to large-sized networks. The UXG
Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide
failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide
the high-speed connectivity needed to support the most bandwidth-intensive
applications. It also excels as a complete network security solution,
offering a full suite of threat mitigation features, including deep packet inspection
(DPI), intrusion detection and prevention systems (IDS/IPS), and layered
firewall configuration. The UXG Pro can be paired with a Cloud Key Plus to
create a highly powerful and secure deployment that can be fully managed with
the UniFi Network application (web/mobile).
Features:
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the USP RPS or USP RPS Pro (sold
separately)
SmartPower outlet (125VAC/2A) for an external modem
1U-sized, rack-mountable device
Starlink Approved Installers Kenya.
Starlink will provide our customers with a world-class satellite internet experience that has never been available before across the most remote places in Africa.
We also offer other services like activating public Wi-Fi, data management plans, billing solution for areas where we need to monetize the network and much more.
info@starlinkinstallerskenya.com
www.starlinkinstallerskenya.com| Brand |
|---|
Related products
-
Read moreUbiquiti UniFi Switch 16 PoE
(USW-16-POE)The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen
Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and
two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices
and Gigabit fiber uplink options to your enterprise network. The USW-16-POE
features a 1.3″ touch LCM to provide status information. With a depth of
7.9″, the compact fanless design can be easily installed in a SOHO rack
cabinet.Managed and configured by the UniFi Network Controller with UniFi mobile
app support, the USW-16-POE offers an extensive suite of advanced Layer 2
switching protocols and features, including operation mode (switching,
mirroring, or aggregate) per port. The UniFi Network Controller and mobile
app allow admins to configure and monitor virtually all of the switch
features in a graphical user interface from anywhere. -
Read moreLayer 3 switch with (48) GbE RJ45 ports
and (4) 10G SFP+ ports.The Switch Pro 48 (USW Pro 48) is a fully managed switch with (48) GbE RJ45
ports and (4) 10G SFP+ ports. The USW Pro 48 combines a rich set of Layer 2
features with advanced Layer 3 tools including inter-VLAN routing, static
routing, and a DHCP server. The USW Pro 48 is an ideal aggregation and access
layer switch for any UniFi system. It combines innovative, near-silent
cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch
can also be monitored and configured from anywhere with the powerful,
intuitive UniFi Network web application and mobile app.Features:
(1) 1.3″ LCM color touchscreen with AR switch management
(48) GbE RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
Near-silent cooling
Layer 3 switching featuresManaged with the UniFi Network application: Version 5.12.11 and later
-
Read moreUISP Switch
Features:
(8) GbE RJ45 ports with 27V passive PoE output
(1) SFP port
110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port
(4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
Easy Bluetooth setup with the UISP Mobile app*When powered with the included AC/DC adapter.
Can be staged outdoors when enclosed in the UISP Box (sold
separately). -
Read moreUniFi Dream Machine Pro
The Best Experience for Large NetworksAll-in-one 1U rack enterprise security gateway & network appliance for
small to medium-sized businesses. The optimal experience for larger networks.UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network
appliance. UDM-Pro integrates all current and upcoming UniFi controllers with
a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf
3.5″ HDD support.The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN,
application visibility, VPN services, and 3.5 Gbps full threat management
throughput into a single device.Works with new UniFi OS
Centralized application management. All current and upcoming controllers
combined into one interface
Shared user and access management with role assignments and group
management
Enhanced Cloud portal with simple remote access to UniFi OSSecurity Gateway
The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN,
application visibility, VPN services, and 3.5 Gbps full threat management
throughput into a single device.Managed Switch
Fully managed switch with 10 Gbps SFP+ downlink and eight RJ45 GbE ports
for scaling up.UniFi Network
Integrated network management system for all network elements with an
easy-to-use and modern user interface. Wi-Fi AI automatically optimizes the
Wi-Fi network.UniFi Protect
Professional-grade video surveillance system and NVR with integrated
3.5″/2.5″ HDD bay for scalable storage.Advanced Redundancy
The UDM Pro features dual WAN ports with failover and U-LTE1 backup
connectivity to ensure reliable access to the internet. UniFi SmartPower
USP-RPS2 provides redundant power in the event of AC power loss.
1 Available in the US only. 2 Sold Separately.UniFi Enterprise Architecture Evolves with UniFi OS
The new UniFi Cloud portal provides simple access to all controllers and an
increasing number of UniFi applications.Seamless Network Integration
Use the UniFi Dream Machine Pro as your network controller.
Specifications
DIMENSIONS
Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24″)
Weight: 3.90 kg (8.60 lb)
With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
(2) Rackmount Brackets
(8) Bracket Screws
(4) Mounting Screws
(4) Cage Nuts
(1) Security Screw
(4) 2.5″ HDD Screws
Power Cord
(4) Rubber Feet
TECHNICAL SPECIFICATIONS
Interfaces
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port
Management Interfaces
Ethernet In-Band
(1) Bluetooth BLE
Technical Information
IDS/IPS Throughput: 3.5 Gbps *
Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Flash Storage: 16 GB eMMC
* Measured with iPerf3.
Environment
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Power
Max. Power Consumption: 33W
Voltage Range: 100 to 240VAC
Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
Redundant Power: (1) RPS DC Input
Power Supply: Internal 50W/12V
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Certifications
CE, FCC, IC
-
Read moreUbiquiti UFiber OLT 4
4-Port Optical Line TerminalConfiguring a fiber network just became as easy as setting up a smartphone.
Say goodbye to command lines, manuals, and paid support licenses. Introducing
the UFiber OLT 4 – a fiber solution that anyone can deploy.Client and Uplink Connectivity
The OLT features four PON ports to connect up to 512 ONUs, and SFP+ port
deliver up to 10 Gbps of uplink connectivity.Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a
standard-sized, 19″‑wide rack.Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive
UNMS™ (Ubiquiti® Network Management System) software.UFiber GPON Network Topology Example:
