Televes OMNINOVA BOSS antenna (LTE700, 2nd Digital Dividend) Omnidirectional intelligent antenna that does not require pointing | +254100720022
KSh 30,000.00
Antenna with a 360º reception capability (omnidirectional), therefore, there is no need to point again the antenna when changing location. It is perfect for DTT reception in moving facilities (ships, campers…) for short stays.
The BOSSTech system automatically controls the level of the received signal (either very high or very low) to always provide optimal output level. The new design using TForce technology makes this intelligent device even more versatile.
Provided with a full installation kit consisting of:

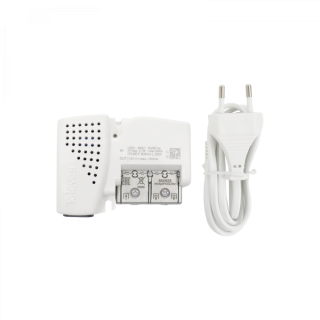

12V PicoKom power supply unit (Ref. 579401)
Current inyector for battery connection (Ref. 7450)
Straight bracket for antenna installation
Connectors: 3xF (ref. 4171xx) and 1xIEC (ref. 4130)
Screws with assembly wrench for mast mounting
RED compliant
- High dynamic range: It allows high-quality TV reception in a wide variety of critical situations, from areas where signals are very weak to installations with high reception levels
- DTT coverage area enhancement
- Very high gain
- A more stable reception: supports signal variations or fading without any impact on the TV installation
- Robust versatile structure:
- Weather resistant: The radome is highly resistant to salinity, humidity and other adverse weather conditions (IP 53).
- The base has a tube compatible with masts up to 30mm diameter.
- The base was designed to protect and hide the coaxial cable inside the mast or the bracket.
- 360º reception for multiple bands: Pointing is not required: BI, FM, BIII, and UHF.
- Low power consumption in intelligent mode
- LTE-Ready: equipped with LTE filters to avoid mobile phone signals caused by the use of 5G/4G devices in the environment
- Two operation modes:
- In intelligent mode (with antenna feeding), BOSS provides automatic control to correct signal fluctuations and maintain optimal output signal level
- In passive mode (without power supply), the signal goes through
- Quick and easy mounting. Furthermore, they can bebought as a kit, including all the accessories required for installation.
| Brand |
|---|
Related products
-
Add to cartLTE/4G transmission and reception antenna for extended coverage in shielded areas or in areas where propagation conditions are difficult. The 4GNova antenna can be connected either to an LTE/4G router or to an indoor antenna. In the latter case, the 4G-enabled devices will have coverage without the need for high-power transmission, thus saving battery and protecting the user from excessive radiation.
The coaxial 50 Ohm cable is fixed to the antenna chassis. Two available lengths and two available connector types. -
Add to cartThe best balance between robustness and compactness
The VZenit antenna has a V-type structure: it consists in two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length.
For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48). This makes it suitable for the 2nd Digital Dividend (LTE700). -
Add to cartIf the DAT BOSS can’t receive it, nothing can
Intelligent antenna including the BOSSTech system, designed for quality reception of UHF (DTT), optimizing LTE band rejection up to channel 48 (694MHz). -
Add to cartTo be inserted in the coaxial cable, just after the antenna, in order to redirect to ground any lightning strikes that could damage the antenna.
Recommended installation inside an outdoor housing attached to the mast
-
Televes L 700 antenna 18 elements | +254100720022
KSh 10,000.00Add to cartA monolithic Yagi antenna equipped with 18 elements, a dihedral-shaped reflector and a double-V dipole. Compact and light-weight, it provides an exceptional relation between robustness, directivity and gain.
Can be installed in both horizontal and vertical polarizations.
Supplied in 6-unit packing.
