It’s all about the power…

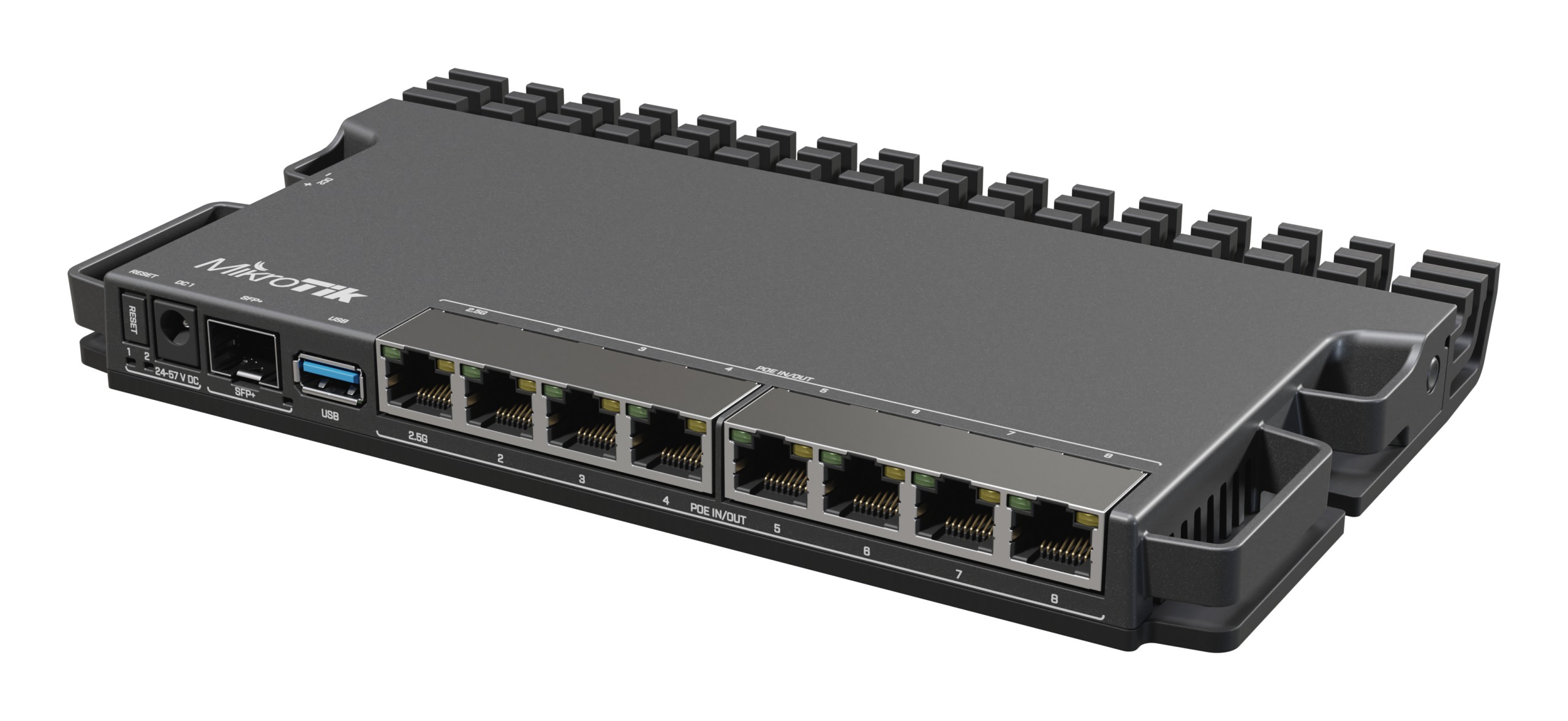

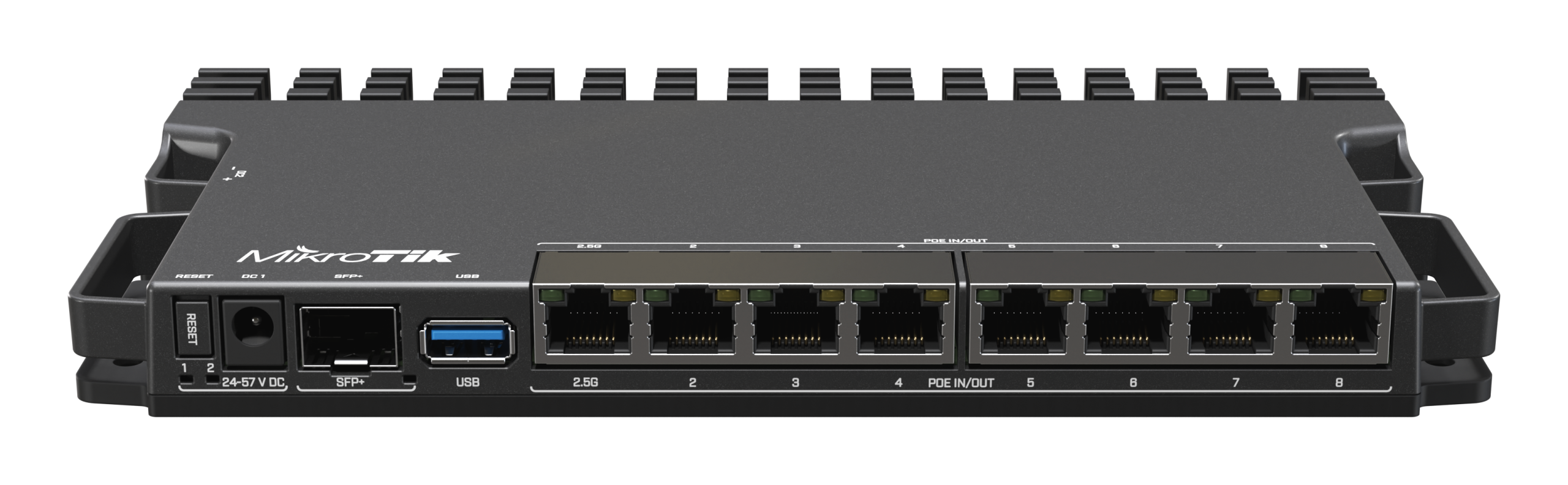

This version of the RB5009 has all the bells and whistles of the previous
model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for
fiber connectivity. It has the speed, the power, and the durability. But this
time, we have added PoE-in & PoE-out on all eight Ethernet ports.
Combined with the 2-pin connector and the DC jack, you’re getting 10 separate
ways of powering. Dual redundant power supplies would usually take your
uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step
above that!

All power options support a wide voltage range of 24 – 57 V. However, you
can not mix the voltages. If you’re using PoE-out to power other devices, the
board will choose the source with the highest voltage (DC jack or the 2-pin
connector) to power those.

Each PoE-out port can supply up to 25W of power. All the ports combined are
limited to 130W, which should be enough for most setups. You can specify maximum
available power from your power sources manually, if necessary. When it comes
to PoE-out features, the new RB5009 can trade blows with our legendary PoE
switches: CRS354 & CRS328. In the smallest possible form-factor and for
the best price on the market!

Protect your uptime, protect your tranquility!

So what exactly happens if there is a problem with one of your power
sources? Here’s a quick example: you have 24V on the DC jack, 48V on the
2-pin connector, and 57V on the PoE-in. The board itself gets powered by the
highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall
back to the second highest voltage – the 2-pin connector. And if that fails –
there’s the 24V option on the DC jack.

What about the PoE-out devices? Once again – the highest voltage wins.
PoE-out devices will draw power from the 48V source on the 2-pin connector.
If that fails – the 24V on the DC jack come into play. The board will always
reserve 20 watts to power itself. If there is not enough power for all the
PoE-out ports, it will start disabling the ones with the lowest priority. You
can set the port priority manually.

This tiny form-factor shines anywhere: from confined research facilities
and offices to huge corporate server rooms. And don’t forget that you can
mount FOUR of these routers in a single 1U rackmount space

With the new RB5009, we want to empower all the small and medium ISPs that
are always on the lookout for the most cost-effective and robust solutions.
It is a perfect addition to our previous GPEN devices – a line of products
designed to replace the expensive GPON solutions.

With so many powering options and a durable metallic case, the new RB5009
redefines affordable reliability.

*802.3af/at PoE-In only on Ether1!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RB5009UPr+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes
Suggested price $299.00
Powering
Details
Number of DC inputs 3 (PoE-IN, DC jack, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 16 W
Cooling type Passive
PoE in 802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage 24-57 V
PoE-out
Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 640 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130
Ethernet
Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) 1
Fiber
Details
SFP+ ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
Included parts

K-55 screw kit

IEC cord

48V2A96W

Connector plug

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
