5Ghz miniPCI-express, 802.11a/n dual
chain, 2x MMCX
…………….
MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
ORDER NOW!! +254100720022 / +254720548999

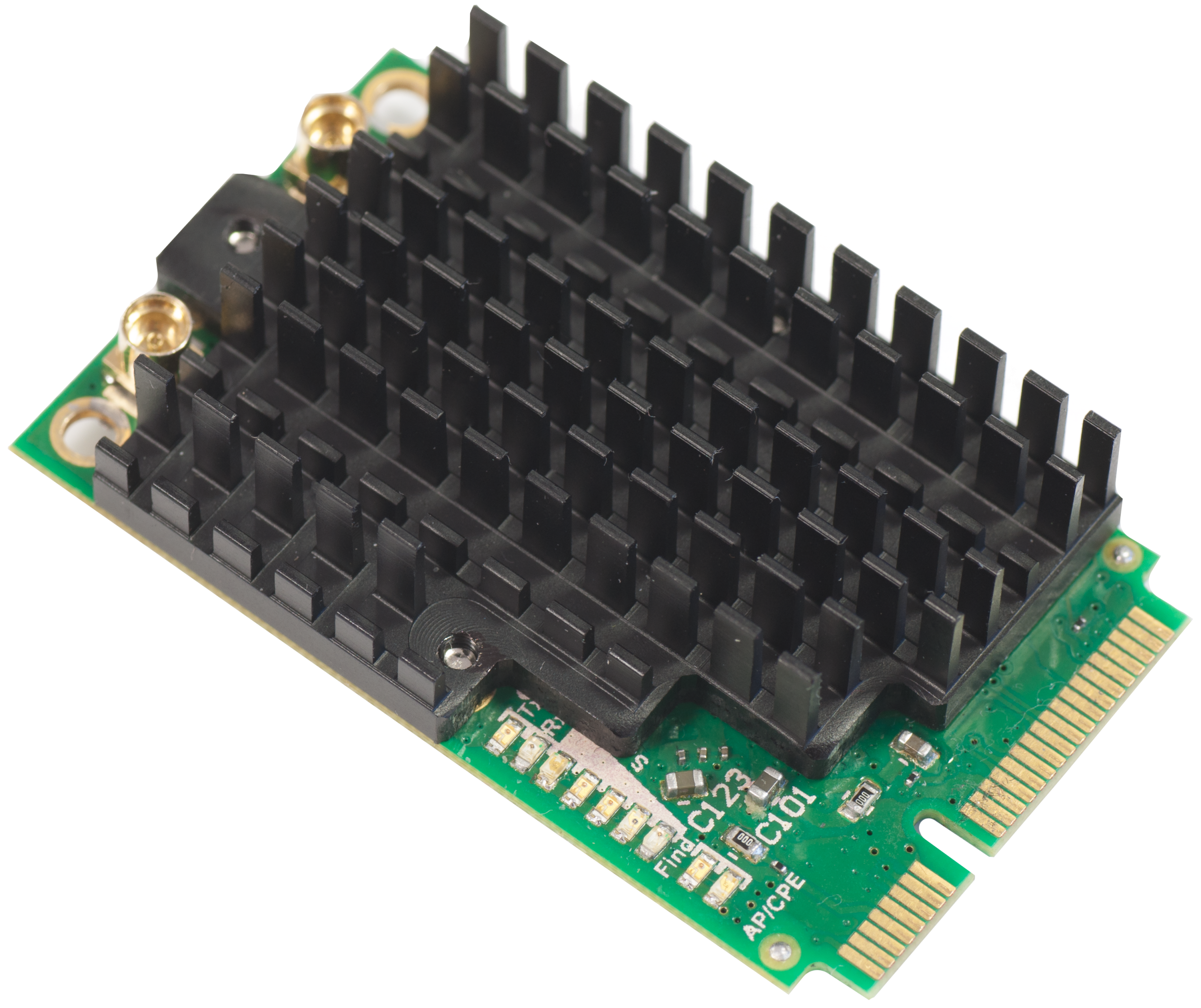

High power 4920-5920MHz 802.11a/n dual
chain wireless card in miniPCI-e format. Ideally suited for the new RB912
series, RB800 or our new miniPCIe adapter card – RB14e.

The card features built-in LED indicators for wireless mode, connection
status (connected, searching, disabled), TX and RX activity and wireless
signal strength – just looking at the card will help with installation and
alignment.

Send purchase questions
Specifications
Support & Downloads
Gallery
Product specifications
Details
Product code R11e-5HnD
5GHz yes
Antenna header count 2
Can be used indoors Yes
Can be used outdoors Yes
Certification FCC, IC
Chipset AR9580
Connector MMCX
Format miniPCI-e
Output power up to 27dBm
Storage size 4 KB
Storage type FLASH
Tested ambient temperature -40C to +65C
Wi-Fi generation Wi-Fi 4
Wireless standards 802.11a/n
Suggested price $39.00
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 27 -96
54MBit/s 24 -80
MCS0 26 -96
MCS7 23 -79
