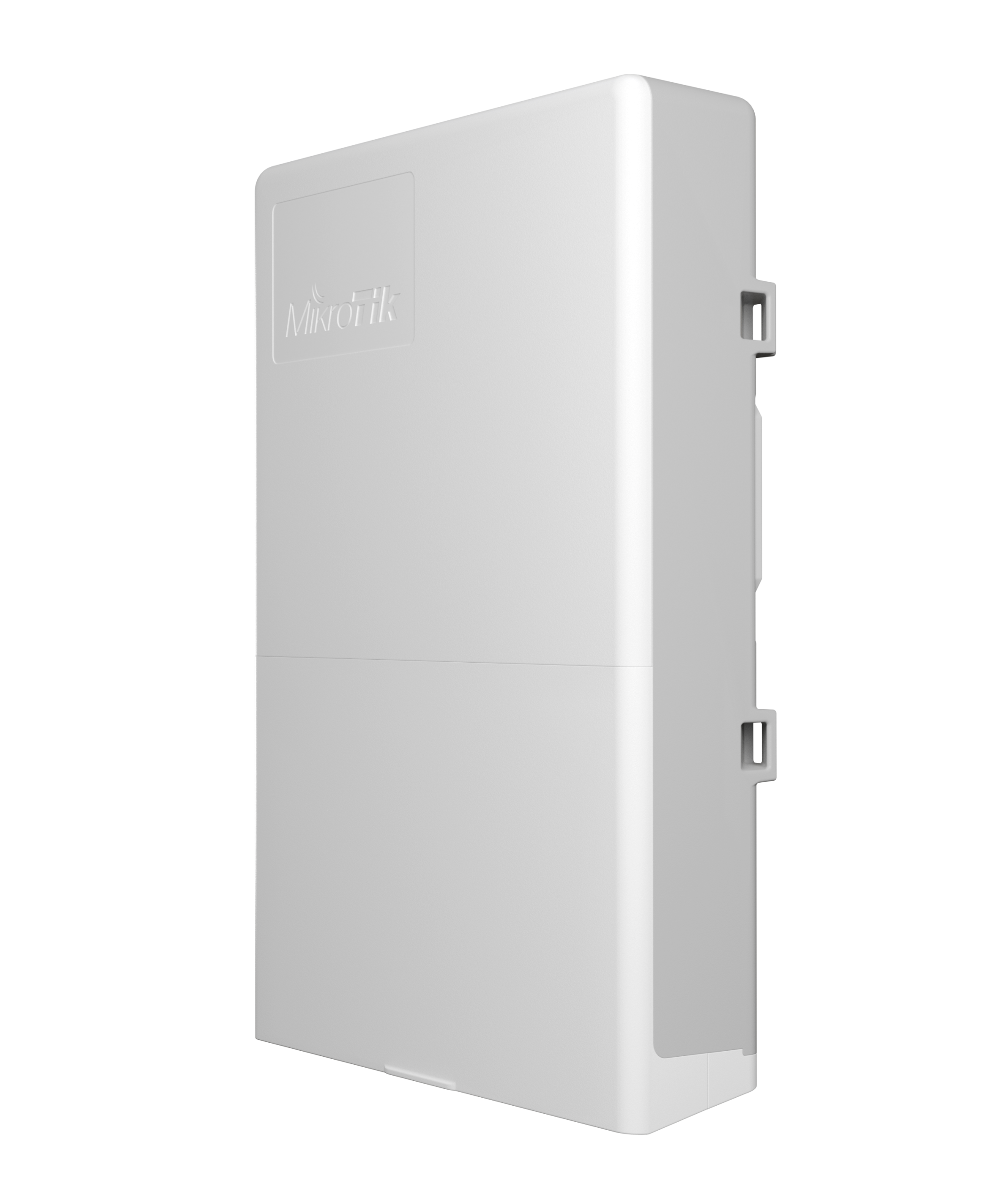

MikroTik  netPower Lite 7R Kenya | +254100720022

With netPower Lite 7R switch you can
forget about expensive GPON base stations and optical splitters. This switch
is a part of our GPEN concept – aimed to bring the speed and versatility of
fiber networking while using the advantages of Ethernet. It is an easy to
deploy, low-cost way for any ISP to deliver the Internet to individual
apartments.

With this switch you won’t have to worry about power issues, as there are
many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your
setup, netPower can draw the necessary power even from a single client!
Ethernet port 8 can power other PoE capable devices with the same voltage as
applied to the unit. There is also a DC jack and a 2-pin terminal for
alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of
environments – from damp attics to elevator shafts and different poles with
hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps,
switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

The power supply is NOT included with the product- must be purchased
separately. Read more information about GPEN concept.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code CSS610-1Gi-7R-2S+OUT
Switch chip model 88E6193X
Dimensions 304 x 212 x 71 mm
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $139.00
Powering
Details
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 12-57 V
2-pin terminal input Voltage 12-57 V
Max power consumption 29 W
Max power consumption without attachments 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V
PoE-out
Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 600 mA
Ethernet
Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 1G Ethernet ports with PoE-out 1
Fiber
Details
SFP+ ports 2
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP54
Included parts

K-66 fastening set

Hose clamp 2
