Small weatherproof wireless access point
with LTE antennas, two SIM slots, integrated GPS and miniPCI-e slot
…………….
MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
ORDER NOW!! +254100720022 / +254720548999

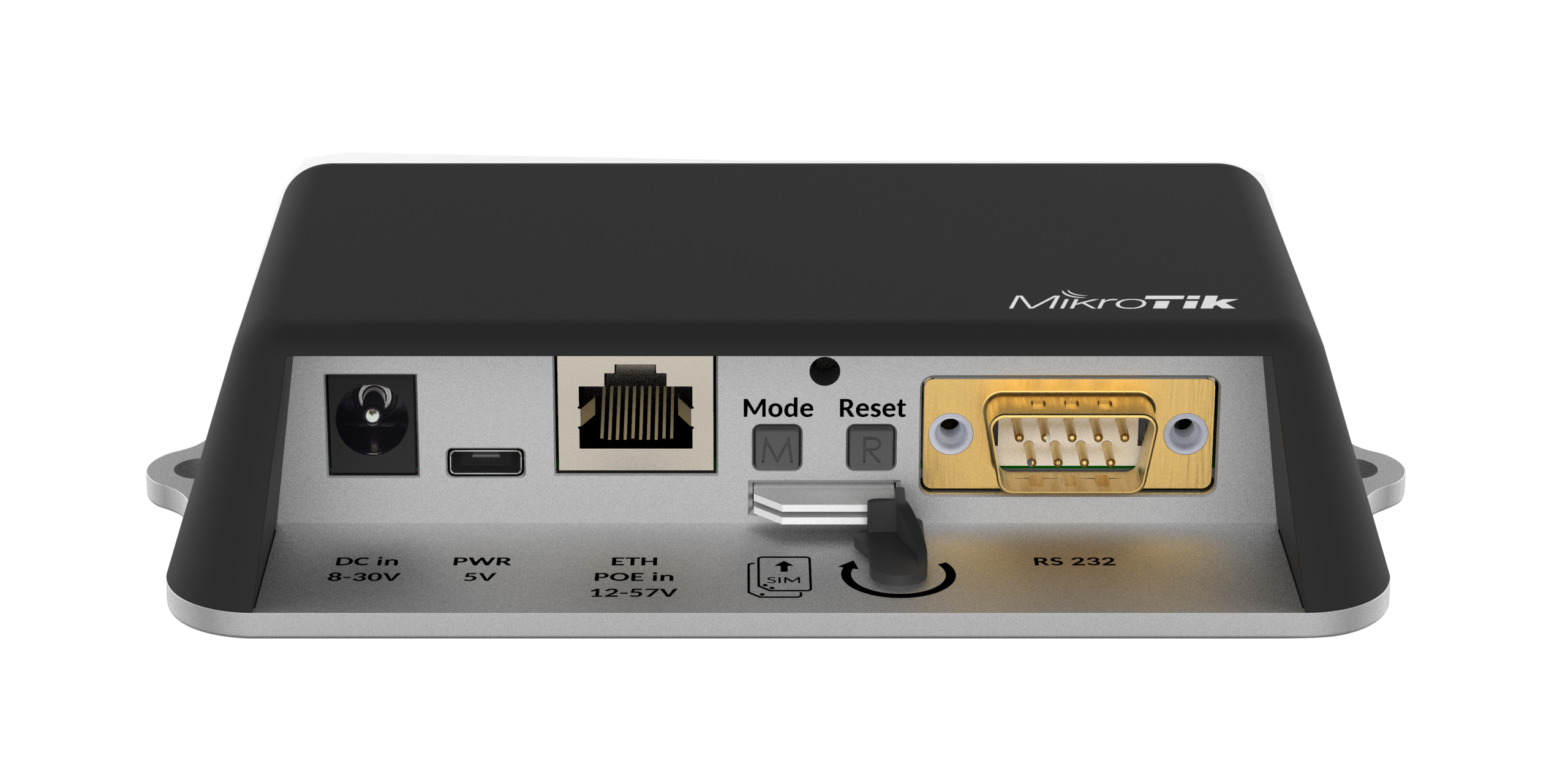

The LtAP mini is a small weatherproof
wireless access point with integrated LTE antennas (with two u.fl pigtails)
and miniPCI-e slot, so you can use your own LTE modem of your choice.
The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices.
The RS232 serial port gives you console access for debugging. The unit has
several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and
5 V microUSB.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots
to alternate between cellular providers, and integrated GPS support, making
this a perfect device for use in moving vehicles like cars, buses or trains.
Use the built in GPS module to track the location of your vehicle in real
time, we have even provided a simple tracking application example in the
RouterOS documentation, to help you start development of your platform.
External GPS antenna is available for ordering separately (not included,
product code GPSANT).
Send purchase questions
Specifications
Support & Downloads
Gallery
Test results
Specifications
Details
Product code RB912R-2nD-LTm
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 139 x 77 x 28,5 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00
Powering
Details
MicroUSB input Voltage 5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-30 V
Max power consumption 9 W
Max power consumption without attachments 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
Mode button Yes
GNSS standards GPS
GPS RF connector type uUFL
Certification & Approvals
Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
Included parts
K-55 screw kit
External DC cable
PoE injector
24V 1.2A power adapter
Elastic thermal pad 25x40x3,5mm
The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
