MikroTik  LDF 5 Kenya

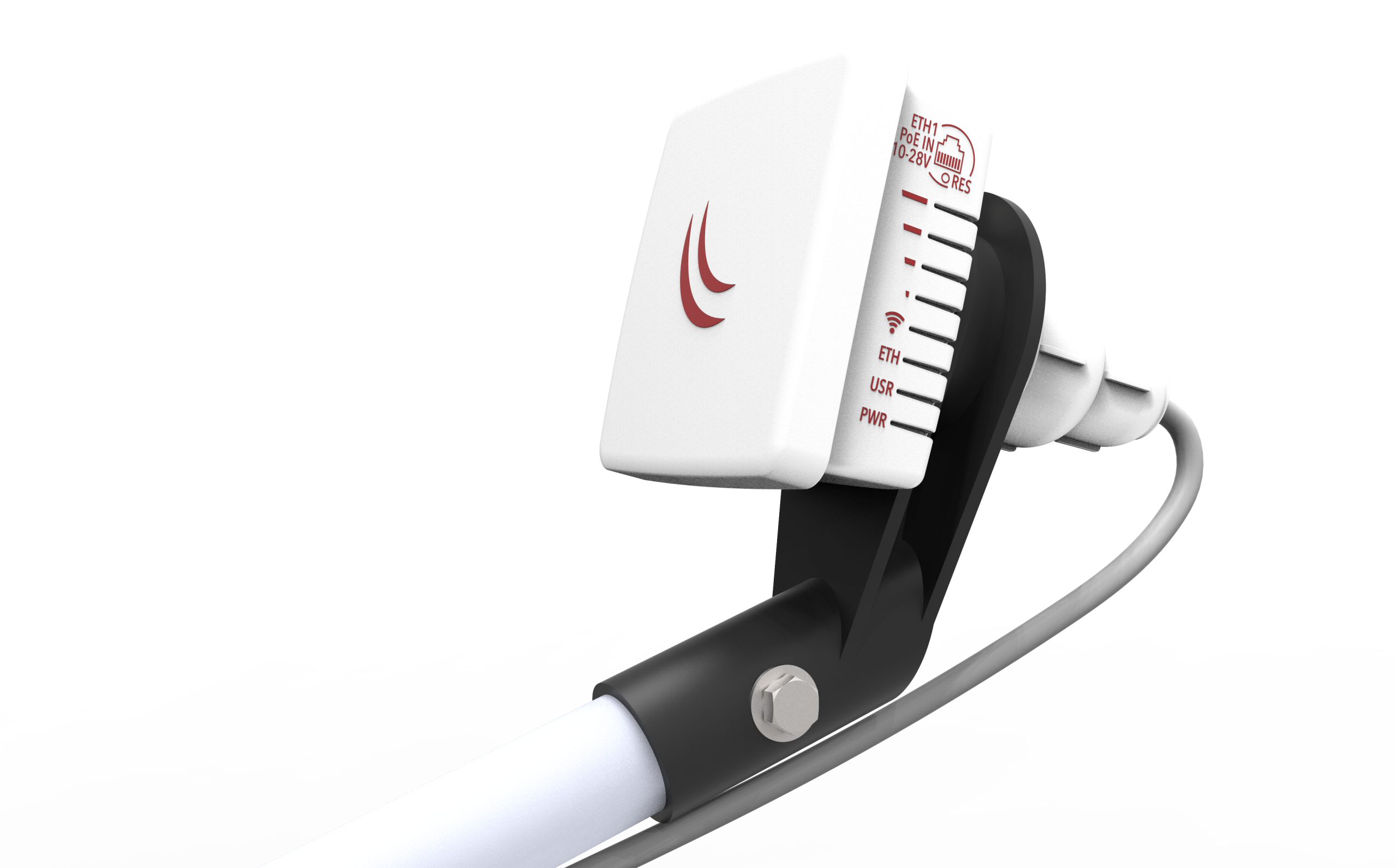

The LDF (Lite Dish Feed) is an outdoor
wireless system with a built in antenna, meant to be installed on satellite
offset dish antennas. The dish will act as a reflector, amplifying the
signal.

This means you can use any available satellite TV dish with an offset mount
to quickly deploy powerful long range wireless links. The offset mount is
universal at 40mm diameter, and the LDF can easily be placed inside it. Since
the LDF itself is a tiny little package, it makes shipping and deployment
simple and low cost.

Using a dish of up to 100cm in diameter, it is possible to obtain antenna
amplification of up to 33dBi. The device comes preinstalled with RouterOS and
is ready to use.

– LDF 5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz
frequencies. This lock can not be removed.

– LDF 5 (International) supports 5150MHz-5875MHz range (Specific frequency
range can be limited by country regulations).

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBLDF-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 84x84x115mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $49.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 9
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75
Included parts

24V 0.38A power adapter

PoE injector

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
