Are you tired of wired sensor
limitations? Wouldn’t it be nice if legacy devices – like electricity meters
– could send their data over the mobile network, like our phones do? With CME
Gateway you can achieve just that – and more!

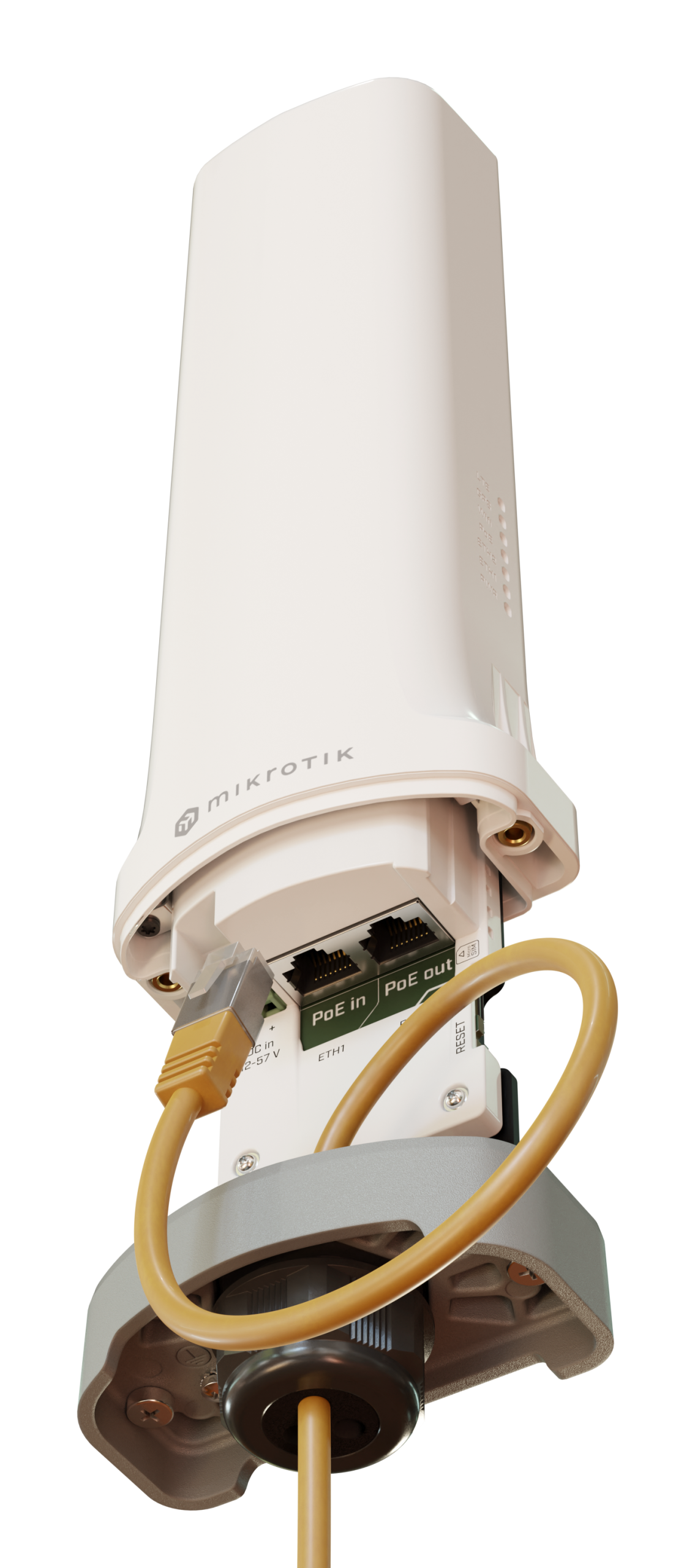

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel:
a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient,
low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband
won’t be able to stream YouTube videos, but it serves a different purpose: it
offers better network coverage and transmits data via the most affordable
data plans in the world.

With the IP66 water resistance rating, the sturdy unit can survive a
variety of harsh environments and setups: damp attics, rainy forests, farming
equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for
handy powering. And to make management even easier – we’ve added a simple
single-chain 2.4 GHz wireless – so you can use the – MikroTik smartphone app to
configure everything.

Also, a fun bonus: the board supports GPS, so if you know your way around
RouterOS scripting, you can try collecting weekly, daily or even hourly
location data as well!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code CME22-2n-BG77
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $89.00
Powering
Details
Number of DC inputs 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage 12-57 V
Max power consumption 31 W
Max power consumption without attachments 6 W
PoE in 802.3af/at
PoE in input Voltage 18-57 V
PoE-out
Details
PoE-out ports Ether2
PoE out 802.3af/at
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 0.6 A
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz number of chains 1
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 2
Peripherals
Details
Number of SIM slots 1 Modem (Nano SIM)
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP 66
Included parts

48 V 0.95 A power adapter

Gigabit PoE injector

Metal ring (one)

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..-
……………………………………………………………………
