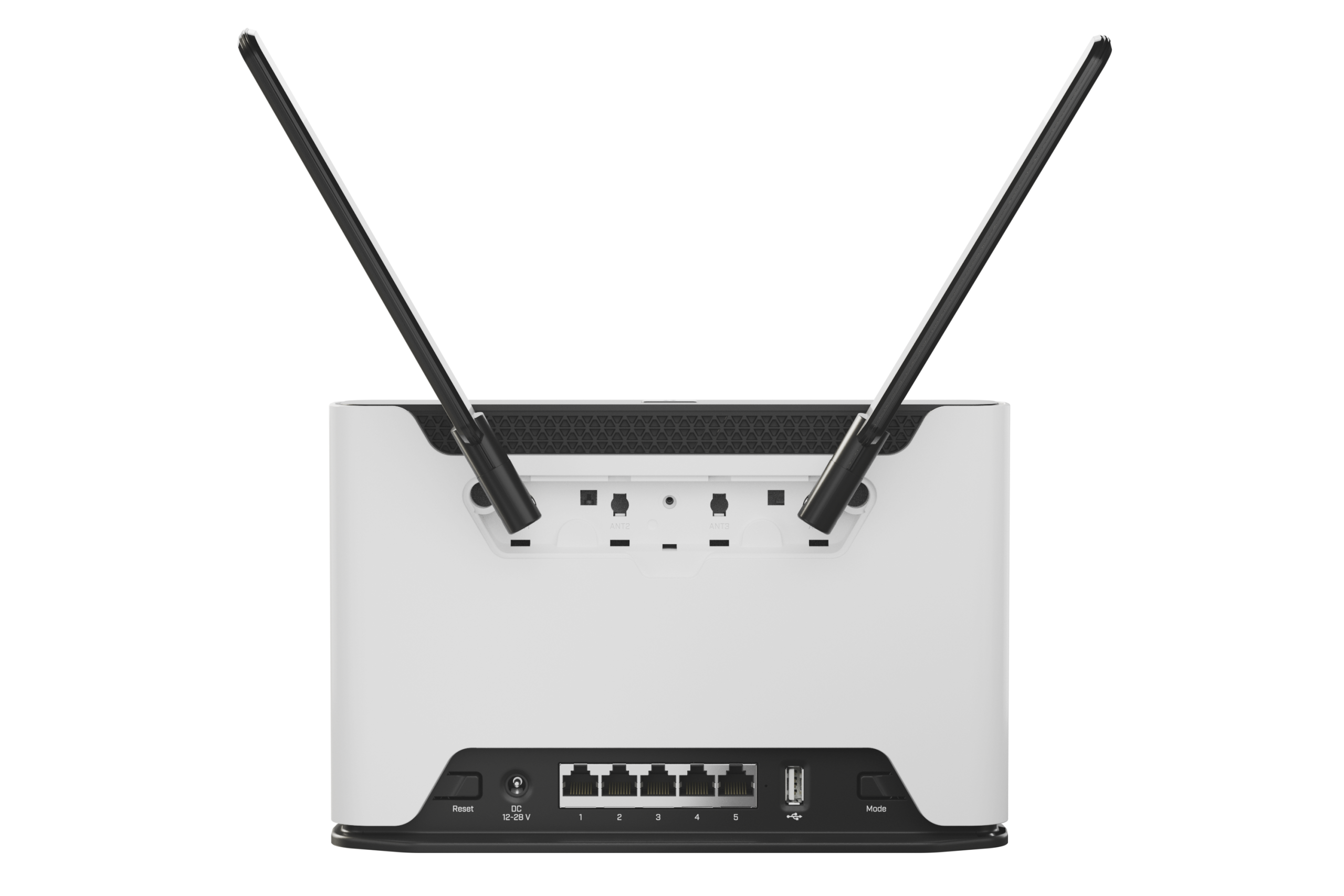

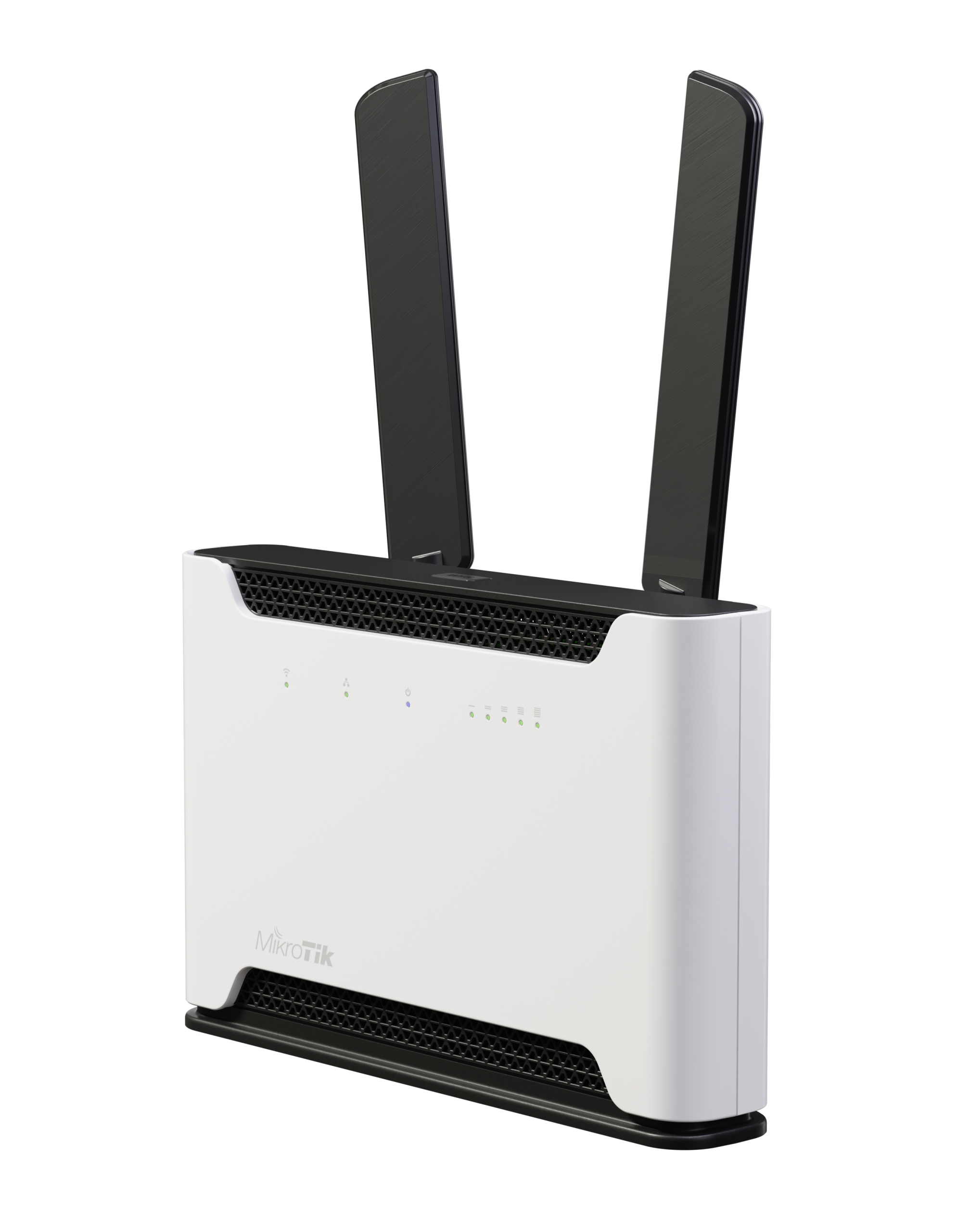

MikroTik  Chateau 5G Kenya | +254100720022

Chateau 5G s a high-speed, dual-band home
access point with LTE/5G support – for really fast Internet anywhere,
anytime. There are many options to choose from, depending on your needs: from
CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only
option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB
port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will
solve most interference issues in a crowded environment. For example, a
client can simultaneously use the 2.4 GHz channel for all household mobile
devices and reserve the 5 GHz channel for tasks that are sensitive to packet
loss – such as streaming high-quality videos.

Chateau can be customized: you can choose a variety of labels, we can print
your branding, if necessary. And there is another great feature – you can use
TR-069 technology to create a custom remote client management option. You can
choose how much control your clients need and which features of the highly
versatile RouterOS they get to use. Some operators use this to allow users to
configure the router via the same web-page they use to pay bills, others
restrict novice users from meddling with the settings to provide better
browsing experience in the long run.

Let’s make more clients happy with – MikroTik Chateau 5G!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code D53G-5HacD2HnD-TC&RG502Q-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $530.00
Powering
Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 23 W
Max power consumption without attachments 17 W
Cooling type Passive
Mobile
Details
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz)
/ 1 (2100MHz)
LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900
MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz)
/ 32 (1500 MHz)
LTE TDD bands 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) /
42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)
5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) /
8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G NSA TDD bands 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500
MHz) / 79 (4700 MHz) / 38 (2600 MHz)
5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) /
8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G SA TDD bands 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700
MHz) / 38 (2600 MHz) / 40 (2300 MHz)
TAC 86073604
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 5
Peripherals
Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of M.2 slots 1
Other
Details
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
Included parts

2 external LTE/5G antennas

24V 1.2A power supply (straight plug)

UTP Flat Cable (1.5m)

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..-
……………………………………………………………………
