Start your 100 Gigabit journey with our
new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU
can trade blows with the mighty 72-core Tile CPU of our previous flagship –
the CCR1072.

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to
the next level with L3 Hardware Offloading! Our previous CCR2116 featured a
switch-chip with four 10G CPU connection lines, but this time there are four
25G lines!

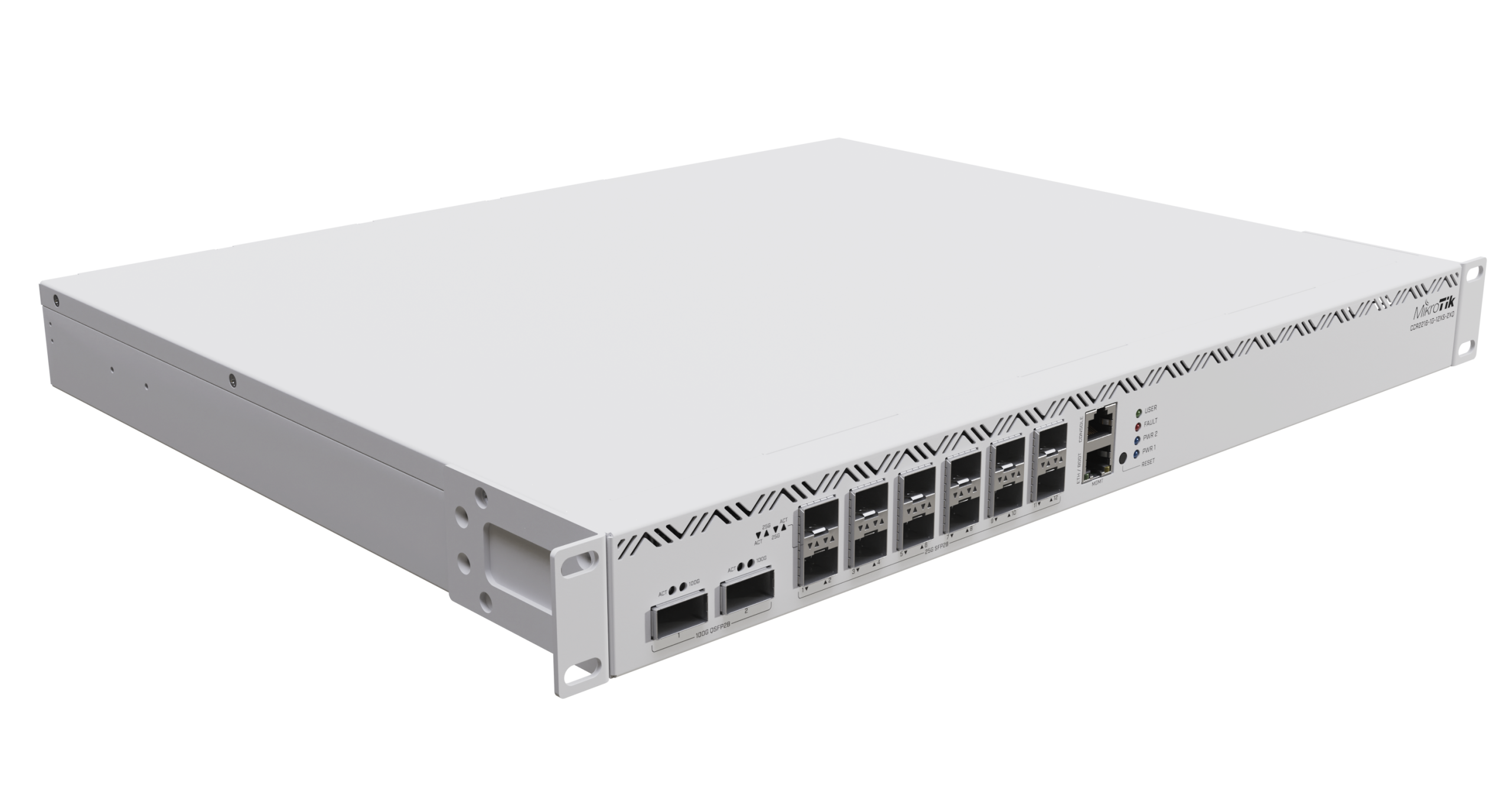

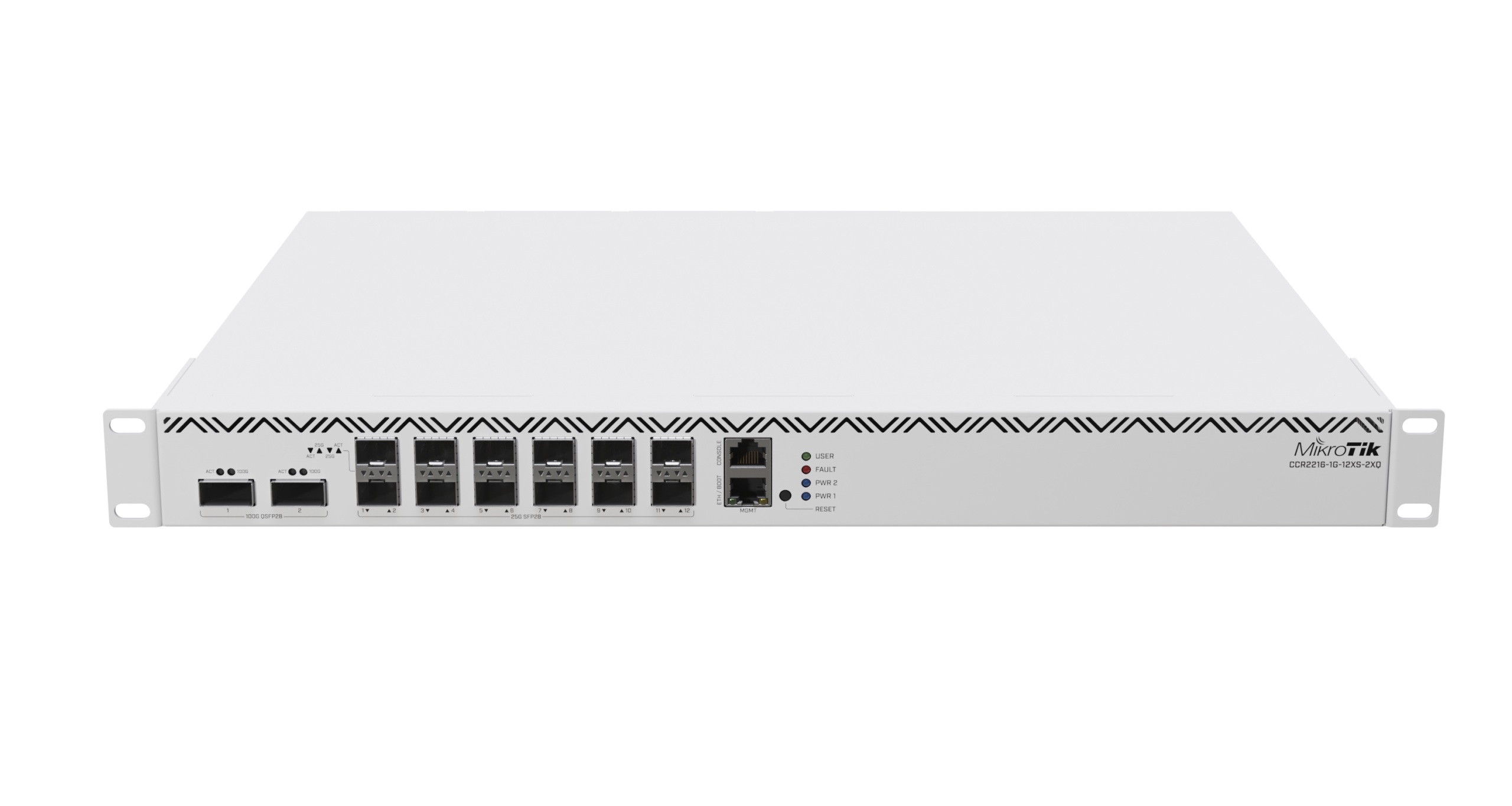

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x
SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The
device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots

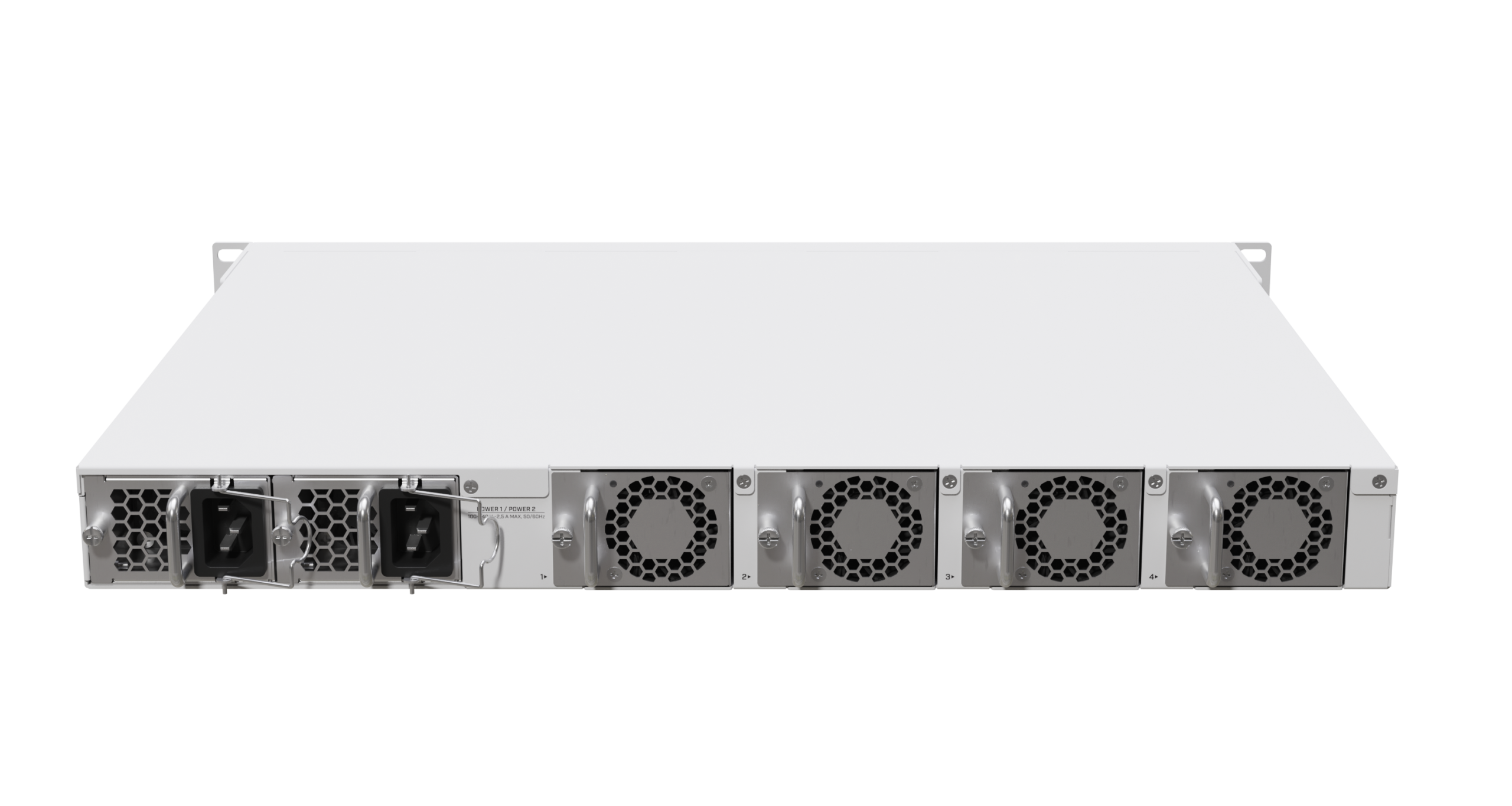

for additional storage. There are four hot-swappable fans, as well as
dual-redundant hot-swap power supplies. And these PSUs might look familiar if
you have used our CCR1072 before: you can keep using your previous hot-swap
power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better
performance with lower power consumption.. This is the perfect drop-in
upgrade for existing CCR1072 setups!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code CCR2216-1G-12XS-2XQ
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX8525
Dimensions 443 x 367 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $2795.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 128 W
Max power consumption without attachments 80 W
Cooling type 4 fans
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
Number of 25G SFP28 ports 12
Number of 100G QSFP28 ports 2
Peripherals
Details
Serial console port RJ45
Number of M.2 slots 2
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
Included parts

IEC cord

IEC cord

Rackmount ears

Cable managment brackets

K-82 fastening set

Rackmount rear support ears (2/2)

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
