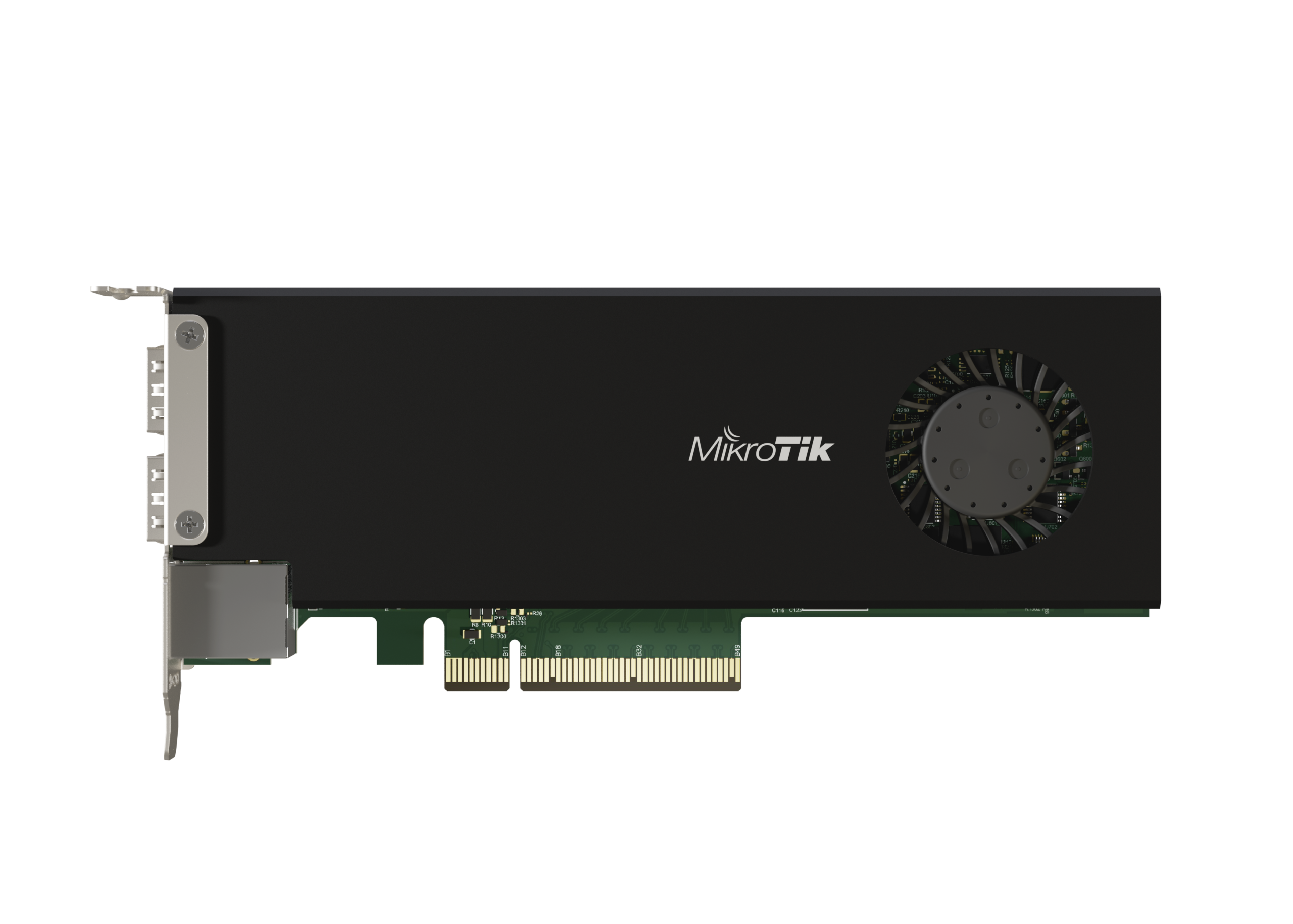

Save space in your server room by adding
a real CCR2004.. within the server itself! This unique product combines a
simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities
of a fully-fledged router.

By default, the PCIe interface will show up as four virtual Ethernet
interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages.
Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit
Ethernet port for management access. The user can configure all interfaces
and settings freely since we are running fully functional RouterOS
here.

To get this CCR device to work as an NIC, a new Passthrough mode was
implemented. Basically, a FastForward FastPath mode that can also pass
hardware link statuses.

This NIC can reach wire-speed (100Gbps) with Jumbo frames. It ensures that
in most server setups this CCR network card will not be the bottleneck.

With 4 GB of RAM, 128 MB of NAND storage, and a powerful quad-core ARMv8
64-bit CPU, this device can handle a lot: firewalls, user management and
access control for home media and file servers, and even some traffic control
in data centers – without the need for a stand-alone router.

This form-factor does come with certain limitations that you should keep in
mind. The CCR NIC card needs some time to boot up compared to ASIC-based
setups. If the host system is up before the CCR card, it will not appear
among the available devices. You should add a PCIe device initialization
delay after power-up in the BIOS. Or you will need to re-initialize the PCIe
devices from the HOST system.

We are looking forward to see your unique use-cases for this unconventional
device: a simple high-speed networking card combined with a powerful Cloud
Core Router.

Unleash the potential of your server with the fierce power of RouterOS!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code CCR2004-1G-2XS-PCIe
Architecture ARM 64bit
CPU AL52400
CPU core count 4
CPU nominal frequency 1500 MHz
Dimensions 170 x 69 x 18 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $199.00
Powering
Details
Max power consumption 29 W
Max power consumption without attachments 22 W
Cooling type 1 fan
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
Number of 25G SFP28 ports 2
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
Included parts

Small bracket

Large bracket

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..- MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
