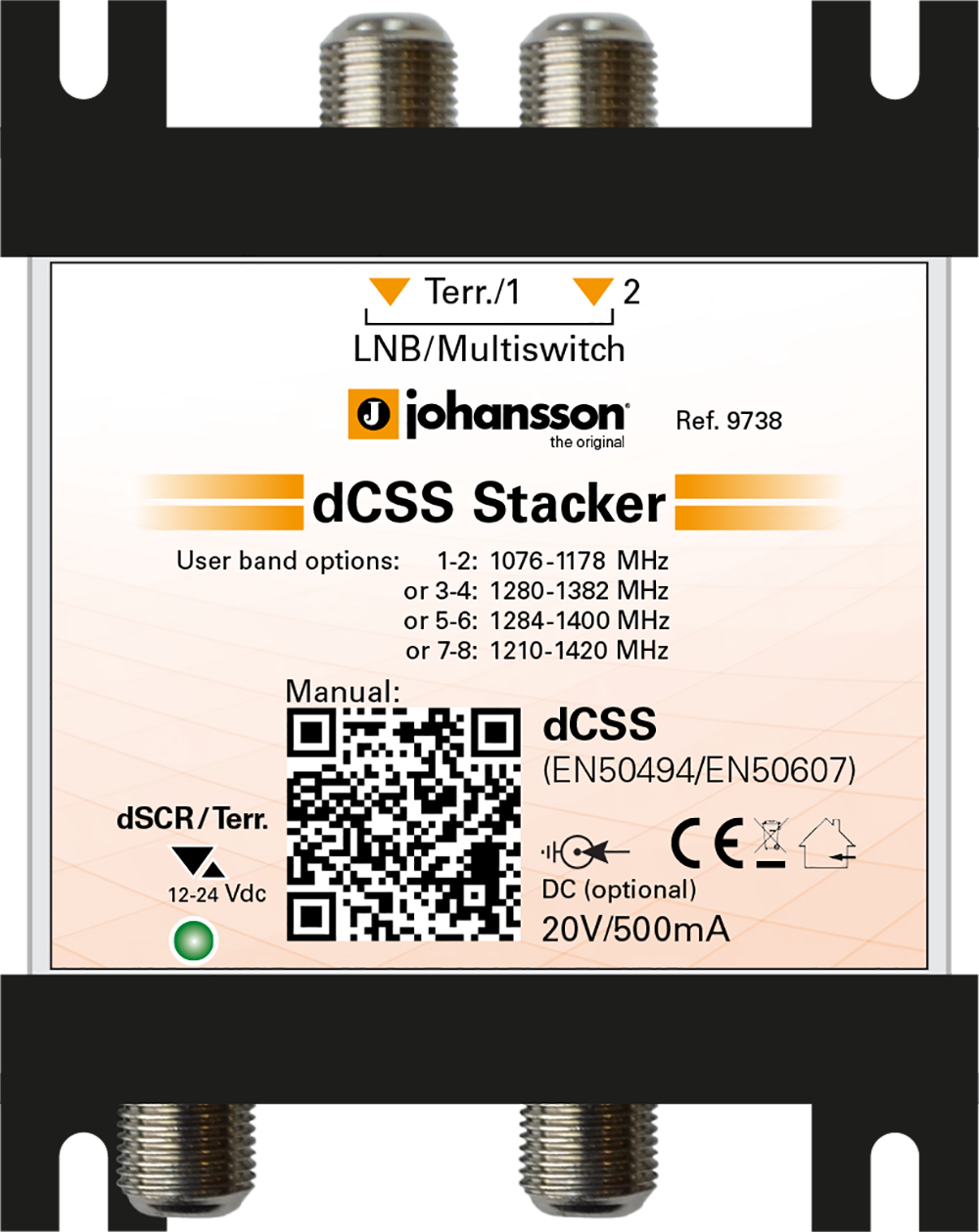

Johansson. 9738 – dSCR STACKER
9738 dSCR STACKER
2 SATELLITE INPUTS (INCL 1 TERRESTRIAL INPUT), 1 OUTPUT WITH 2 USER
BANDS
The dSCR Stacker is the perfect solution to upgrade an old single satellite
STB system to an dSCR-compatible dual input receiver (PVR) or 2 separate
dSCR-compatible set-top boxes. The advantage of using the 9738 is that no
additional cable is needed to connect the second tuner. The product stacks
both transponders on 1 cable.
application: 1 Twin LNB, 2 ports of a multiswitch, 2 Twin LNBs connected to
Multiswitch (ref. 9920)
powers the LNB or multiswitch from the STB or from an additional power
supply
power with Ref. 2460 Power Supply
supports the following standards: EN50494/SCR standard (DiSEqC 1.0) &
EN50607/dCSS/dSCR standard (DiSEqC 2.0)
Back: Ref. 9736SKY
Next: Ref. 9739
