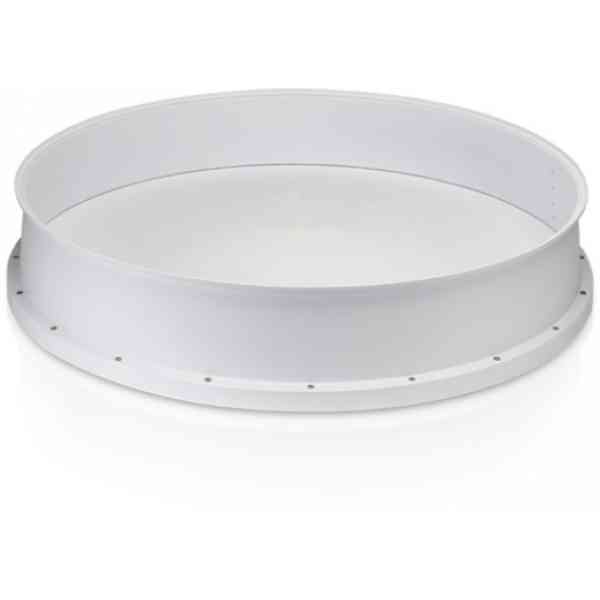

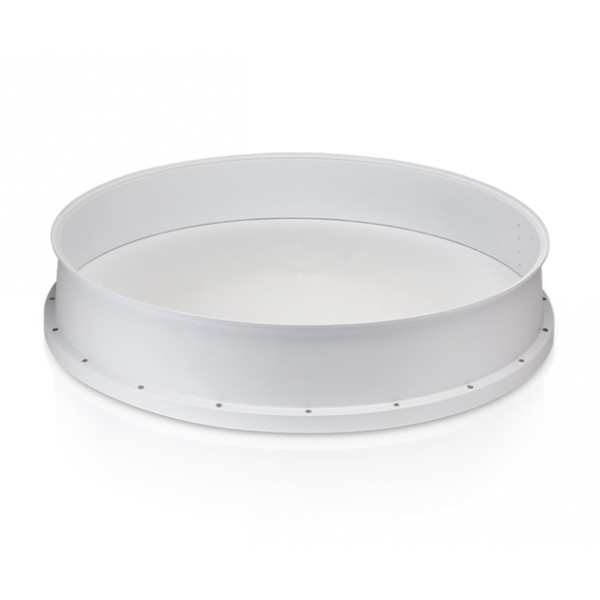

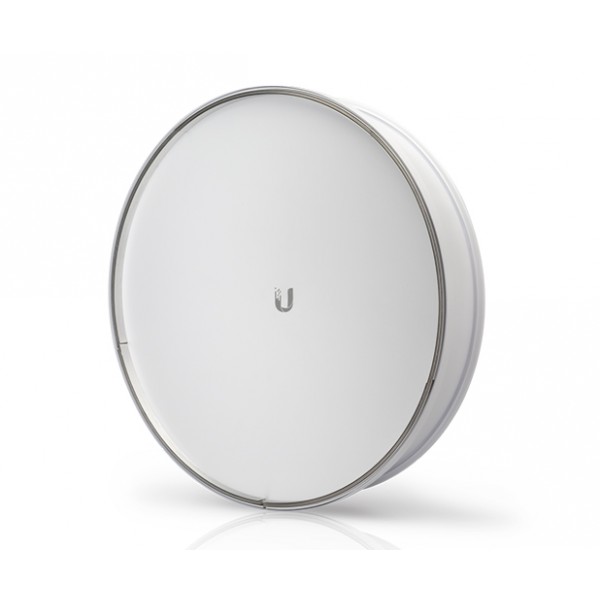

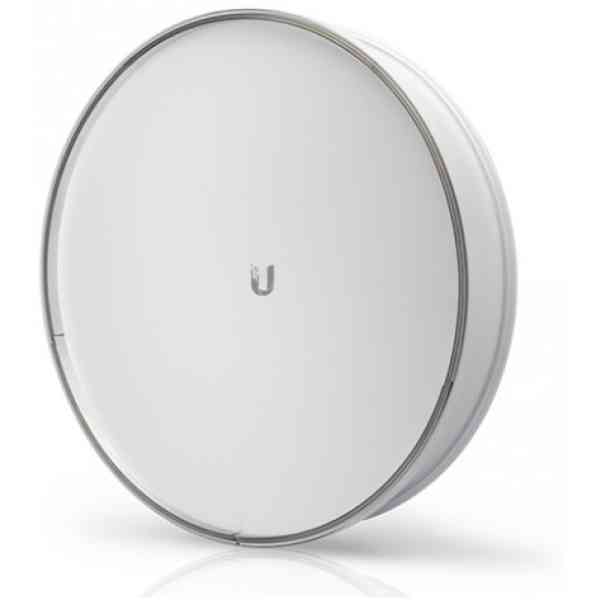

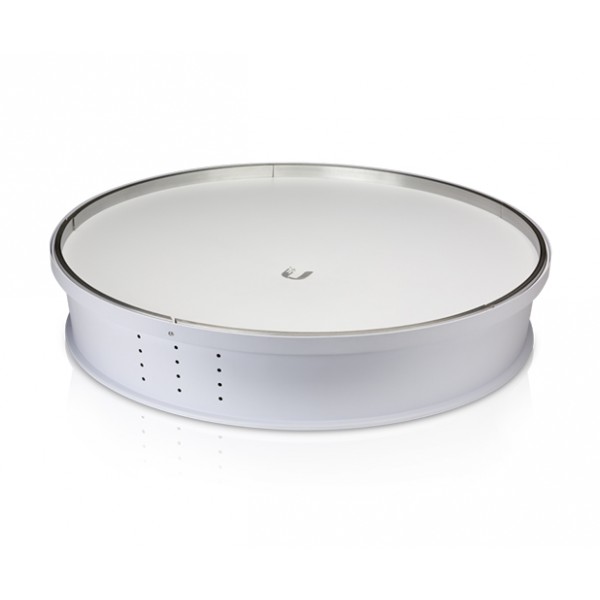

Ubiquiti IsoBeam 620mm Isolator Radome

Related products

•

  Ubiquiti 5GHz 90 Beamwidth Horn Antenna

  Ubiquiti 5GHz 90° Beamwidth Horn
  Antenna

  With a range of different beam widths, the isolation antennas are
  interchangeable and feature high-performance beam patterns ideal for a range
  of deployment needs. Used with the airFiber® LTU and airMAX® radios, these
  antennas deliver superb co‐location performance without sacrificing
  gain.

  *Please note that this product is only an antenna, and does not include any
  radio/electronics.

  Read more

  Quick View
•

  Ubiquiti 5GHz airFiber Slant 45 Dish (34dBi)

  Slant 45 Antenna for airFiber®

  The airFiber® X Antennas feature significant advances in noise isolation
  and beam performance to complement the airFiber X radios for carrier
  backhauls and Point-to-Point (PtP) bridging.

  Compact Footprint for Deployment Flexibility

  The compact form factor allows the airFiber X Antennas to be used in
  various applications, from carrier backhauls between towers to PtP bridging
  between buildings.

  Plug and Play Integration

  The airFiber X Antennas are designed to integrate seamlessly with the
  airFiber X radios.

  Advanced RF Isolation Design

  The innovative industrial design improves RF isolation to significantly
  reduce interference and deliver superior gain for high‑capacity, multipoint
  networks.

  airFiber X Conversion Kit

  The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model
  AF-5G-OMT-S45, converts

  the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X
  radio.

  Read more

  Quick View
•

  Ubiquiti 48V Gigabit PoE Adapter (0.32A)

  Ubiquiti 48V Gigabit PoE Adapter
  (U-POE-AF)

  48V 0.32A

  This model is able to provide 48V Passive PoE or 802.3af output (to
  compatible devices).

  Ubiquiti PoE Adapters also provide a variety of features to help protect
  your PoE devices:

  Surge protection
  Clamping protection
  Maximum surge discharge
  Peak pulse current
  AC cable with earth ground

  Electrostatic discharge (ESD) is the leading cause for outdoor device
  failures. You can effectively protect against ESD damage using a grounded
  Ubiquiti PoE Adapter, STP/FTP cable and shielded connectors.

  Please note that no power cable is included with this PoE injector. A
  clover to SA 3pin power cord is available to purchase separately:
  https://shop.dbg.co.za/powcnd5.html

  You can also consider making use of the UltraLAN PoE injector as a cost
  affective alternative:

  UltraLAN Gigabit PoE Adapter – 48V 0.3A (15W)

  Specifications:
  Output Voltage 48VDC @ 0.32A
  LAN Activity Indicator No
  Gigabit LAN Port Yes
  Remote Reset Capability Yes
  Reset Button No
  Rated Voltage 100-240VAC @ 50/60Hz
  Input Current 500mA @ 90VAC
  Inrush Current <100A Peak @ 25°C
  Efficiency 0.8425
  Output Ripple 200mV p-p
  Switching Frequency 65 kHz
  Line Regulation ≤ 3%
  Load Regulation ≤ 5%
  2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
  4-Pair Powering –
  Operating Temperature 0 to 40° C
  (32 to 104° F)
  Storage Temperature -30 to 70°C
  (-22 to 158° F)
  Operating Humidity 5 to 90% Noncondensing
  AC Connector IEC-320 C6
  Data IN / POE RJ45 Shielded Socket
  Surge Protection Difference and Common Mode
  Clamping Protection 11V Data, 60V Power
  Max. Surge Discharge 1500A (8/20 μs) Power
  Peak Pulse Current 36A (10/1000 μs) Data
  Shunt Capacitance <5 pF data
  Response Time <1 ns

  Read more

  Quick View
•

  Ubiquiti 48V 30W Gigabit PoE Adapter (U-POE-at)

  Ubiquiti 48V 30W Gigabit PoE Adapter
  (U-POE-at)

  48V 0.65A

  This model is able to provide 48V Passive PoE or 802.3af/at output (to
  compatible devices) up to 30 Watts.

  Delivers up to 30W of PoE+

  Compatible with the U6 LR, U6 Pro, and other PoE+ devices
  Surge, peak pulse, and overcurrent protection
  Clover to Type N power cable with ground
  LED indicator for status monitoring

  Electrostatic discharge (ESD) is the leading cause for outdoor device
  failures. You can effectively protect against ESD damage using a grounded
  Ubiquiti PoE Adapter, STP/FTP cable and shielded connectors.

  Please note that no power cord is included with this PoE injector.
  A clover to SA 3pin power cord is available for purchase separately should
  you this be required:
  https://shop.dbg.co.za/powcnd5.html

  Specifications:
  Model U-POE-at
  Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38″)
  Weight 156 g (5.5 oz)
  Output voltage 48V DC @ 0.65A
  LAN activity indicator No
  Gigabit LAN port Yes
  Remote reset capability Yes
  Reset button No
  Rated voltage 100—240V AC @ 50/60Hz
  Input current 0.75A @ 90V AC
  Inrush current <100A peak at 26℃
  Efficiency 87%
  Output ripple 1% max.
  Switching frequency 70 kHz max.
  Line regulation ≤ 3%
  Load regulation ≤ 5%
  2-pair powering Pins 4, 5 (+) and 7, 8 (-)
  4-pair powering No
  AC connector IEC-320 C6
  Data In / PoE RJ45 shielded socket
  Surge protection Difference and common mode
  Clamping protection 11V data, 60V power
  Max. surge discharge 1500A (8/20 μs) power
  Peak pulse current 36A (10/1000 μs) data
  Shunt capacitance <5 pF data
  Response time <1 ns
  Operating temperature 0 to 40° C (32 to 104° F)
  Storage temperature -30 to 70°C (-22 to 158° F)
  Operating humidity 35 to 90% noncondensing
  Certifications CE, FCC, IC, UL

  Read more

  Quick View
•

  Ubiquiti 30dBi 5GHz Lightweight RocketDish

  Ubiquiti 30dBi 5GHz Lightweight
  RocketDish

  The Ubiquiti RocketDish is a Carrier Class Dish Antenna that was designed
  to seamlessly integrate with Rocket M radios.  The RocketDish
  antenna delivers 2×2 MIMO dual-polarity performance.

  Innovative Industrial Design

  Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized
  yet lightweight components to withstand harsh outdoor conditions.

  Plug and Play Integration

  The RocketDish LW has a built-in Rocket™ mount, so no tools are needed to
  install the Rocket BaseStation.

  The RD-5G30-LW features the same gain as the RD-5G30 and adds the following
  advantages:

  Lightweight yet robust components lessen the load.

  The extended depth of the dish reflector rejects noise interference in
  co‐location deployments.

  The design of the mounting bracket allows for ease of installation on a
  pole or tower.

  Read more

  Quick View
