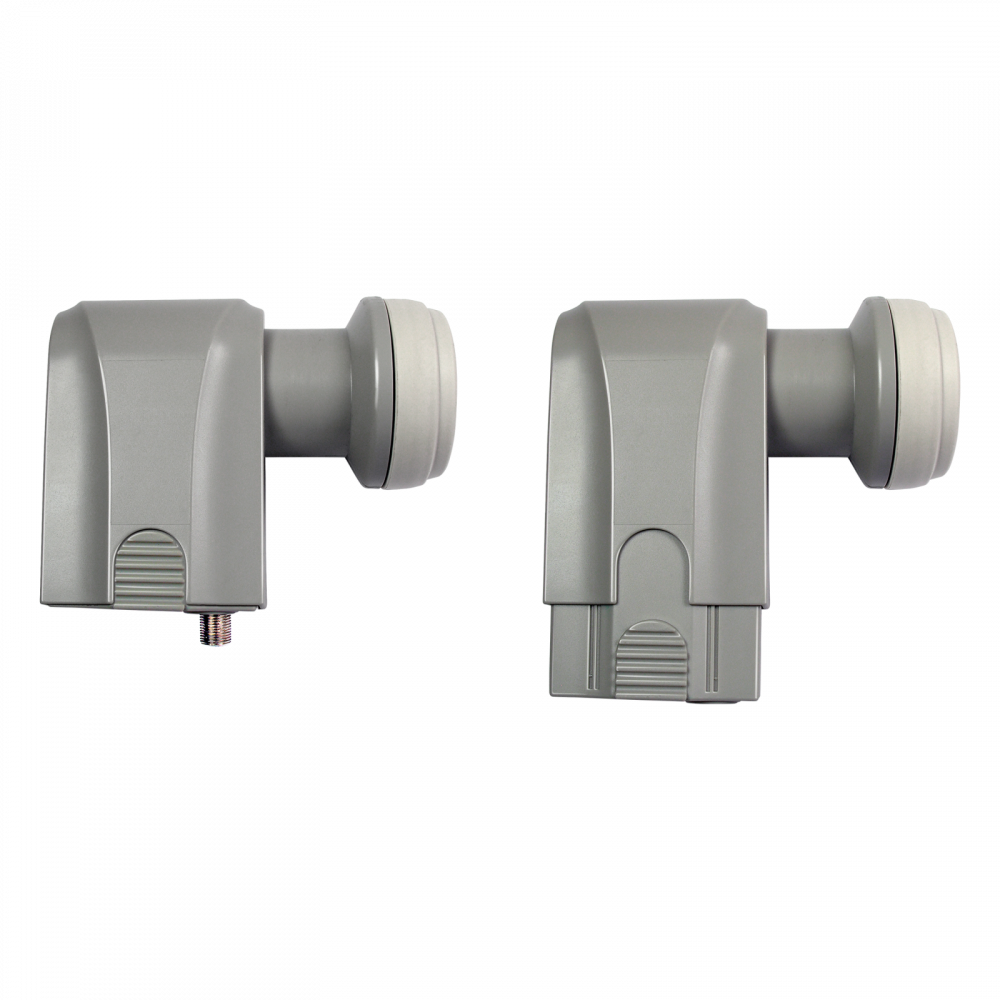

Televes 16-User band dynamic dLNB Astra 19º

KSh 10,000.00

A whole satellite distributed over a single coaxial cable
dLNB converter providing the users with the whole contents of the Astra 19º satellite. Operates in dynamic mode, in which each SAT packet that is generated is assigned to a network user by means of a User Band. With a compatible receiver, each user is able to change the packet contents at will. This method provides up to 16 UB, divided as follows: 8 UB for dCSS (SCR II), and 8 UB for dCSS/SCR I.
It is also equipped with two alignment frequencies for dish pointing: 1242 MHz (SR: 27500) and 1760 MHz (SR: 29900).

Highlights

Implements dCSS technology (SCR I – EN50494 and SCR II – EN50607), which adds value to any SAT distribution
Using a single cable reduces the complexity of the installation
Provides specific UB, such as SCR I, and transponders, such as dCSS, based on the type of the existing receivers

Main features

The frequency plan configuration is carried out with a Windows-based software (PC) stored in the programmer (ref. 723301).
Robust casing, grey colour
Compatible with 40-mm supports
Simple connection
