MikroTik  wAP ac LTE6 kit Kenya | +254100720022

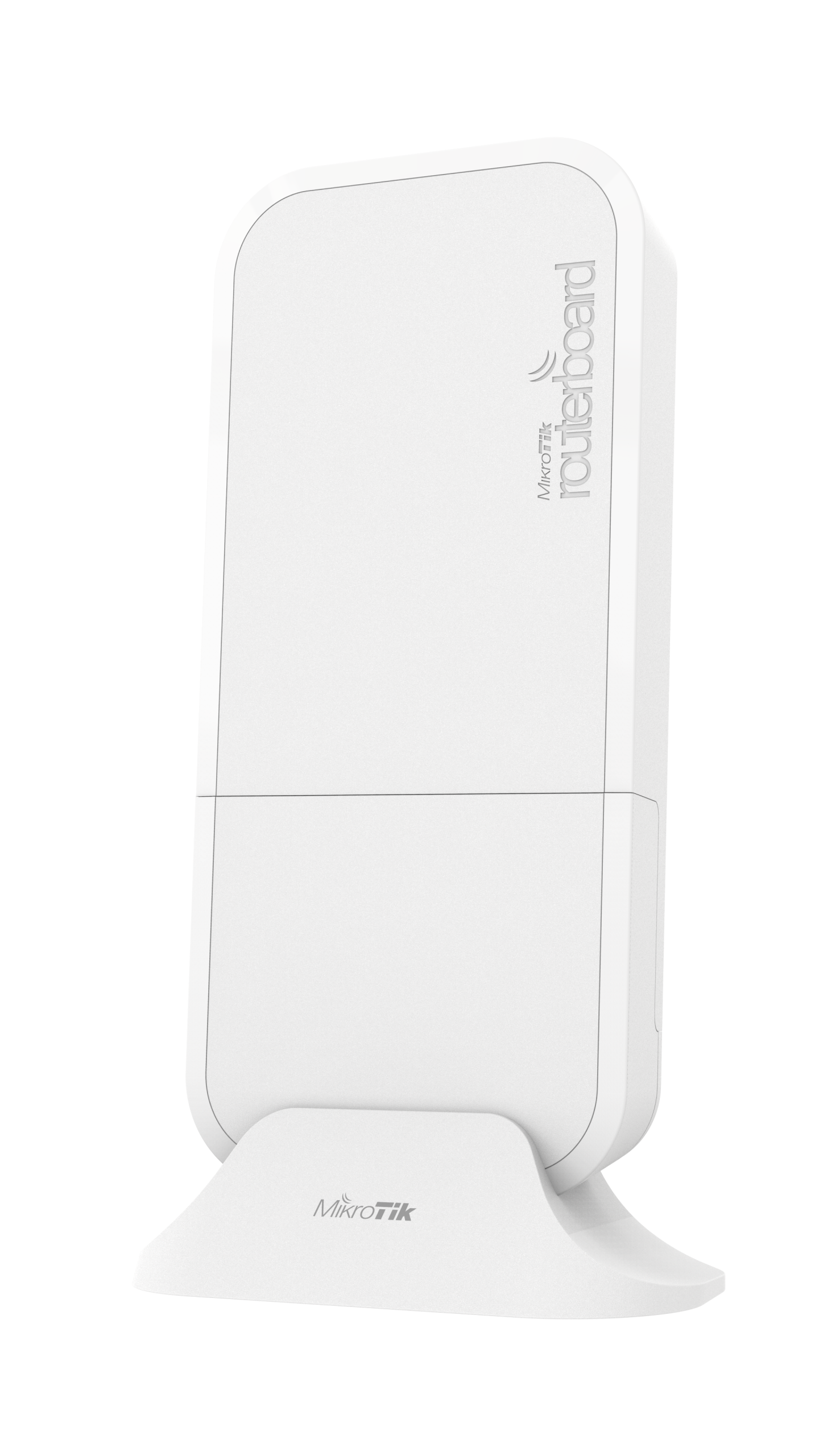

A small package with huge ambition – the
wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4
/ 5 GHz) home access point based on the popular weatherproof wAP form factor.
Its new CAT6 LTE modem enables even greater download speed – up to 300
Mbps!

CAT6 also enables carrier aggregation and allows the device to use multiple
bands at the same time. A huge advantage when there are a lot of LTE users in
the area. It provides better responsiveness in a crowded environment and
higher efficiency for weaker signal situations in the countryside.

wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as
a wired router with LTE backup via the Micro SIM slot. Alternatively, you can
enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE
is designed to deliver strong and reliable connection in almost any situation
and weather conditions. It can withstand temperatures from -30 C° to +60 C°
and can be easily mounted on walls, ceilings or poles.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4018
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes
Suggested price $209.00
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Mobile
Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink,
5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8
(900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25
(1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n
(2500MHz)
TAC 35666210
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 2
Peripherals
Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -100
11MBit/s 22 -94
6MBit/s 23 -95
54MBit/s 19 -78
MCS0 23 -95
MCS7 18 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68
Included parts

K-50 locking set

Plastic zip tie

Metal ring (one)

K-52 fastening set

Gigabit PoE injector

24V 0.8A power adapter

wAP desktop stand

wAP ceiling mount bracket

wAP mount

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
