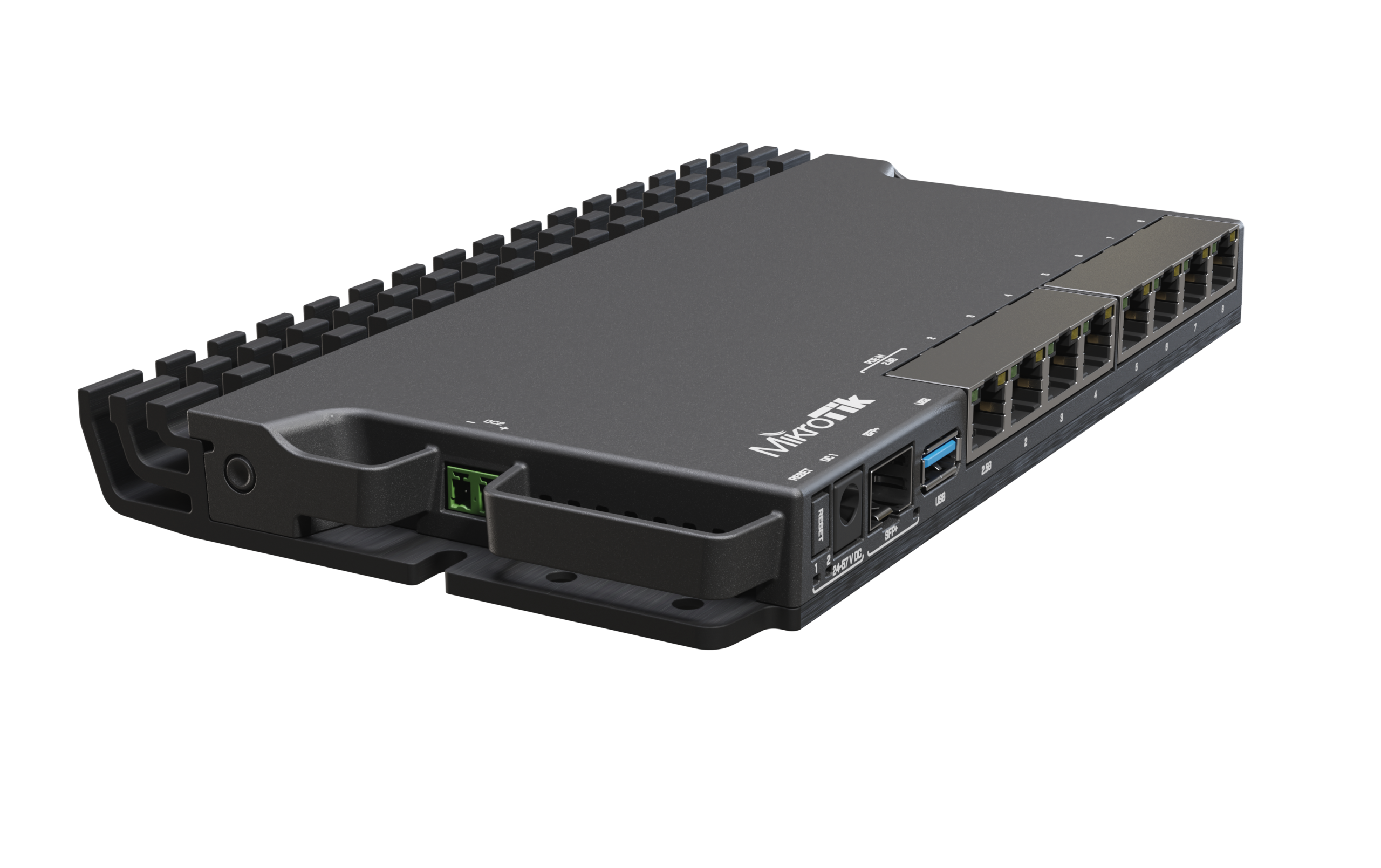

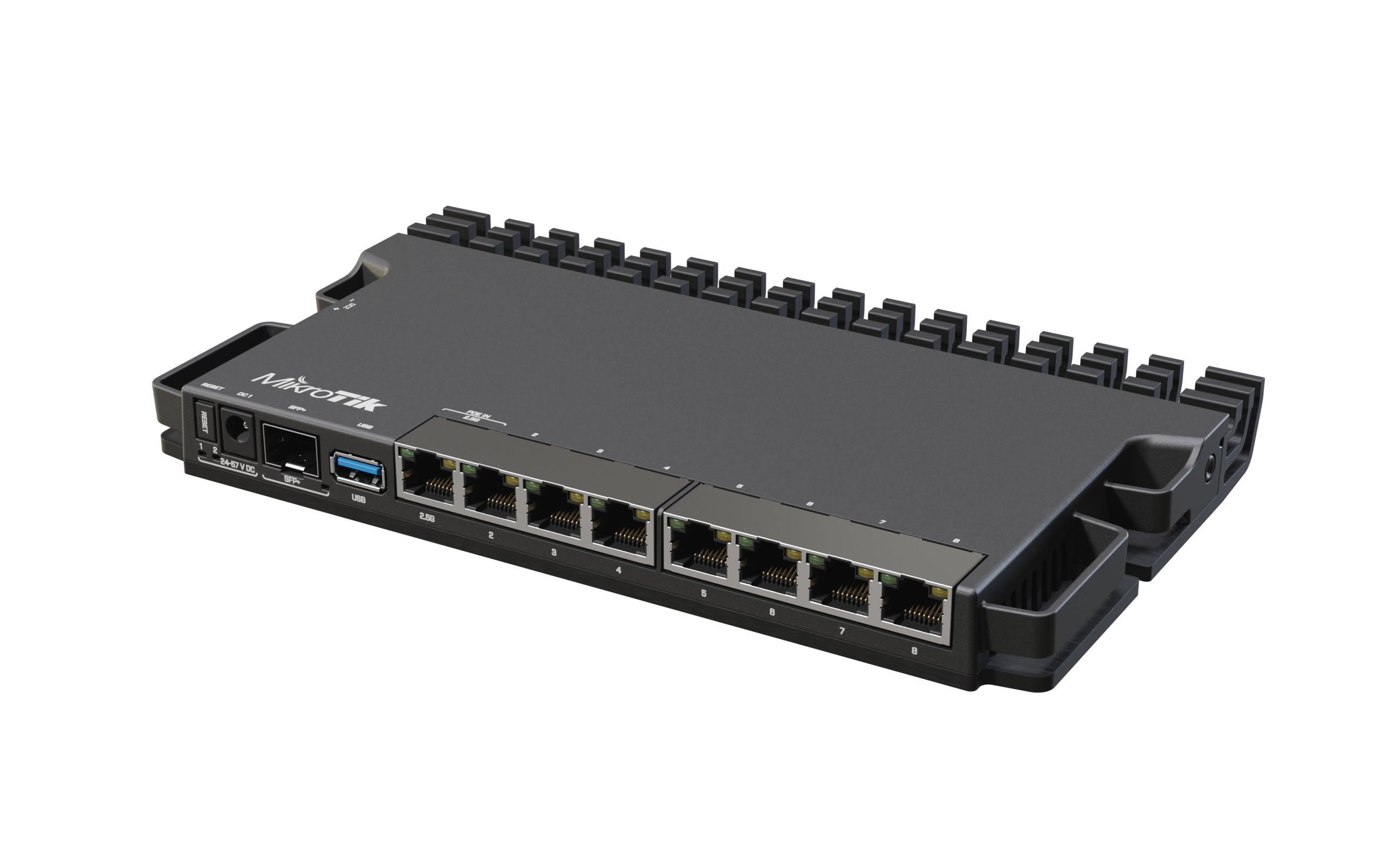

MikroTik  RB5009UG+S+IN Kenya | +254100720022

Double the usual performance: we took
your feedback from the – MikroTik User Meetings to create the perfect home lab
router: compact, powerful, with multiple powering options and efficient
cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the
ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last
one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell
Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the
Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are
located on the bottom of the board – so the case acts as a massive
heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of
ports and components, compared to our other products in a similar form
factor, provides almost double the performance in configurations with heavy
CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these
routers in a single 1U rackmount space! No more server-room-Tetris, just pure
productivity.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes
Suggested price $219.00
Powering
Details
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 25 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Ethernet
Details
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1
Fiber
Details
SFP+ ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
CPU temperature monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
Included parts

K-55 screw kit

24V 1.5A power adapter

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
