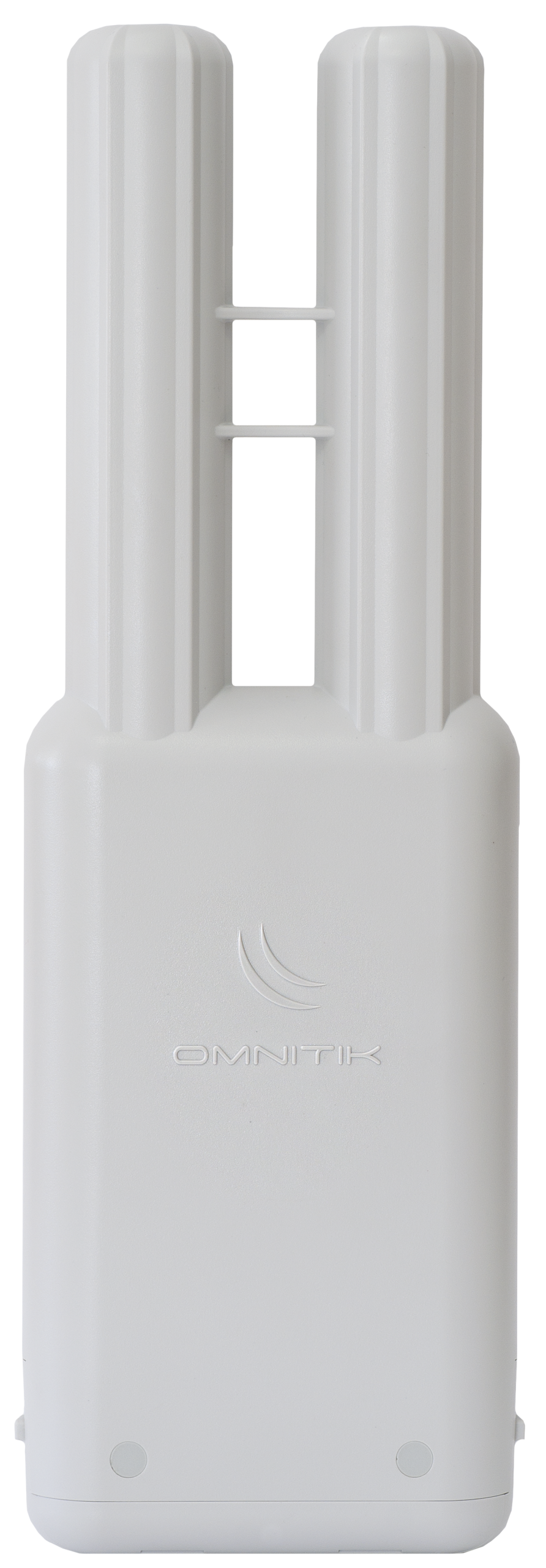

OmniTIK is a weatherproof outdoor AP with
dual-polarized omni antennas – the perfect companion for our SXT, or for any
other 802.11 standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports,
PoE support and a built-in 802.11a/n wireless radio. It supports Nv2 TDMA
technology with up to 200Mbit aggregate throughput.

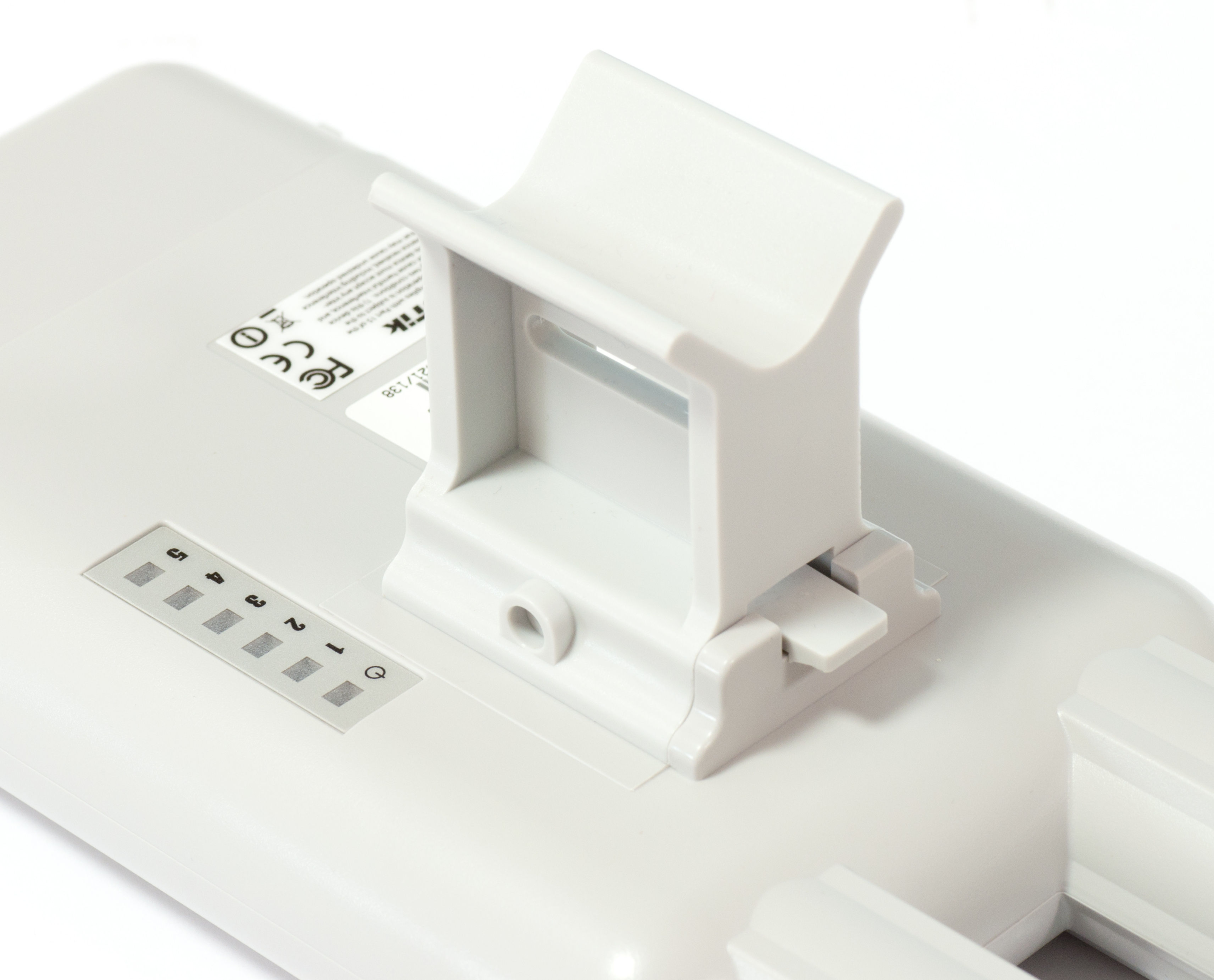

LED signal indicators on it’s back are fully customizable, show Ethernet
activity or wireless signal – or any other information from RouterOS. The USB
port gives the ability to connect a 3G modem or a storage drive. The OmniTIK
runs RouterOS with all it’s features

Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power
adapter

– RBOmniTikU-5HnD-US (USA) is factory locked for 5170-5250MHz and
5725-5835MHz frequencies. This lock can not be removed.

– RBOmniTikU-5HnD (International) supports 5150MHz-5875MHz range (Specific
frequency range can be limited by country regulations).

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBOmniTikU-5HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Switch chip model AR9344
Dimensions 368x125x55mm
RouterOS license 4
Operating System RouterOS v5 and above
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $89.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 7.5
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 5
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
Beeper Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 26 -75
Included parts

Metal ring (one)

PoE injector

24V 0.8A power adapter

Pole mounting bracket

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
