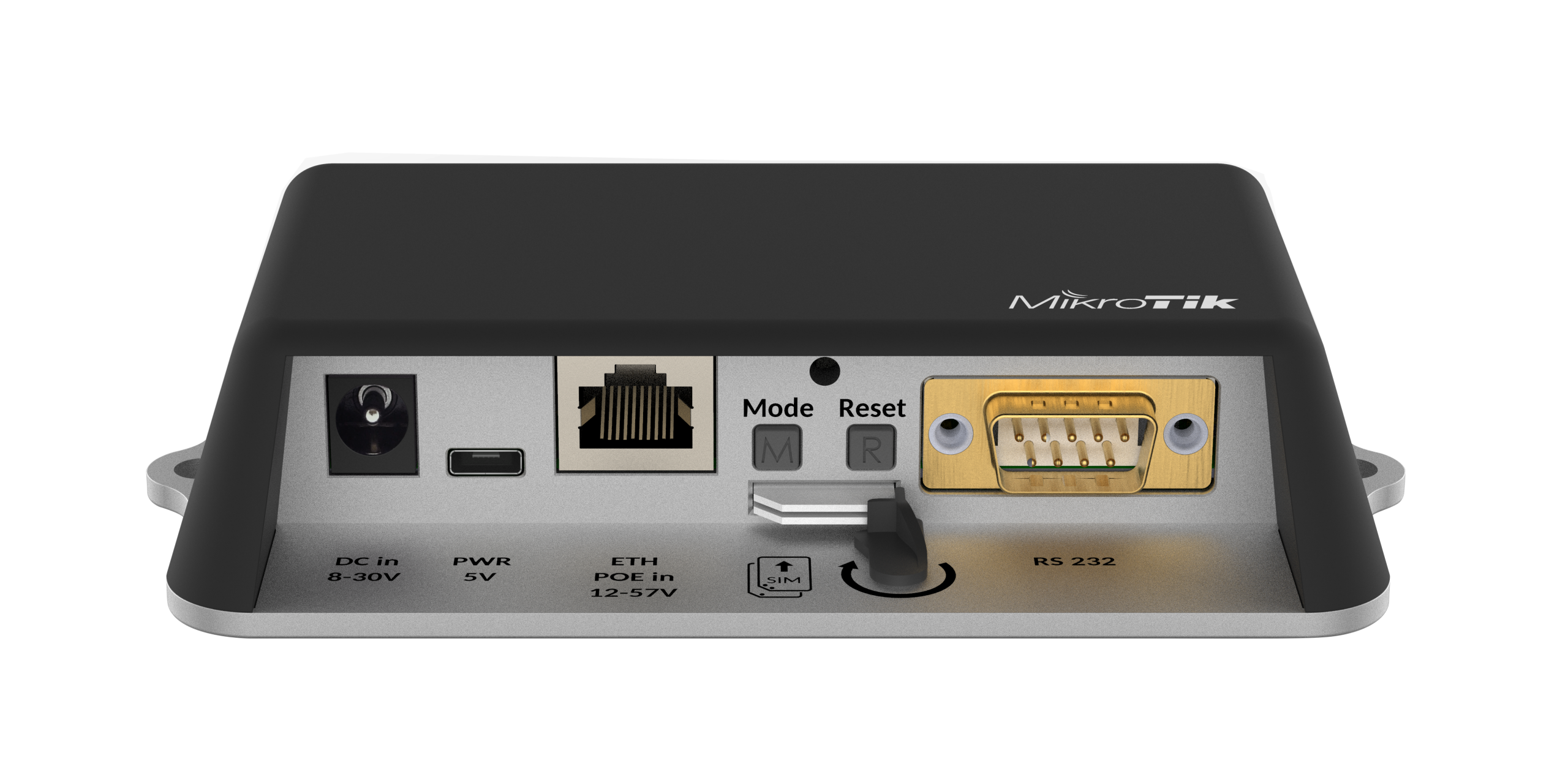

MikroTik  LtAP mini LTE kit Kenya | +254100720022

The LtAP mini LTE kit is a small
weatherproof wireless access point with a built in cellular modem that
supports 2G, 3G and 4G (LTE) connectivity on International LTE bands
1,2,3,7,8,20,38 and 40.

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE
network from your phone or any other wireless device. The LtAP mini LTE also
has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial
port gives you console access for debugging.

LtAP mini has a special enclosure with a wall mounting kit, two SIM slots
to alternate between cellular providers, and integrated GPS support, making
this a perfect device for use in moving vehicles like cars, buses or trains.
External GPS antenna is available for ordering separately (not included,
product code ACGPSA).

The LTE card is connected to two internal antennas with u.FL connectors, so
if you want, you can unplug the connectors and add your own external LTE
antenna for better coverage. The unit has several powering options: 12-57 V
PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.

Use the built in GPS module to track the location of your vehicle in real
time, we have even provided a simple tracking application example in the
RouterOS documentation, to help you start development of your platform.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RB912R-2nD-LTm&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 139 x 77 x 28,5 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 50°C
Suggested price $149.00
Powering
Details
MicroUSB input Voltage 5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-30 V
Max power consumption 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Mobile
Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8
(900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
TAC 35565409
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
Mode button Yes
GNSS standards GPS
GPS RF connector type uUFL
Certification & Approvals
Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
Included parts

K-55 screw kit

External DC cable

PoE injector

24V 1.2A power adapter

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
