MikroTik  LtAP LTE kit Kenya | +254100720022

Introducing LtAP LTE kit– a heavy-duty 4G
(LTE) access point with GPS support.

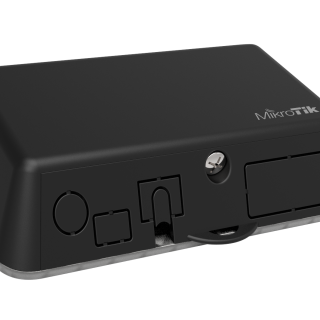

The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless
access point – perfect for busy urban environment or off-the-grid outdoors
networking. It has a built-in cellular modem that supports 4G (LTE)
connectivity – no need for additional devices, it works out of the box.

Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure
access to LTE network from your phone or any other wireless device with up to
150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for
your wired devices. There are several power options – DC jack, POE-in and
automotive.

The rugged and extremely durable case with a special wall mounting kit will
be perfect for almost any challenge: from public transportation, food trucks
or logistics to harsh winter and stormy desert environment. LtAP can handle
any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for
tracking vehicles in real time. We have provided a simple tracking
application example in the RouterOS documentation to help you get started.
LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time
and money worldwide!

The unit comes with an extra miniPCIe slot, offering many expansion
options. For example, you can install a second LTE modem for redundancy or a
5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another
miniPCIe slot is already populated with the LTE modem.

LtAP has a RS232 serial port, which gives you console access for debugging,
as well as full size USB for other devices.

RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE
bands 1,2,3,7,8,20,38 and 40.

The new LtAP LTE kit is more than an access point – it is what you need it
to be wherever you need it to be.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBLtAP-2HnD&R11e-LTE
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 50°C
IPsec hardware acceleration Yes
Suggested price $249.00
Powering
Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V
Mobile
Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8
(900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
TAC 35565409
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9382
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100/1000 Ethernet ports 1
Peripherals
Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS
Certification & Approvals
Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
Included parts

0.35m 4pin Automotive adapter cable

K-67 fastening set

24V 1.2A power supply (straight plug)

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
