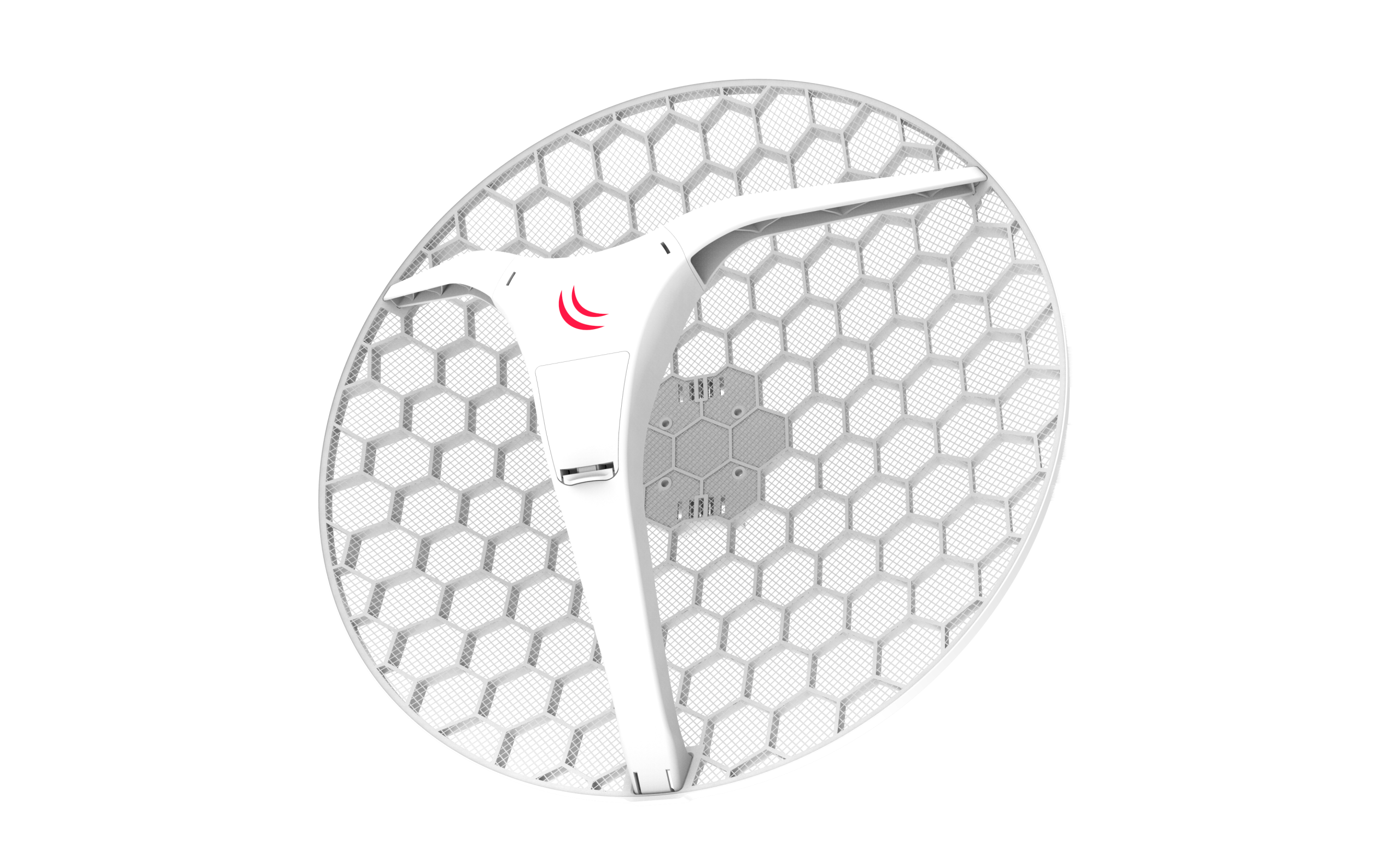

The LHG XL HP5 is a 5GHz 802.11 a/n
wireless device with an integrated dual polarization 27 dBi grid antenna and
high TX output power, designed to reach up to 40km in point-to-point setups
at full speed.

The grid design ensures protection against wind, and the fact that the
antenna element is built into the wireless unit means no loss on
cables.

Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) – 4 antennas in a single
box

We have two versions available.

LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz
frequencies. This lock can not be removed.

LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific
frequency range can be limited by country regulations).

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBLHG-5HPnD-XL
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 550 x 245 mm;
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $89.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75
Included parts

24V 0.38A power adapter

Metal rings (two)

PoE injector

K-LHG kit

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
