MikroTik  LDF 5 ac Kenya | +254100720022

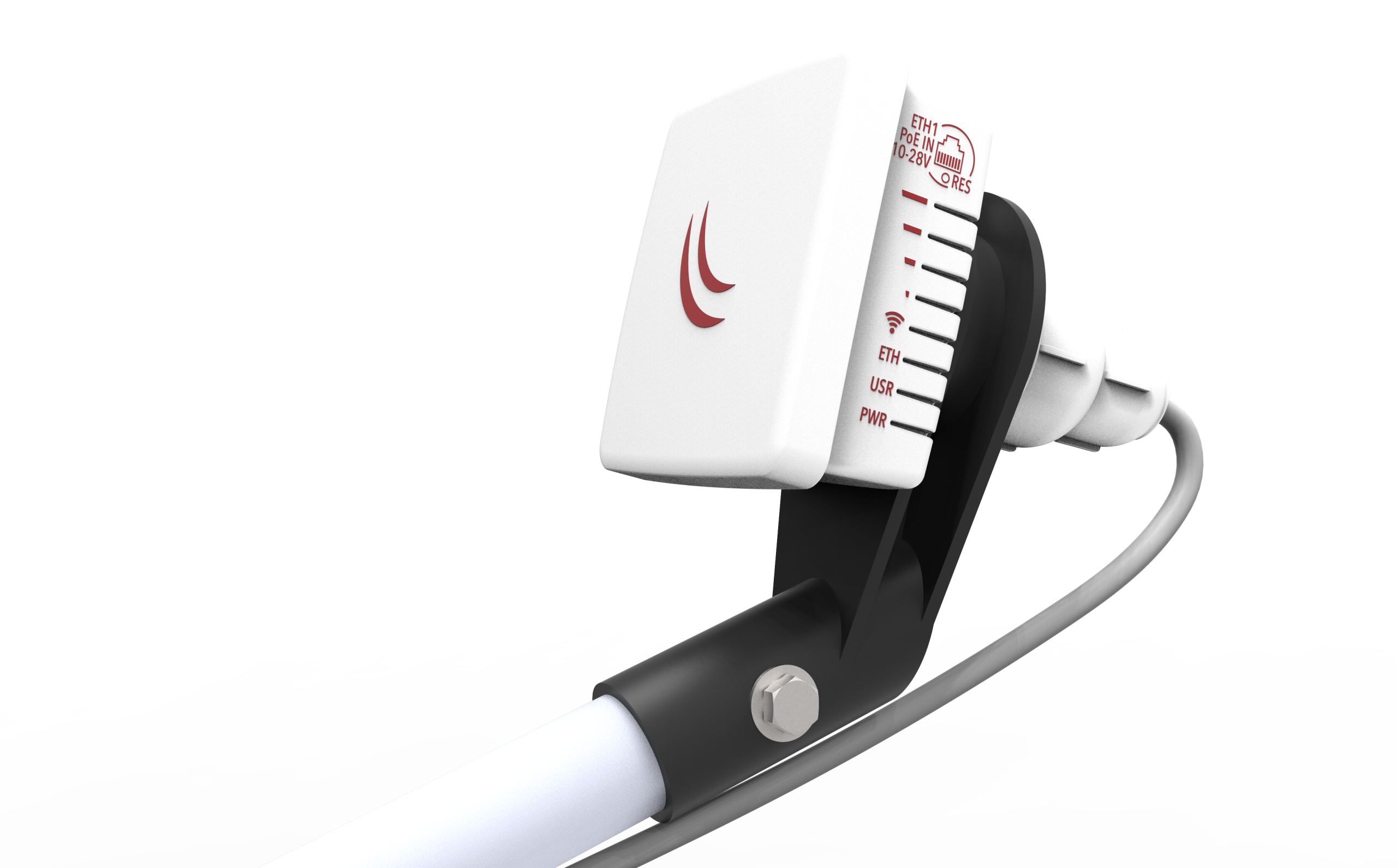

The LDF (Lite Dish Feed) is an outdoor
wireless system with a built in antenna, meant to be installed on satellite
offset dish antennas. The dish will act as a reflector, amplifying the
signal.

This means you can use any available satellite TV dish with an offset mount
to quickly deploy powerful long range wireless links. The offset mount is
universal at 40 mm diameter, and the LDF can easily be placed inside it.
Since the LDF itself is a tiny little package, it makes shipping and deployment
simple and low cost.

LDF 5 ac is equipped with a Gigabit port and supports 802.11ac for higher
throughput.

– LDF 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz
frequencies. This lock can not be removed.
– LDF 5 ac (International) supports 5150MHz-5875MHz range (Specific
frequency range can be limited by country regulations).

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBLDFG-5acD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 84mm x 84mm x 115mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $68.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 9
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70
Included parts

24V 0.38A power adapter

Gigabit PoE injector

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
