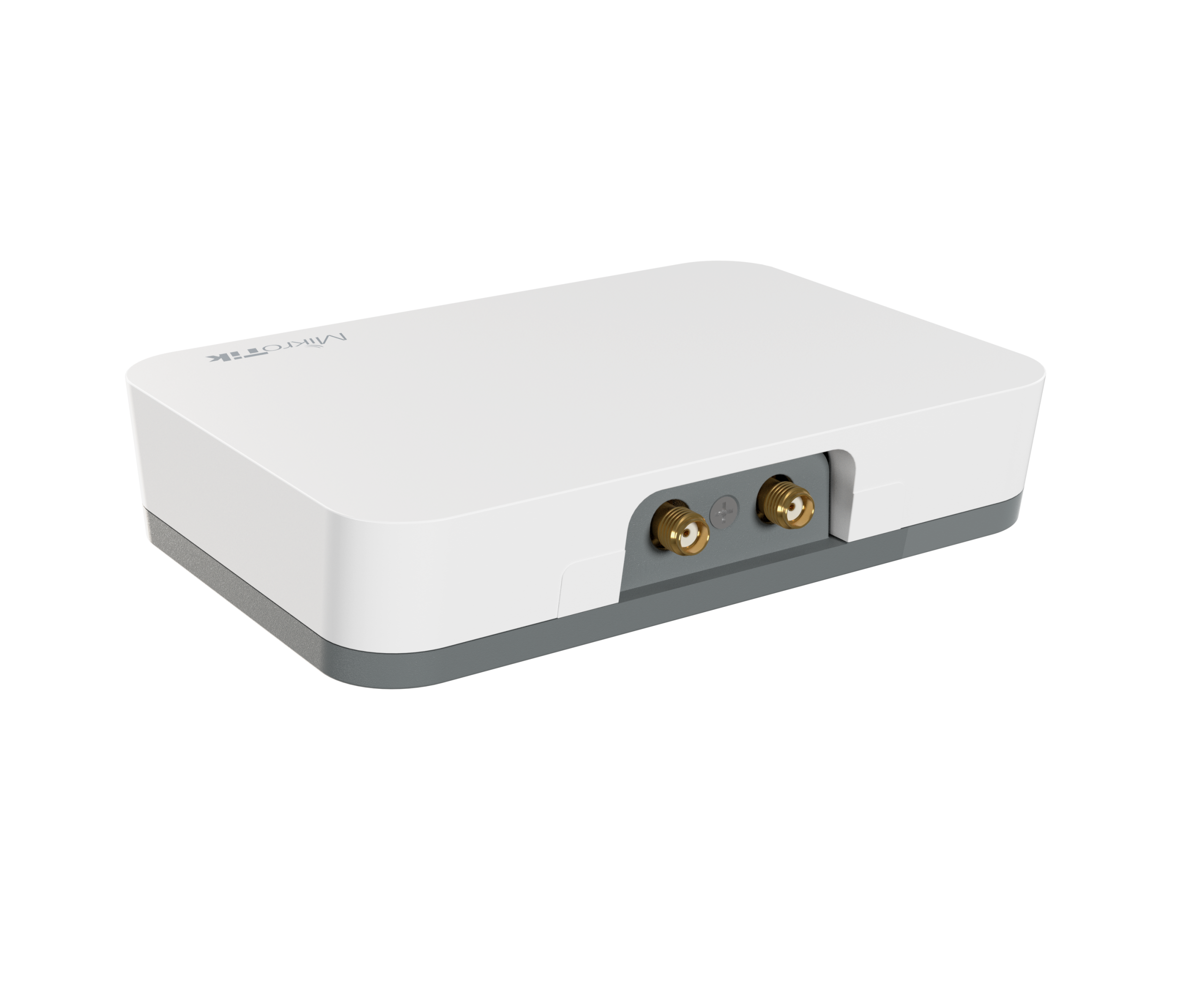

The newest addition to the – MikroTik IoT
product family – KNOT – is a truly universal device with exceptional
connectivity options and protocol support. It is an IoT Gateway that uses
Narrow Band and CAT-M technology. Because of the low cost, low bandwidth
cellular connection, it is supported by countless mobile operators around the
globe.

KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even
forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.

You can use the KNOT as a TCP bridge from wired Modbus sensors to send
readings to a Modbus server. Yes, the KNOT brings wireless connectivity to
wired sensors, such as electricity meters and relays.

It could be used as a backup connection for the Ethernet or as a management
channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why
spend extra money on bandwidth you don’t need? For example, you can manage a
KNOT-powered vending machine with temperature and liquid sensors with only a
few megabytes per day!

KNOT features so many protocol support and connectivity options:

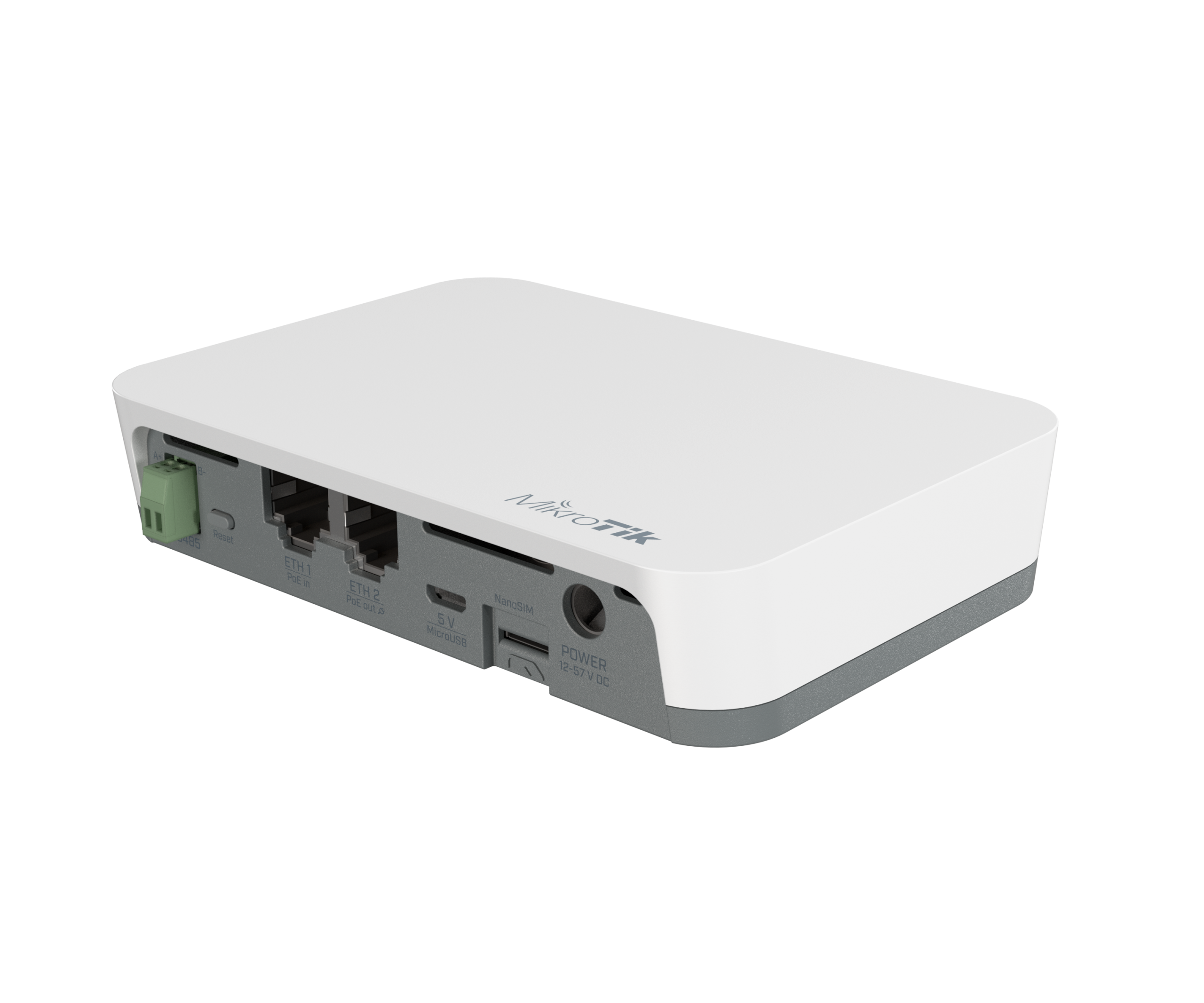

2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and
PoE-out, Micro-USB. Maximum convenience at the lowest cost!

With the Bluetooth interface, you can use the KNOT for asset tracking and
telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag
that sends advertisement data. iBeacon, Eddystone or any other format.

It has powerful filters for forwarding only relevant packets and ignoring
others.

KNOT is a great tool for most outdoor cabinet IoT applications as well. It

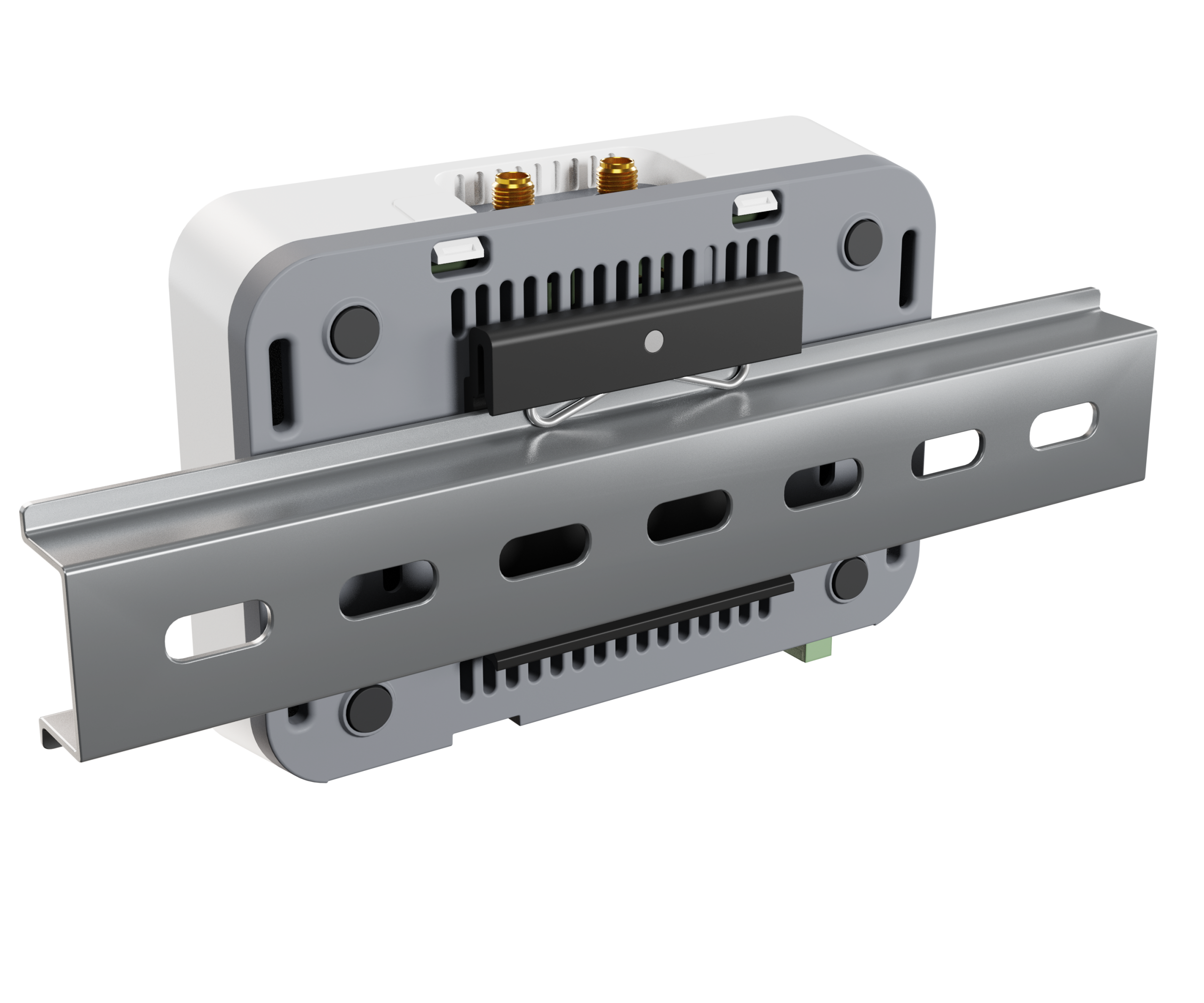

comes with a DIN rail mount that allows easy integration with all kinds of
setups: from agriculture and asset tracking to cold chain monitoring,
industrial manufacturing, and so on.

Bring flexible low-cost connectivity to the most remote or tricky areas
with the – MikroTik KNOT!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RB924i-2nD-BT5&BG77
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 122 x 87 x 26 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00
Powering
Details
MicroUSB input Voltage 5 V
Number of DC inputs 3 (MicroUSB, DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 18 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V
PoE-out
Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Total output power 12
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 2
Peripherals
Details
Number of SIM slots 1 Modem (Nano SIM)
Serial console port RS485
Number of USB ports 1
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Bluetooth version 5.2
Bluetooth RF connector type uUFL
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
Included parts

24V 1.2A power adapter

K-47 wall mount set

USB OTG cable

DIN rail mount set

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..-
……………………………………………………………………
