MikroTik  GPEN21 Kenya | +254100720022

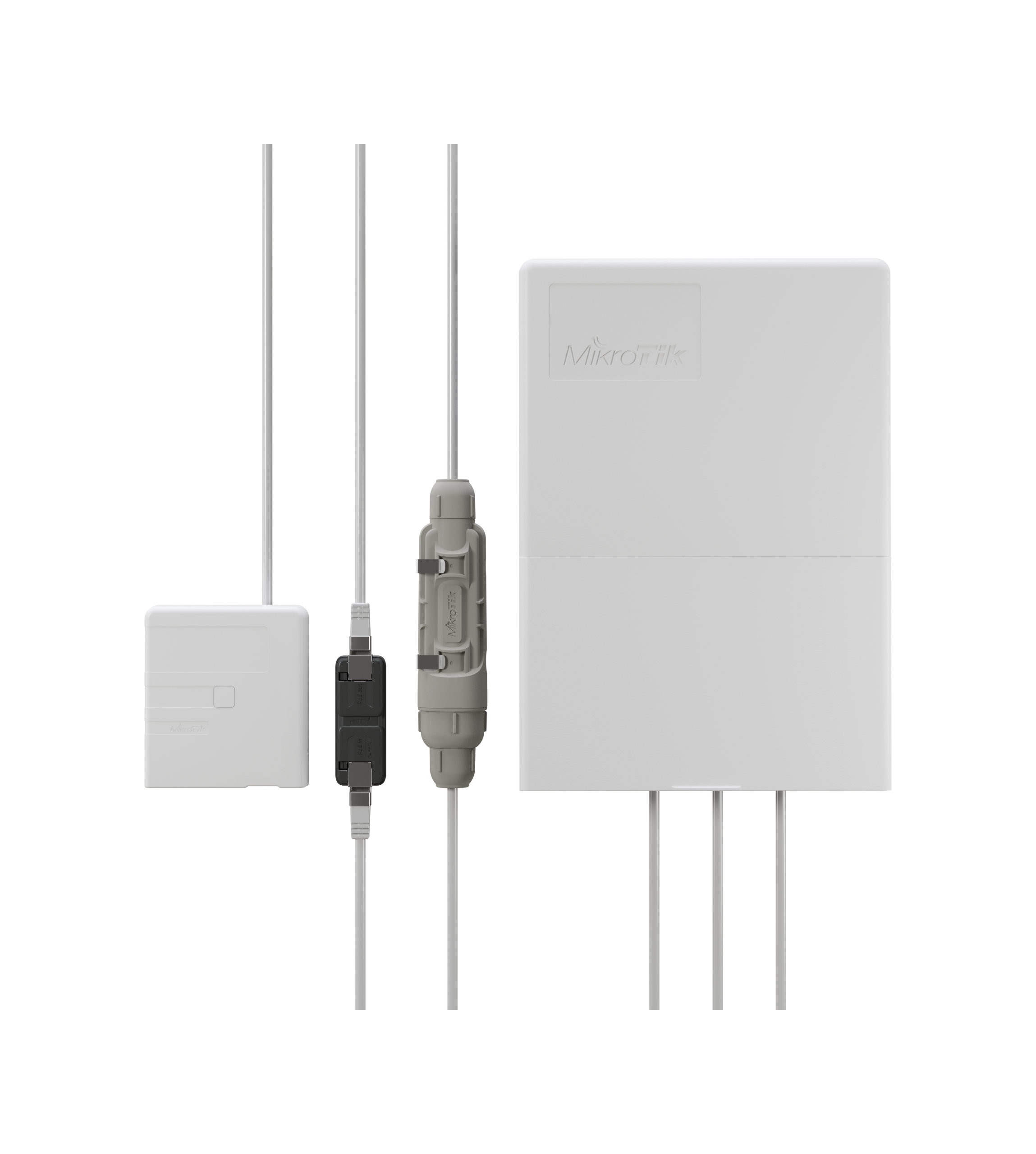

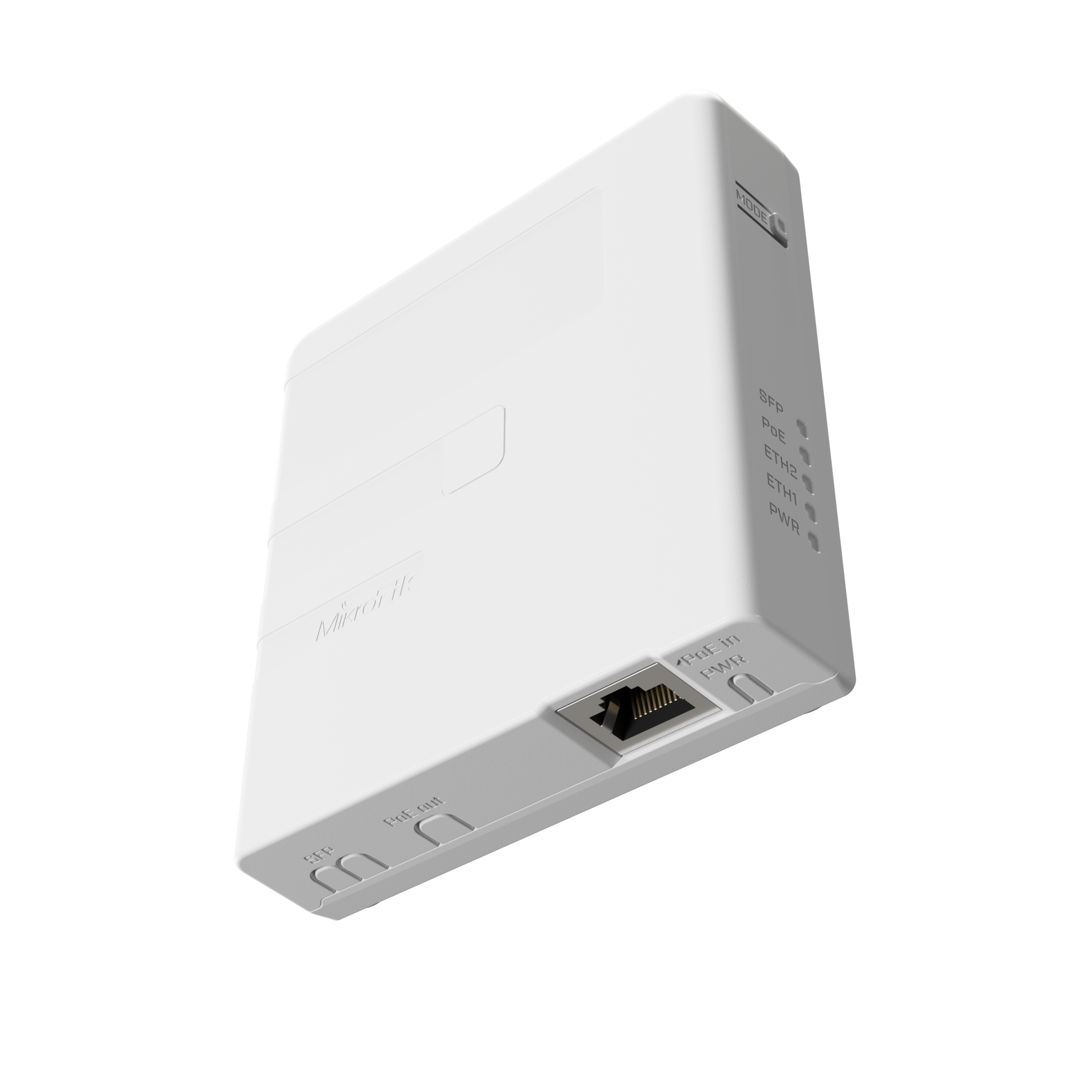

The GPEN21 is a smart power injector that
serves as an advanced software controlled repeater. Not only can it power
your uplink devices via PoE, it can also provide a range of useful software
features:

• Interface management and monitoring

• GPEN link fault detection

• VLAN support

• SNMP reporting

• Basic traffic shaping

GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can
choose to use GPEN21 to power optical module for uplink to provider, or to
provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or
netPower products) The GPEN unit can be securely attached to a wall or the
communications cabinet. The Ethernet cable can be routed either directly
through its bottom cable opening or into the wall, as preferred.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
Specifications
Details
Product code GPEN21
Switch chip model 88E6341
Input voltage 12 – 57 V, Passive or 802.3af/at
Tested ambient temperature -20°C to 70°C
Suggested price $40.00
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 30 W
Max power consumption without attachments 3 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
PoE-out
Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 850 mA
Max out per port output (input 30-57 V) 625 mA
Max total out (A) 850 mA
Ethernet
Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1
Fiber
Details
SFP ports 1
Other
Details
Output Voltage Yes, Passive PoE up to 57 V
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
Included parts

K-62 kit
