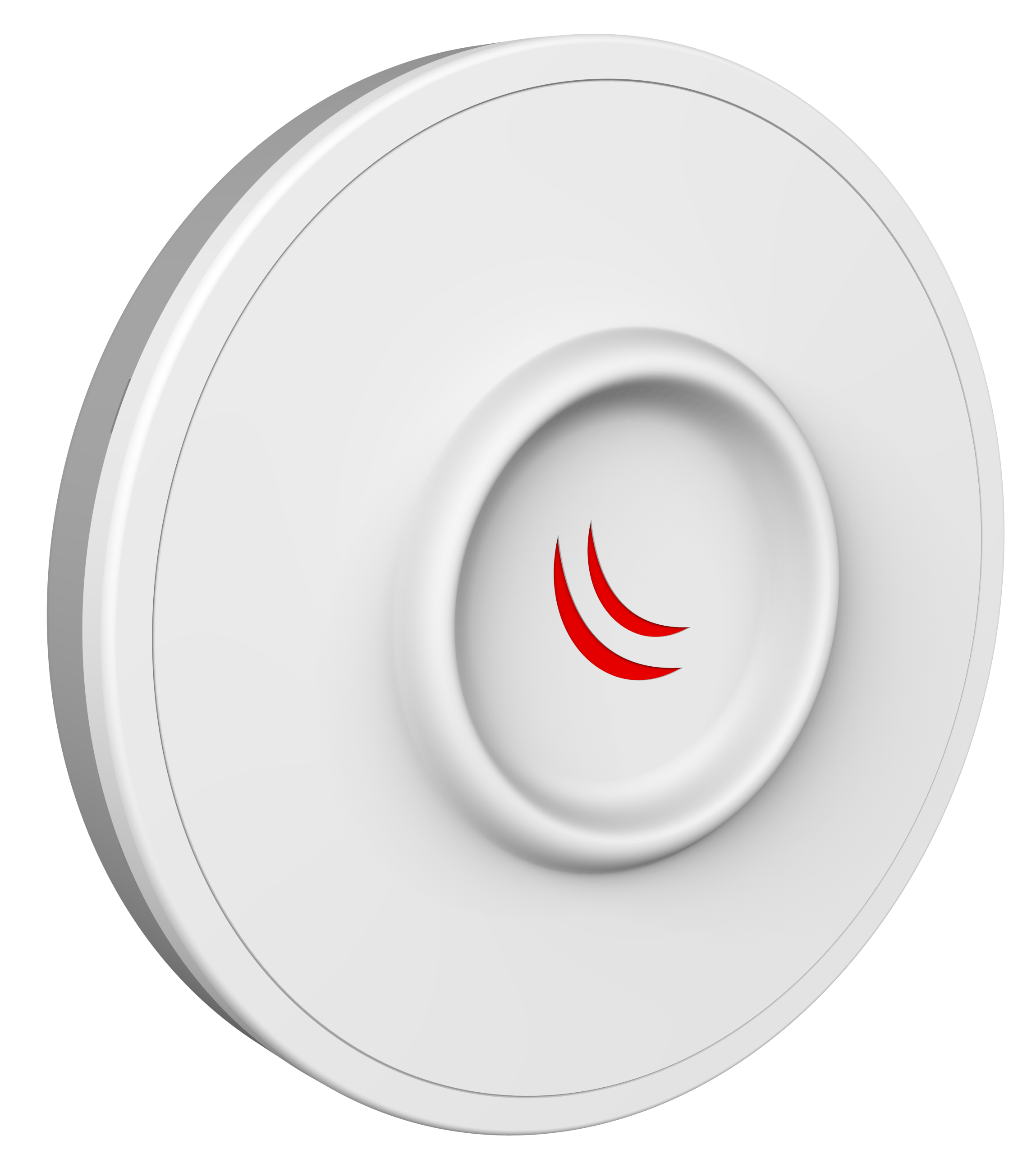

The DISC is a low cost high gain 5 GHz
CPE. We have improved antenna design, added Gigabit Ethernet port and
802.11a/n/ac support to achieve even more speed on longer distances.

DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac
integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and
RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE
injector and a mounting ring. The device is also compatible with our SXT
mounting systems, including the quickMOUNT pro series.

The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz
Point-to-Point links.

– DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and
5725-5835MHz frequencies. This lock can not be removed.

– DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific
frequency range can be limited by country regulations).

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBDiscG-5acD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions ⌀ 265mm, height: 80mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $79.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 21
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70
Included parts

24V 0.38A power adapter

Metal ring (one)

Gigabit PoE injector

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
