A 100 Gigabit switch for enterprise
networks and data centers. Hot-swappable parts and insane port density with
1.2 Tbps switching capacity!
…………….
MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
ORDER NOW!! +254100720022 / +254720548999
As our 100 Gigabit product family grows,
the time has come to introduce a serious enterprise-level switch. A switch
that is up for the challenge when the CRS504 port density is just not enough.
Introducing the spectacular CRS518-16XS-2XQ!
With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is
the perfect cost-effective addition to any enterprise network or data center.
And with dual-redundant hot-swappable power supplies and fans, you won’t have
to worry about unnecessary downtime.
Here’s a real-life setup – similar to the one we’re using in our
office:
At the top, you could place two flagship CCR2216 routers to provide the
main connectivity and routing. Then a blazing-fast 100 Gigabit connection
leads to three CRS518 distribution level switches. This is where all the
magic happens. The CRS518 switches connect every access level device to the
main network, deal with traffic filtering, and network policy enforcement.
And they handle all that with grace and dignity – thanks to the fantastic
Marvell Prestera Aldrin2 switch-chip. The same chip you’ve seen in our
flagship CCR2216 that did wonders with L3 Hardware Offloading.
The 25-gigabit ports are backward compatible with 10 Gigabit and 1 Gigabit
SFP devices. Mix and match as you need!

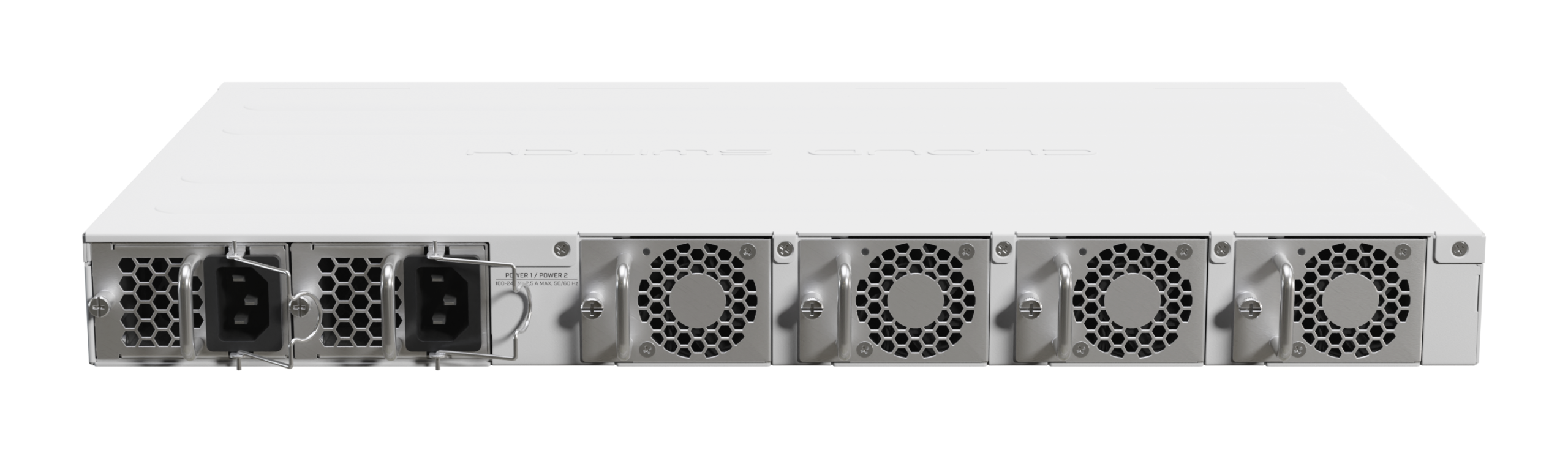

The two hot-swap power supplies support a high input voltage range:
100-240V. The board itself uses up to 45W of power, while the total maximum
power consumption goes up to 77W with all the attachments. It can be a bit
more power-hungry than the CRS504, but you would be too if you had 16x
25-Gigabit ports, wouldn’t you?
Our 100 Gigabit product family keeps growing: switches, routers, cables,
and QSFP28 modules. If you want real speed and ultimate flexibility for the
best price on the market – you want MikroTik!
Nothing can stop this switch: it supports VLAN (802.1Q, 802.1ad), L3
hardware offloaded routing, ACL, LACP, MLAG, Jumbo frames, IGMP/MLD snooping,
and so on. Keep your RouterOS up to date and enjoy the real power of
CRS!
Send purchase questions
Specifications
Support & Downloads
Gallery
Test results
Specifications
Details
Product code CRS518-16XS-2XQ-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX8525
RouterOS license 6
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $1595.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 95 W
Max power consumption without attachments 45 W
Cooling type 4 fans
Ethernet
Details
10/100 Ethernet ports 1
Fiber
Details
Number of 25G SFP28 ports 16
Number of 100G QSFP28 ports 2
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
Included parts
Rack ears for CRS518-16XS-2XQ
IEC cord
IEC cord
K-54 kit
The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
