MikroTik  Chateau LTE12 Kenya | +254100720022

Let’s face it – most of the standard
issue access points can’t really satisfy the extremely diverse client base –
they either lack features, users want more speed and higher gain, the price
is too high or they look weird. We decided to take all the aspects that are
important for most home users and create a single device that will make them
happy – this is the – MikroTik Chateau.

It is a high-speed, dual-band home access point with CAT12 LTE – for really
fast Internet anywhere, anytime. But LTE is not the only option – Chateau

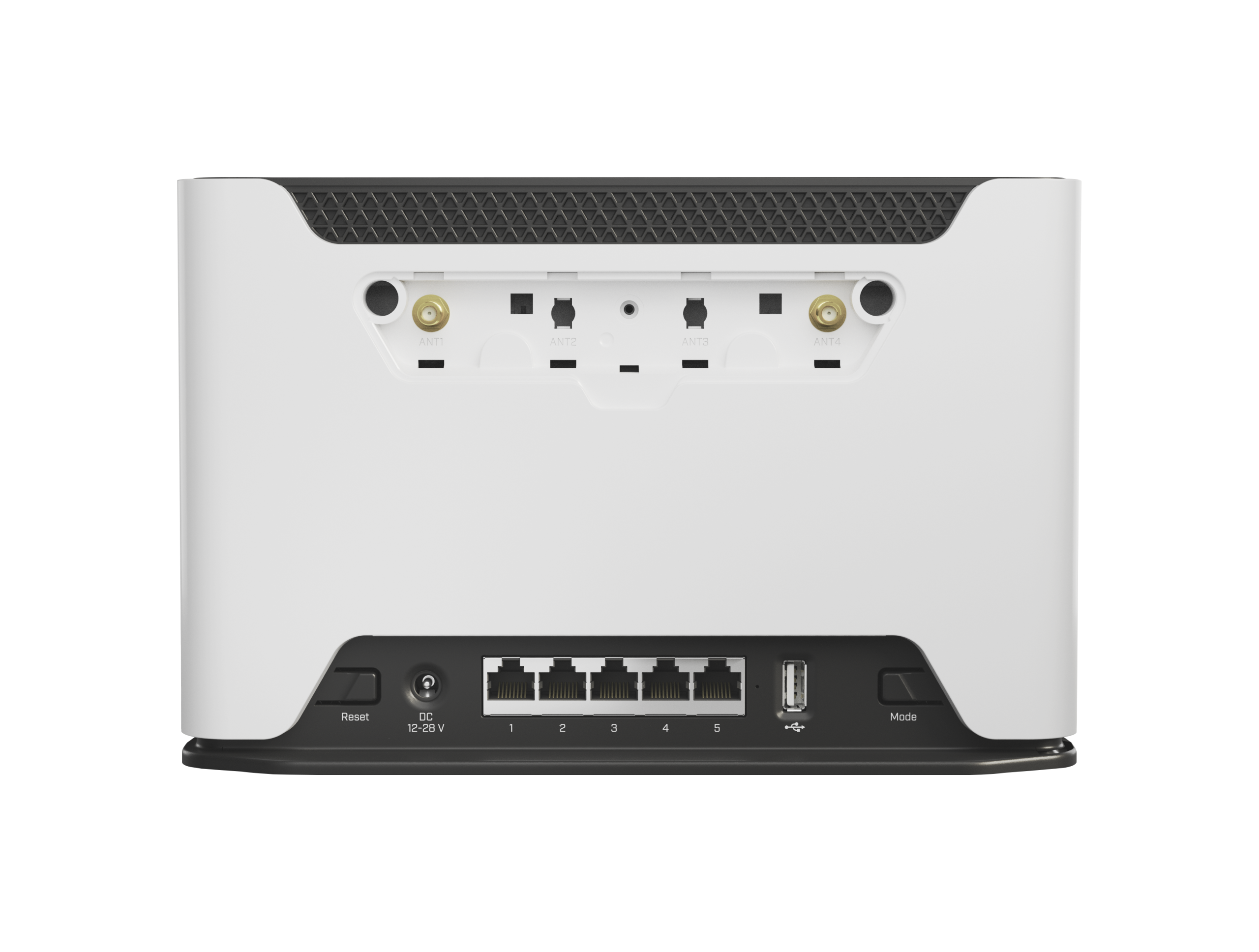

also features 5 x Gigabit Ethernet ports and a full size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will
solve most interference issues in a crowded environment. For example, a
client can simultaneously use the 2.4 GHz channel for all household mobile
devices and reserve the 5 GHz channel for tasks that are sensitive to packet
loss – such as streaming high-quality videos.

Not only our RouterOS software comes with robust security options, we also
focus on the production security. There is no outsourcing, every device is
assembled in our premises and all the components come from reputable, trusted
partners – such as Qualcomm. We cooperate with European law-makers and work
hard to ensure full compliance with all the necessary safety policies.
– MikroTik is all about smooth, long-term cooperation without surprises.

Reach speeds of up to 600 Mbps with carrier aggregation, as CAT12 allows devices
to use three bands at the same time. That is a huge advantage when there are
a lot of LTE users in the area. Chateau LTE12 provides better responsiveness
in a crowded environment and higher efficiency for weaker signal situations
in the countryside.

Depending on the service provider, we have seen Internet speed doubling in
rural areas after switching to carrier aggregation, so there is no need to
wait for cable network expansions.

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBD53G-5HacD2HnD-TC&EG12-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $229.00
Powering
Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 23 W
Max power consumption without attachments 17 W
Cooling type Passive
Mobile
Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3 (1800MHz)
LTE Category 12 (600Mbps Downlink, 150Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900
MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86056104
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 5
Peripherals
Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
Included parts

UTP Flat Cable (1.5m)

24V 1.2A power supply (straight plug)

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..-
……………………………………………………………………
