MikroTik CCR2004-16G-2S+PC Kenya | +254100720022
Up to 300% faster than the previous
CCR1009 routers – in a blissful silence! Luxury you deserve for the price you
can afford. 16x Gigabit Ethernet ports, 2x10G SFP+ cages.
…………….
MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
ORDER NOW!! +254100720022 / +254720548999
Like the other models in CCR2004 series,
this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit
ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router
can be 3x as fast than the previous generation CCR’s. This is the silent
powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of
all the hum and buzz in your office, studio, server room or homelab without
sacrificing the performance!

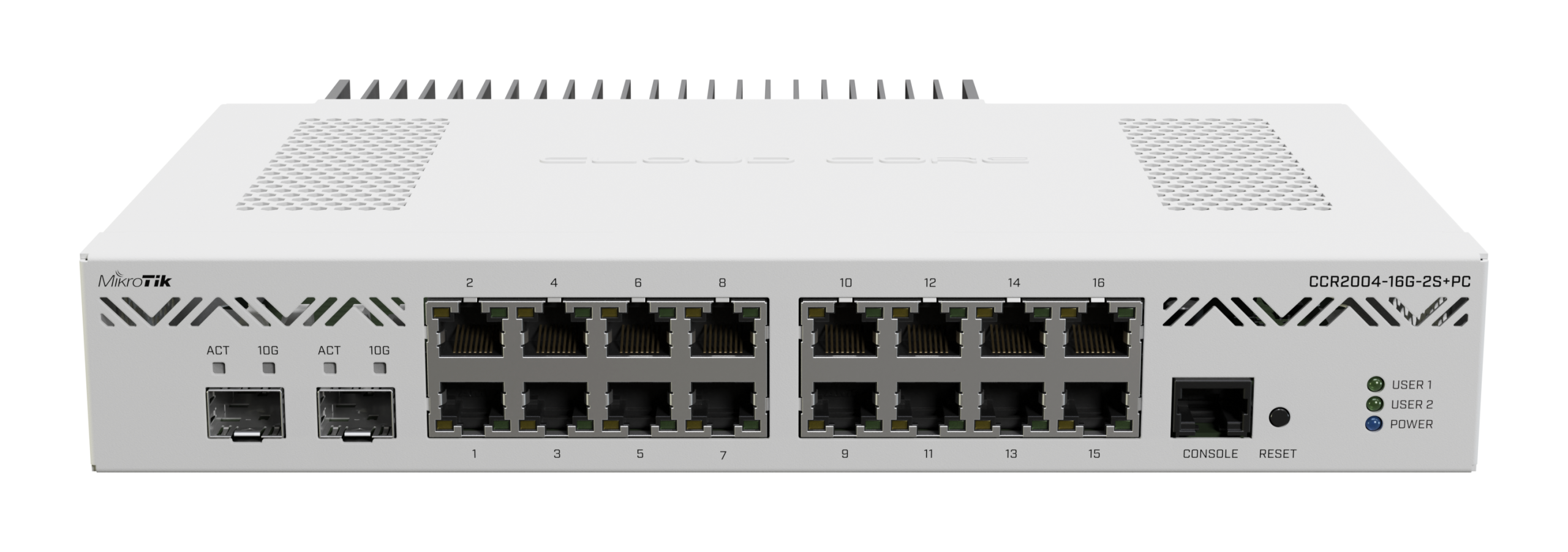

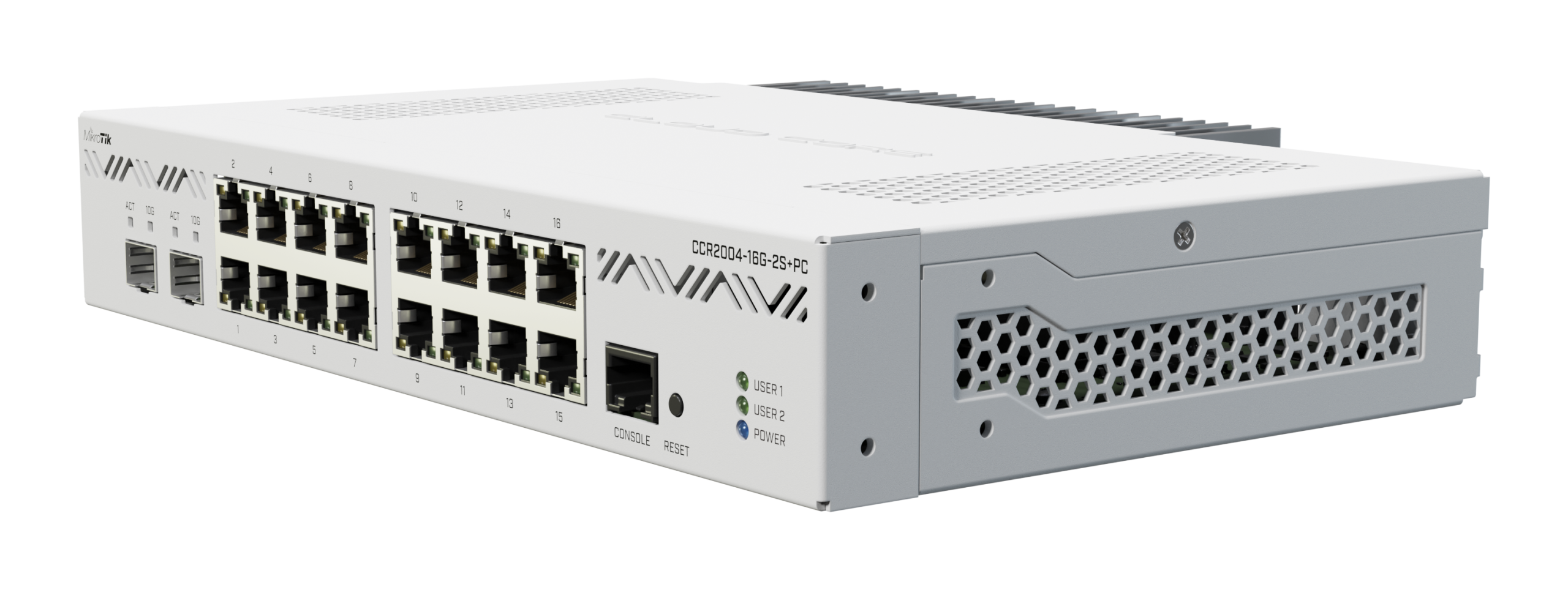

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and
two 10G SFP+ cages. It also has a RJ-45 console port on the front
panel.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell
Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line
connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps
full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND
storage.
So as you can see – no bottlenecks. As long as the CPU can handle the
processing, all ports can reach wire speed. And this CPU is a beast that can
handle a lot. If we look at the performance, you can see that it is trading
blows with our CCR1009.
The best part? This brand new CCR is among the most affordable options out
there – not only within the CCR series, but on the market in general. One of
the most common ways to use this device would be: Gigabit Ethernet ports for
the internal network; SFP+ ports for downlink and uplink. The perfect
all-in-one solution for small and medium-sized businesses. Easy and
efficient.
With the new CCR2004, you can take your office network to the next level.
Without breaking the bank.
Send purchase questions
Specifications
Support & Downloads
Gallery
Test results
Specifications
Details
Product code CCR2004-16G-2S+PC
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1200 MHz
Switch chip model 88E6191
Dimensions 272 x 195 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $465.00
Powering
Details

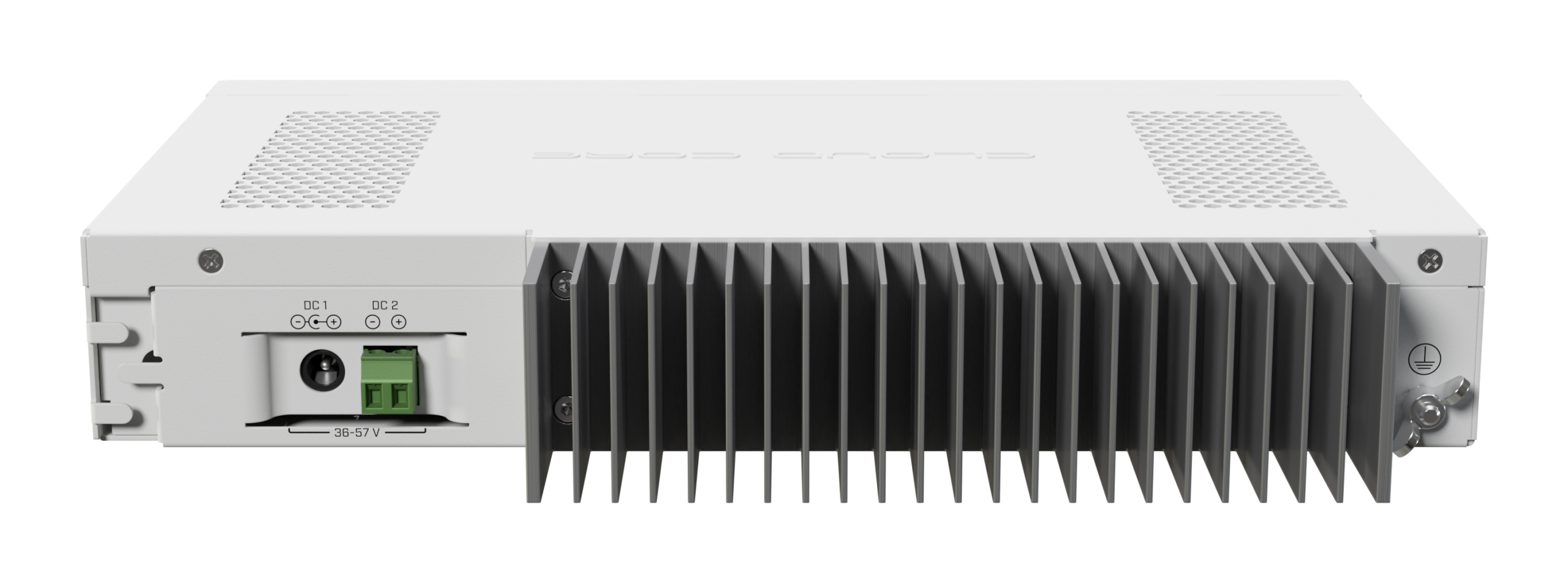

Number of DC inputs 2 (DC jack, 2-pin terminal)
DC jack input Voltage 36-57 V
2-pin terminal input Voltage 36-57 V
Max power consumption 36 W
Max power consumption without attachments 30 W
Cooling type Passive
Ethernet
Details
10/100/1000 Ethernet ports 16
Fiber
Details
SFP+ ports 2
Peripherals
Details
Serial console port RJ45
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP 20
Included parts
Ears
48 V 0.95 A power adapter
K-83
The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes free
software updates for the life of the product or a minimum of 5 years starting
from date of purchase..
