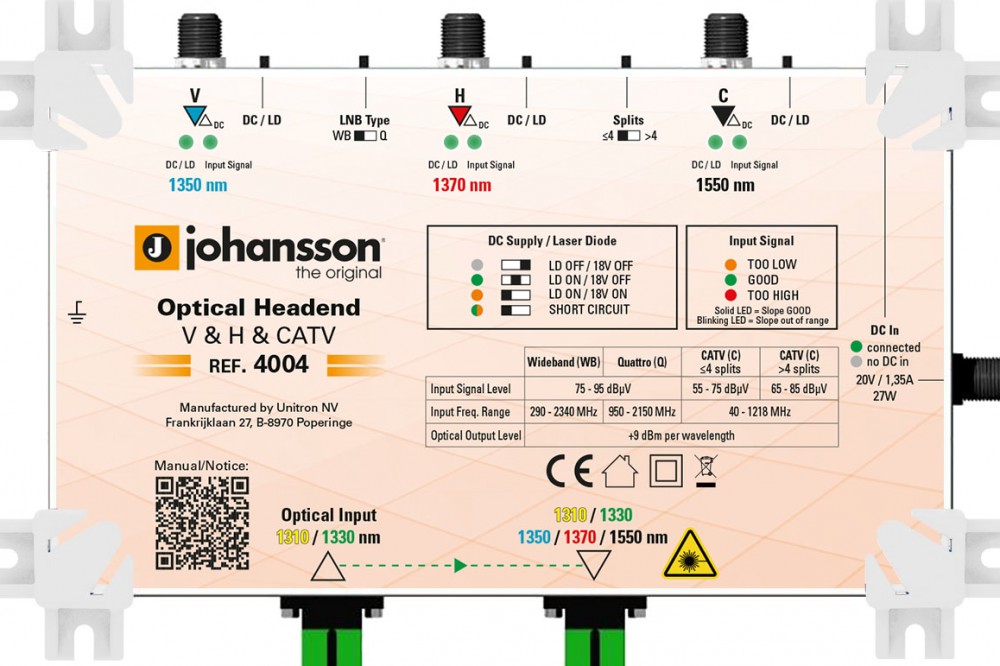

Johansson. 4004 – Optical Headend Transmitter 5 wavelengths
4004 Optical Headend Transmitter 5
wavelengths
Optical Headend Transmitter 2 Wideband and 1 CATV inputs, 1 optical
loopthrough input (1310-1330nm) and 1 optical output with wavelengths
(1310-1330-1350-1370-1550nm) + AGC & ASC
The 4004 Optical Compact Headend converts Wideband V/H, CATV to 1350 –
1370-1550nm optical wavelength in combination with 1310-1330nm from
REF.4002
2 Wideband & 1 CATV inputs
1 Optical loopthrough for 1310-1330nm (from REF.4002)
SAT: 290 – 2340 MHz(Wideband) / 950 – 2150 MHz (Quattro) | CATV: 40 – 1218
MHz
1 Optical output (wavelengths 1310 – 1330-1350-1370-1550nm)
9 dBm output power
Built-in Automatic Gain Control (AGC) and Automatic Slope Control
(ASC)
Back: Ref. 4003
Next: Ref. 4005
