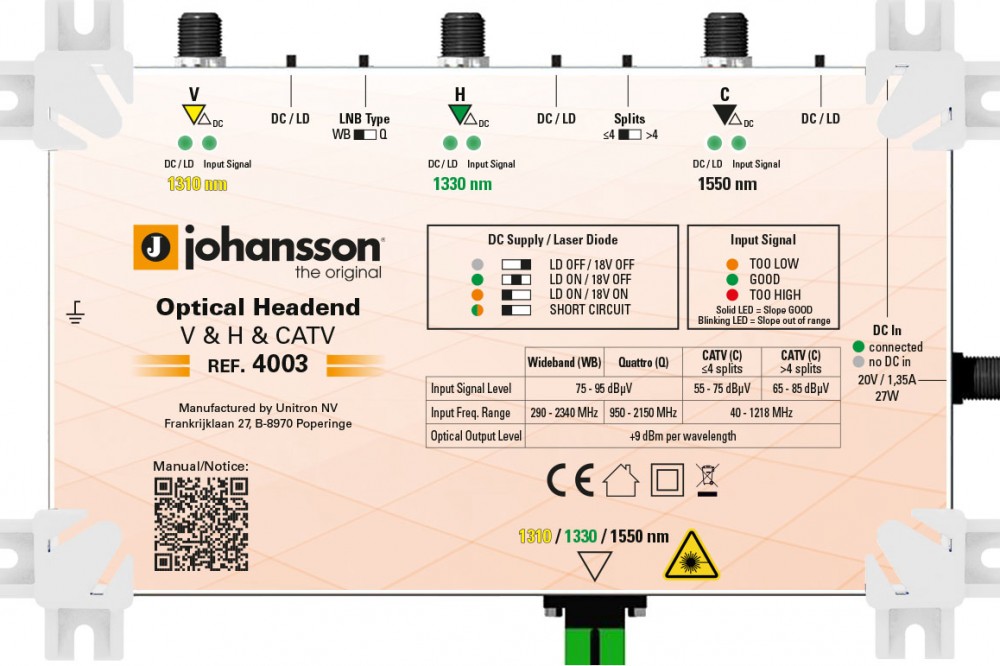

Johansson. 4003 – Optical Headend Transmitter 3 wavelengths

4003 Optical Headend Transmitter 3
wavelengths

Optical Headend Transmitter 2 Wideband and 1 CATV inputs and 1 optical
output with 3 wavelengths (1310-1330-1550nm) + AGC & ASC

The 4003 Optical Compact Headend converts Wideband V/H and CATV to 1310 –
1330-1550nm optical wavelength

2 Wideband and 1 CATV inputs
frequency range: SAT: 290 – 2340 (Wideband) / 950 – 2150 (Quattro) | CATV:
40 – 1218
1 Optical output (wavelengths 1310 – 1330-1550nm)
9 dBm output power
Built-in Automatic Gain Control (AGC) and Automatic Slope Control
(ASC)
