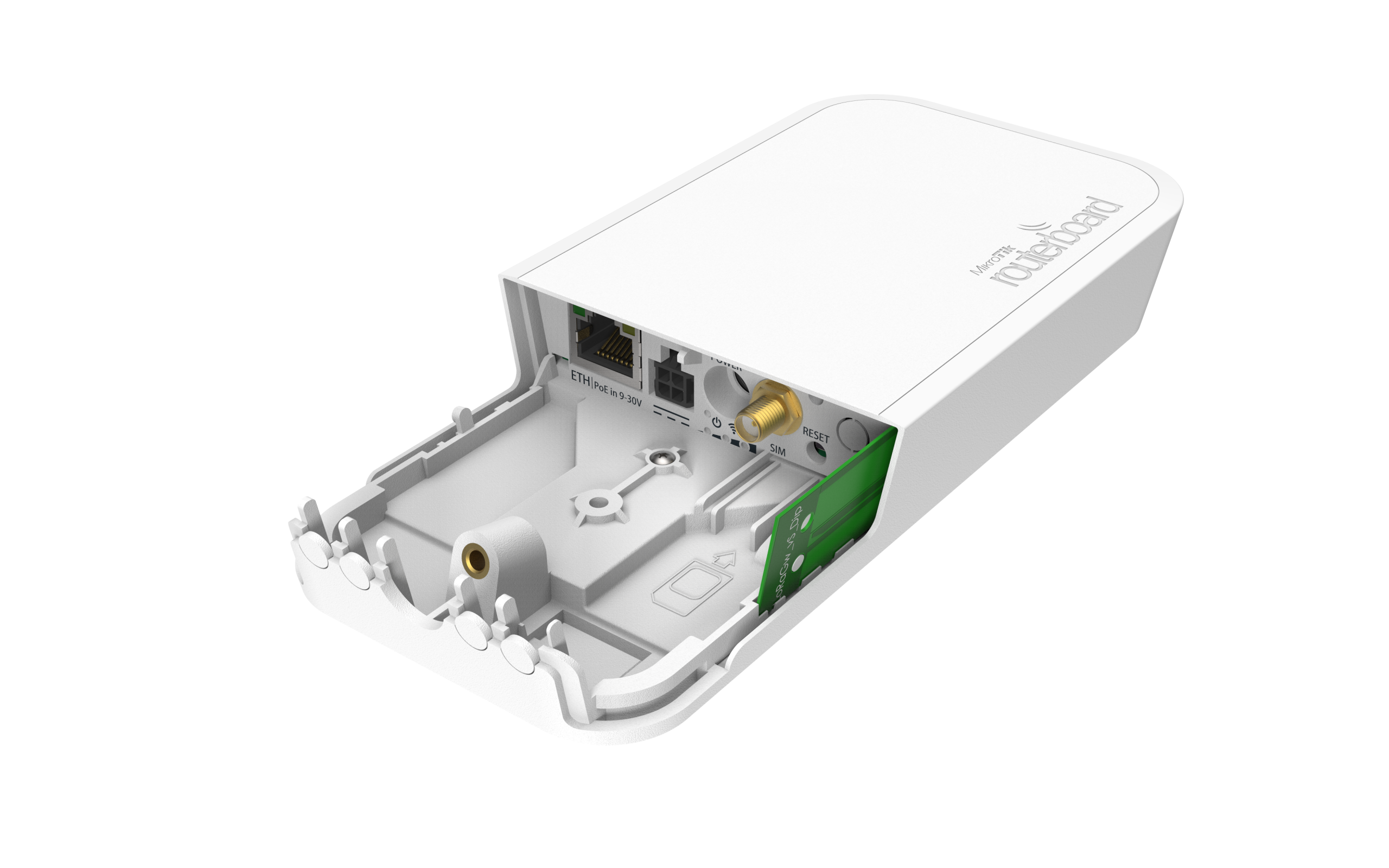

MikroTik  wAP LR8 kit Kenya | +254100720022

wAP LR8 kit – an out-of-the-box solution
to use LoRa® technology. This kit contains a pre-installed UDP packet
forwarder to any public or private LoRa® servers and an outdoor weatherproof
wireless access point with 2.4 GHz WLAN interface and Ethernet port that
could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik
products – it can deliver excellent and stable performance in almost any
weather conditions.

You can use the optional internal 2 dBi antenna or attach an external
antenna. For extra network coverage we suggest adding MikroTik Antenna kit
for LoRa®.

wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia,
India etc.

Functional and non-intrusive design, astonishing durability and great value
– that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for
enthusiasts of any level.

*) the device has no built in LTE modem, the SIM slot can only be used, if
LoRa interface card is removed and replaced by an LTE modem

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RBwAPR-2nD&R11e-LR8
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $169.00
Powering
Details
Number of DC inputs 3 (PoE-IN, DC jack, Automotive)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP 54
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
Included parts

24V 0.8A power adapter

PoE injector

0.35m 4pin Automotive adapter cable

wAP desktop stand

wAP ceiling mount bracket

Metal ring (one)

K-52 fastening set

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
