As a network administrator, you never
know when the next windstorm, lightning, flood, heatwave, or a power outage
will strike. But with the right tools you can protect your network from most
troubles! Here’s our wishlist for the perfect tool:

easy to deploy
works well in ANY weather
provides extensive power redundancy
can be connected via most common networking interfaces
has a CPU that is strong enough to take full advantage of the most
powerful
networking software in the world – RouterOS v7
doesn’t cost a fortune

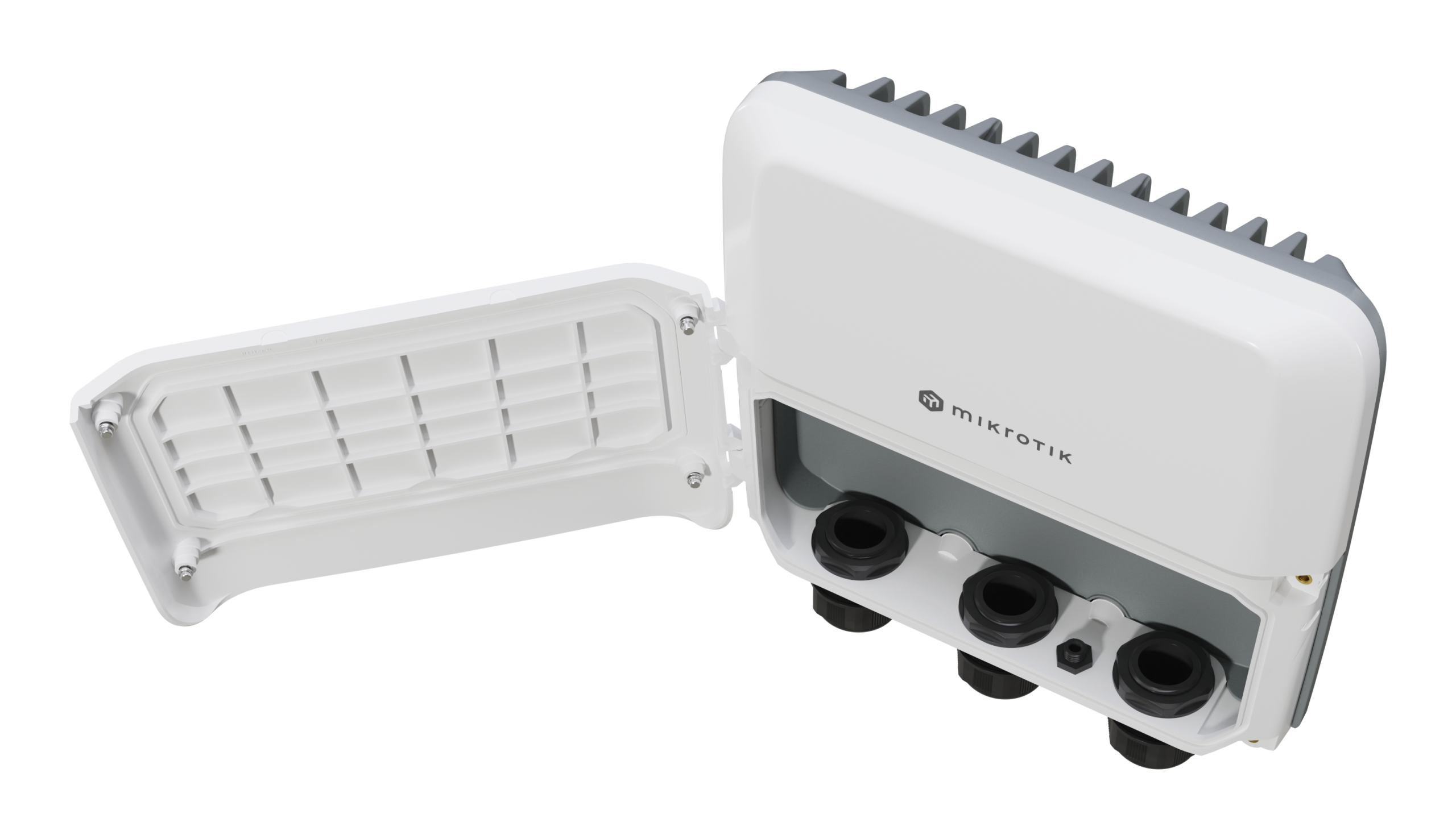

Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us
to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact,
cost-effective solution that will revolutionize your network tower setups.
You’re getting one of the most powerful outdoor networking devices for the
best price on the market!

Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5
Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!

When we say “extensive power redundancy”, we really mean it: the unit
offers 9 possible ways of powering. There’s a 2-pin power connector on the
front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board
can use any of these sources to power itself, choosing the one with the
highest voltage when multiple sources are available. RB5009 takes up to 21W
to power itself. If you’re using PoE-in, the board will stay on even if 8 of
your 9 power sources suddenly go down. Unprecedented redundancy!

All power options support a wide voltage range of 24 – 57 V. However, you
can not mix the voltages.

Each PoE-out port can supply up to 25W of power. All the ports combined are
limited to 130W, which should be enough for most setups. You can specify
maximum available power from your power sources manually, if necessary. If
you’re using PoE-out to power other devices, you have to provide power via
the 2-pin connector to power those.

This product also features single voltage PoE-out – it can either be
802.3at/af compatible OR low-voltage PoE-out. That is determined by the
voltage on the 2-pin connector, as no voltage conversion is done on this
board.

When it comes to processing power and available use-cases, this router can
do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS
Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging,
and so much more!

The RB5009 series keep redefining affordable reliability for small, medium,
and even large ISPs!

  Send purchase questions
 Specifications
 Support & Downloads
 Gallery
 Test results
Specifications
Details
Product code RB5009UPr+S+OUT
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $319.00
Powering
Details
Number of DC inputs 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
PoE-out
Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 620 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 120
Ethernet
Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with PoE-out 1
Fiber
Details
SFP+ ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 66
Included parts

Hose clamp 1

K-41 fastening set

K-85 fastening set

The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
