MikroTik DISC Lite5 Kenya | +254100720022
Dual chain 21dBi 5GHz CPE/Point-to-Point
Integrated Antenna, 600Mhz CPU, 64MB RAM
…………….
MikroTik provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems
ORDER NOW!! +254100720022 / +254720548999

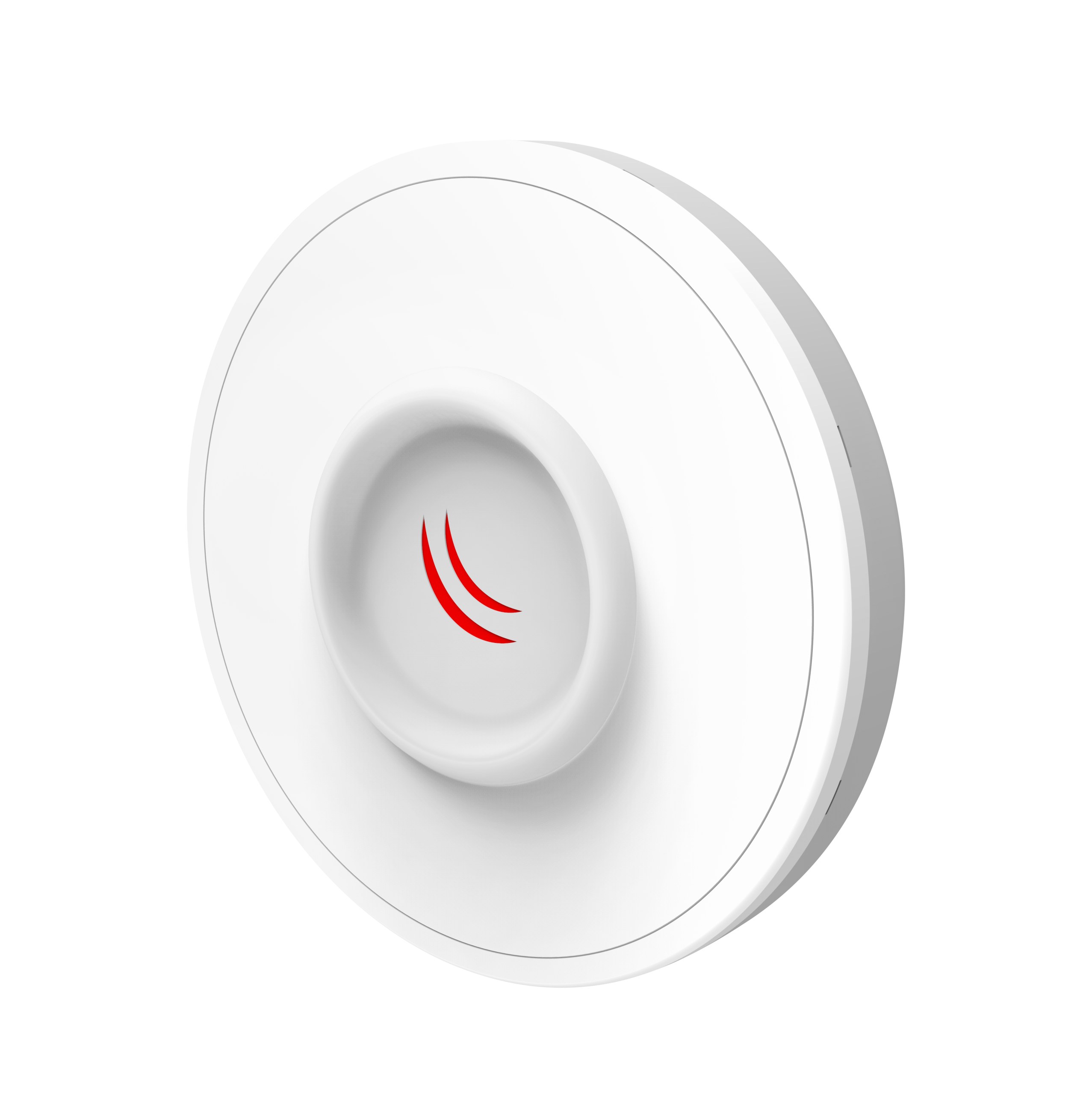

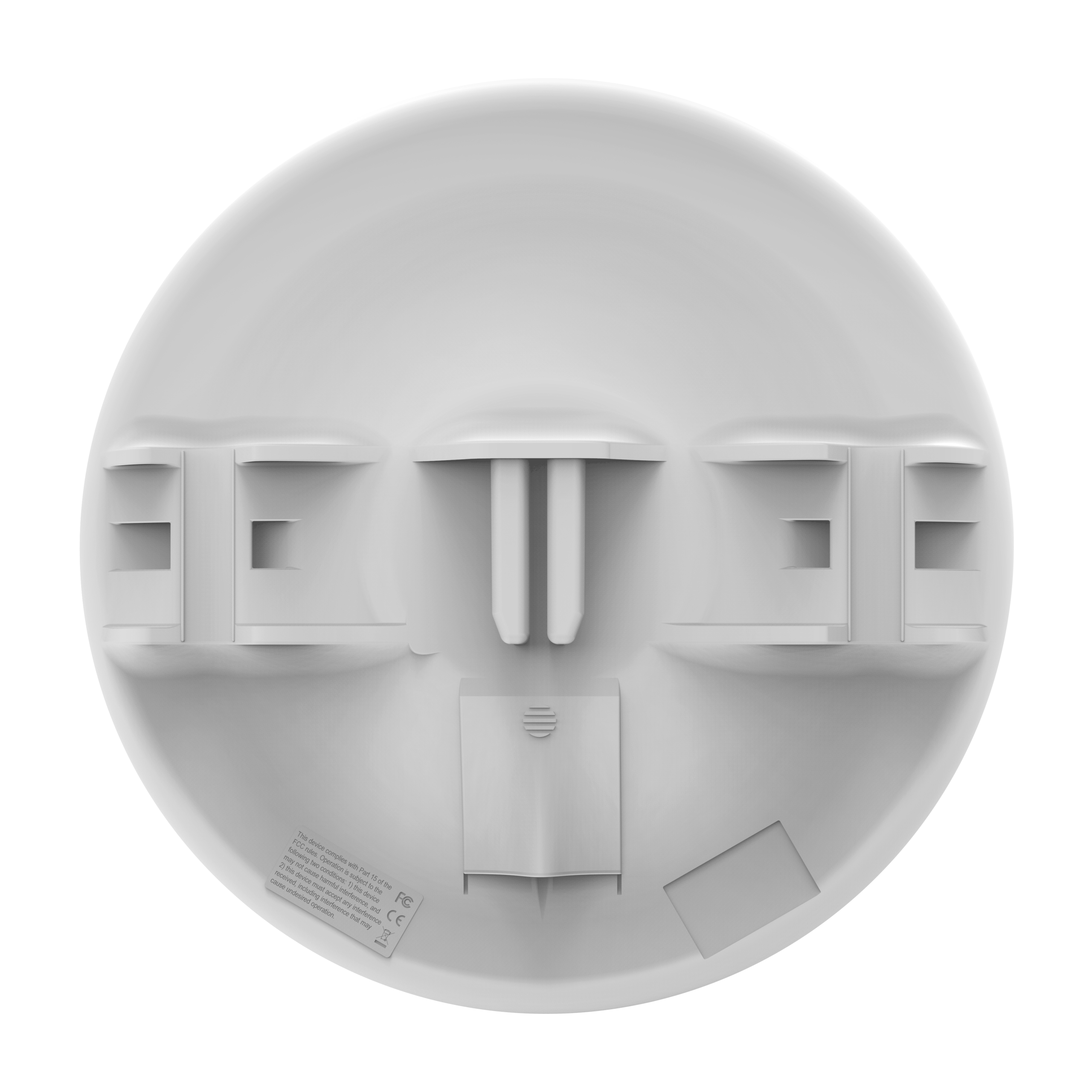

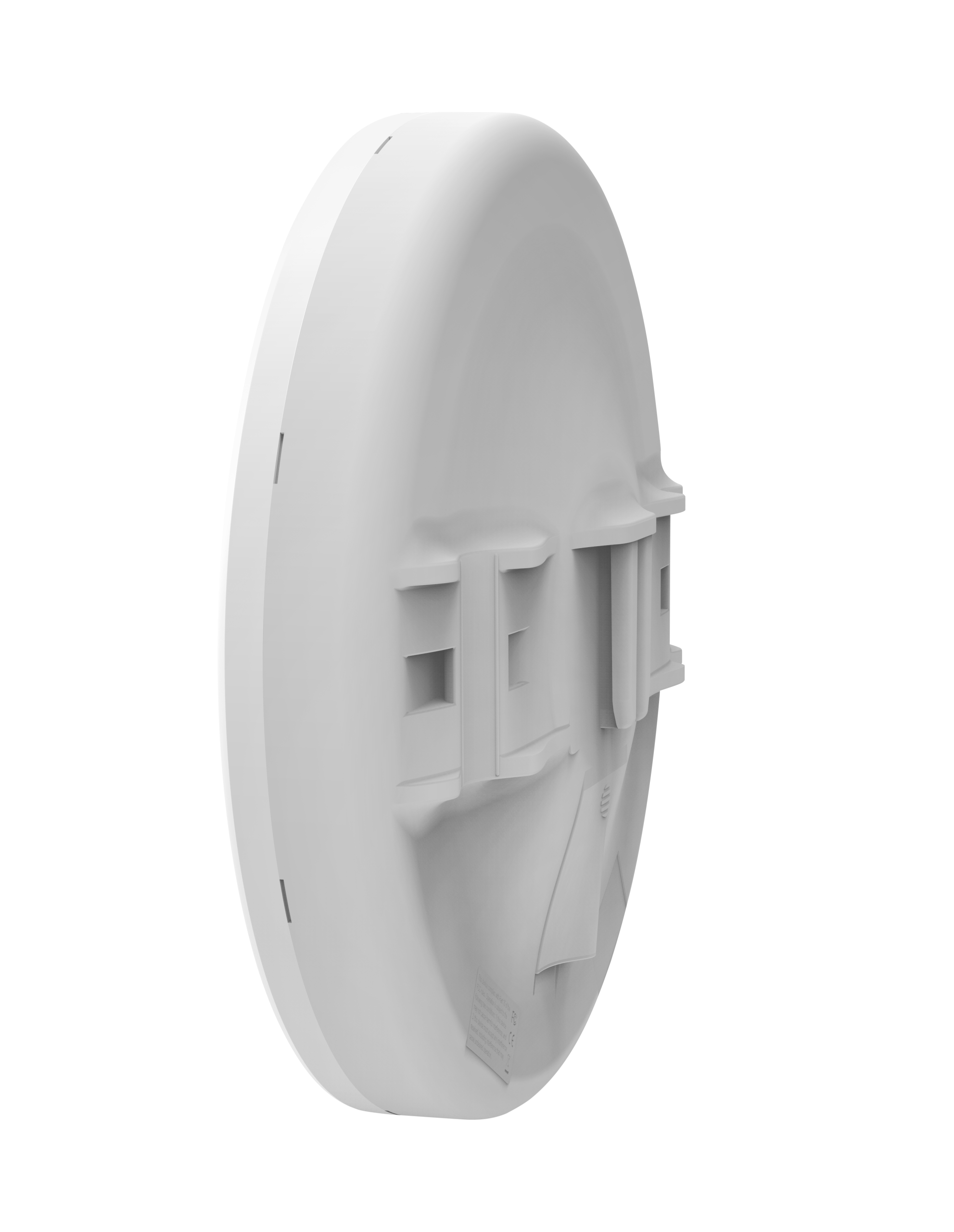

DISC Lite5 is an integrated 21dBi Dual
Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port
and RouterOS L3 installed. The DISC uses a backfire type antenna which allows
to reach 21dBi gain in such a low cost and compact package.
The device comes complete with a power supply, PoE injector and mounting
kit for a ultra low cost at $48!
The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point
5GHz links.
We have two versions available.
– DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz
frequencies. This lock can not be removed.
– DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific
frequency range can be limited by country regulations).
Send purchase questions
Specifications
Support & Downloads
Gallery
Test results
Specifications
Details
Product code RBDisc-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions ⌀ 265mm, height: 80mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $55.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 21
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75
Included parts
24V 0.38A power adapter
Metal ring (one)
PoE injector
The device has an operating system preinstalled and licensed. No separate
purchase is necessary and the product is ready to use. The device includes
free software updates for the life of the product or a minimum of 5 years
starting from date of purchase..
